FSTE-HD G1/8-AG 15 VG
Číslo dílu.: 10.01.02.00872
Spring plunger with damping and height compensation, heavy-duty
| Suction cup connection | G1/8"-M |
| Vacuum connection | G1/8"-F |
| Spring stroke Z | 15 (mm) |
| Shape mounting elements | with anti-rotation guard |
| Tightening torque (max) | 40 (Nm) |

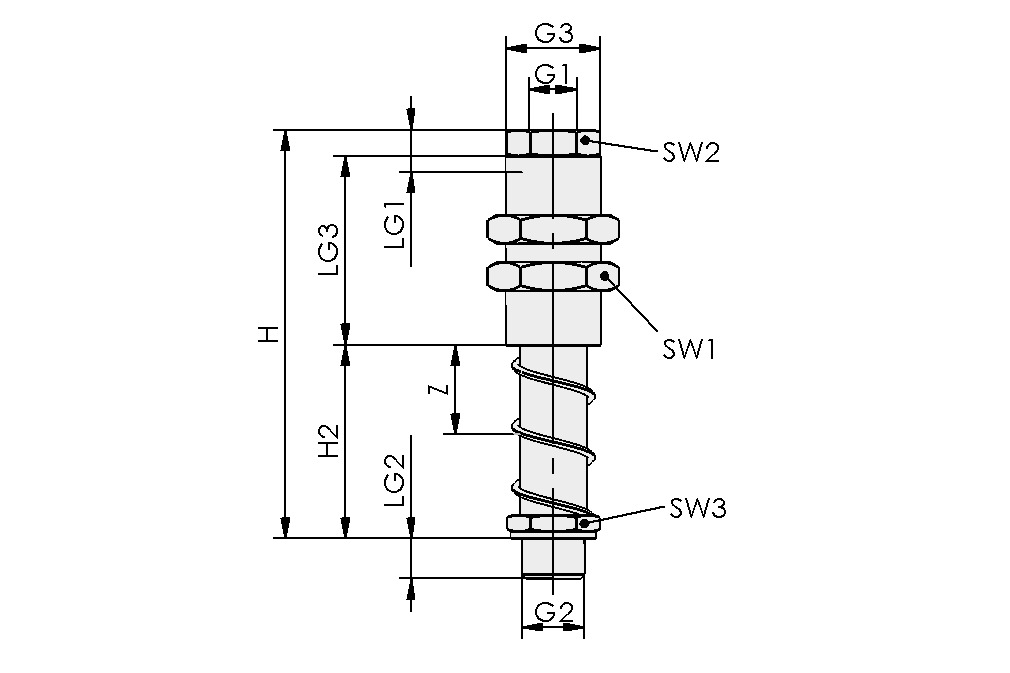

Údaje o konstrukci
Údaje o konstrukci
| Atribut | Wert |
|---|---|
| G1 | G1/8"-F |
| G2 | G1/8"-M |
| G3 | M16x1-M |
| H | 72,5 mm |
| H2 | 28,5 mm |
| LG1 | 8 mm |
| LG2 | 7,5 mm |
| LG3 | 30 mm |
| SW1 | 22 mm |
| SW2 | 12 mm |
| SW3 | 14 mm |
| Z (Stroke) | 15 mm |
Technické údaje
Technické údaje
| Atribut | Wert |
|---|---|
| Spring rate | 0,22 N/mm |
| Spring pretension | 3,53 N |
| Spring force center | 5,19 N |
| Vertical load | 3 700 N |
| Horizontal load | 385 N |
| Tightening torque (max) | 40 Nm |
| Weight | 80 g |
| Operating temperature | 0 ... 80 °C |
| Product family | FSTE-HD |
Data CAD
Data CAD
Snadné použití modelu CAD Live
Po kliknutí na tlačítko Stáhnout si můžete stáhnout model CAD v různých souborových formátech. Pokud se náhled na této stránce nezobrazuje správně, klikněte na tlačítko "Znovu načíst".
Dokumentace
Dokumentace
Příslušenství
KGL G1/8-IG G1/8-AG A210.01.03.00109Suction cup mounting with joint for
adaptation to sloping surfaces
| Thread G1 | G1/8"-F |
| Thread G2 | G1/8"-M |
| Height H | 26.5 (mm) |
| Material | Austenitic stainless steel |
HTR-STA 47 1N D10/16 FL10.08.03.00085Holder for flexible mounting of
suction cups/spring plungers on
sections
| Length L | 47 (mm) |
| Connection 1 | Sliding block |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | flat |
HTR-STS 30x30 D10/16 WI10.08.03.00088Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 30x30 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
HTR-STS 40x40 D10/16 WI10.08.03.00089Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 40x40 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
ST G1/8-AG 4 MS-ROH10.08.03.00153Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 4 (mm) |
| Material | Brass |
| Surface | raw |
| Length L | 4 (mm) |
| Nominal diameter dn | 2.5 (mm) |
ST G1/8-AG 6 MS-V10.08.03.00154Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 6 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4.4 (mm) |
ST G1/8-AG 9 MS-V10.08.03.00155Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4 (mm) |
STV-GE G1/8-AG 410.08.02.00202Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 7.9 (mm) |
| Length L | 13.7 (mm) |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
STV-GE G1/8-AG 810.08.02.00206Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Outside diameter D | 14 (mm) |
| Length L | 20.7 (mm) |
STV-W G1/8-AG 410.08.02.00156Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 16.4 (mm) |
STV-W G1/8-AG 610.08.02.00158Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 20.1 (mm) |
STV-W G1/8-AG 810.08.02.00160Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 24 (mm) |
STV-GE G1/8-AG 6 HT10.08.02.00389Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Outside diameter D | 11.6 (mm) |
| Length L | 19 (mm) |
STV-W G1/8-AG 610.08.02.00288Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Plastics |
| Operating temperature | °C |
| Length L | 20.8 (mm) |
STV-W G1/8-AG 6 HT10.08.02.00391Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Length L | 22.5 (mm) |
STV-WF G1/8-AG 410.08.02.00166Push-in Fitting, swivelling
and lockable
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 17.4 (mm) |
STV-WF G1/8-AG 610.08.02.00168Push-in Fitting, swivelling
and lockable
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 21.4 (mm) |
STV-WF G1/8-AG 810.08.02.00170Push-in Fitting, swivelling
and lockable
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 23.4 (mm) |
STV-WF G1/8-AG 1010.08.02.00257Push-in Fitting, swivelling
and lockable
| Thread G1 | G1/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 25.2 (mm) |
STV-T G1/8-AG 410.09.02.00039Push-in Fitting, T
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 32.5 (mm) |
STV-T G1/8-AG 610.09.02.00040Push-in Fitting, T
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 41.5 (mm) |
STV-T G1/8-AG 810.09.02.00041Push-in Fitting, T
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 48.7 (mm) |
