Sack Grippers PSSG-M

Suction area (Ø) from 290 x 215 mm to 405 x 305 mm
Přejděte přímo na produkty

Reliable handling of bags of different materials and geometries

Innovative sealing element ensures a longer service life than conventional foam rubber solutions

Modular design for low weight and easy maintenance of the sealing element

Direct, easy access to device data via smartphone via NFC interface

Nadstavba
  • The module (0) for the gripper connection to the robot is available in a rigid version or with floating attachment (height compensation)
  • Hose connection (straight/angled) for the connector of an external vacuum generator or choice of integrated vacuum generation using SEP nozzles (1)
  • Lightweight sack gripper housing made of glass fiber reinforced plastics (2)
  • Innovative sealing element (3) made of FDA-compliant silicone or wear-resistant NBR
  • Filter fleece (4) protects the system from contamination
Technické údaje
  • Sack gripper with external vacuum generation
  • Dimensions: 290 x 215 mm to 405 x 305 mm
  • Material: NBR, SI
Dokumentace

V této části naleznete odpovídající dokumentaci k tomuto výrobku.

DokumentyJazyk
Česky

Dokumentace je plně k dispozici také v angličtině.

DokumentyJazyk
Angličtina

Výsledky filtrování

Material
Lift capacity (horizontal)
Dimension (LxW)
Suction cup width Bs
Ls
Označování
Industry sector

1 - 8 z 8 výsledků

  • NOVÝ
PSSG M 290x215 NBR-60 M6-IG

Číslo dílu.: 10.01.54.00031

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls290 (mm)
Suction cup width Bs215 (mm)
Height H30 (mm)
Material hardness [Shore A]60 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ

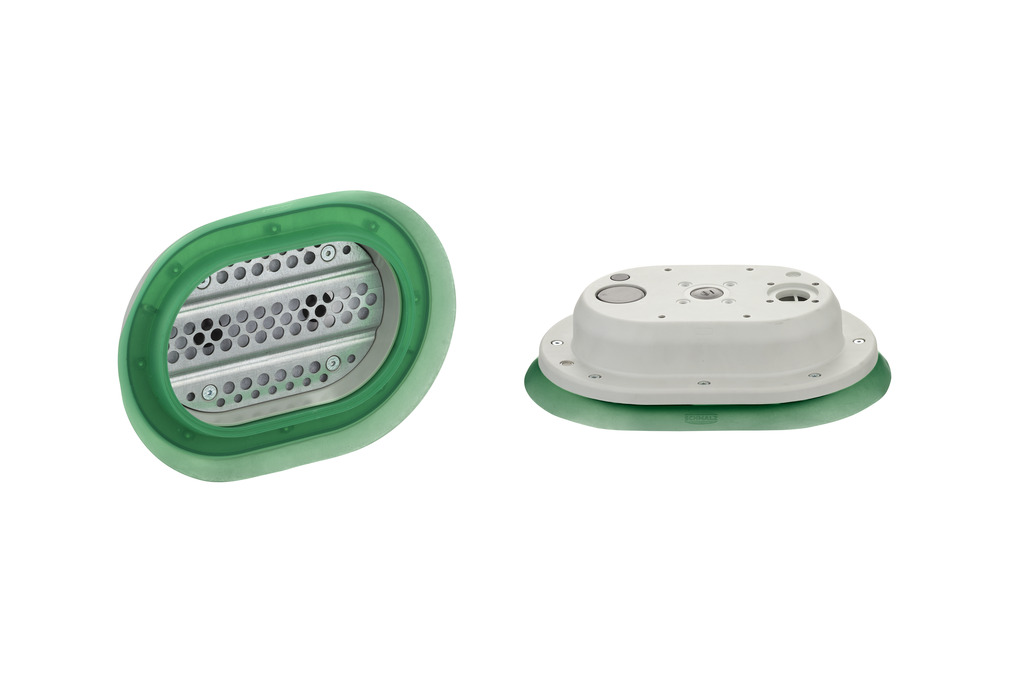

PSSG M 290x215 SI-55 M6-IG

Číslo dílu.: 10.01.54.00032

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls290 (mm)
Suction cup width Bs215 (mm)
Height H30 (mm)
Material hardness [Shore A]55 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ
PSSG M 350x250 NBR-60 M6-IG

Číslo dílu.: 10.01.54.00035

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls350 (mm)
Suction cup width Bs250 (mm)
Height H38 (mm)
Material hardness [Shore A]60 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ
PSSG M 350x250 SI-55 M6-IG

Číslo dílu.: 10.01.54.00036

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls350 (mm)
Suction cup width Bs250 (mm)
Height H38 (mm)
Material hardness [Shore A]55 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ
PSSG M 350x250 SI-55 M6-IG 2P

Číslo dílu.: 10.01.54.00112

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls350 (mm)
Suction cup width Bs250 (mm)
Height H38 (mm)
Material hardness [Shore A]55 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ
PSSG M 405x305 NBR-60 M6-IG

Číslo dílu.: 10.01.54.00005

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls405 (mm)
Suction cup width Bs305 (mm)
Height H45 (mm)
Material hardness [Shore A]60 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ

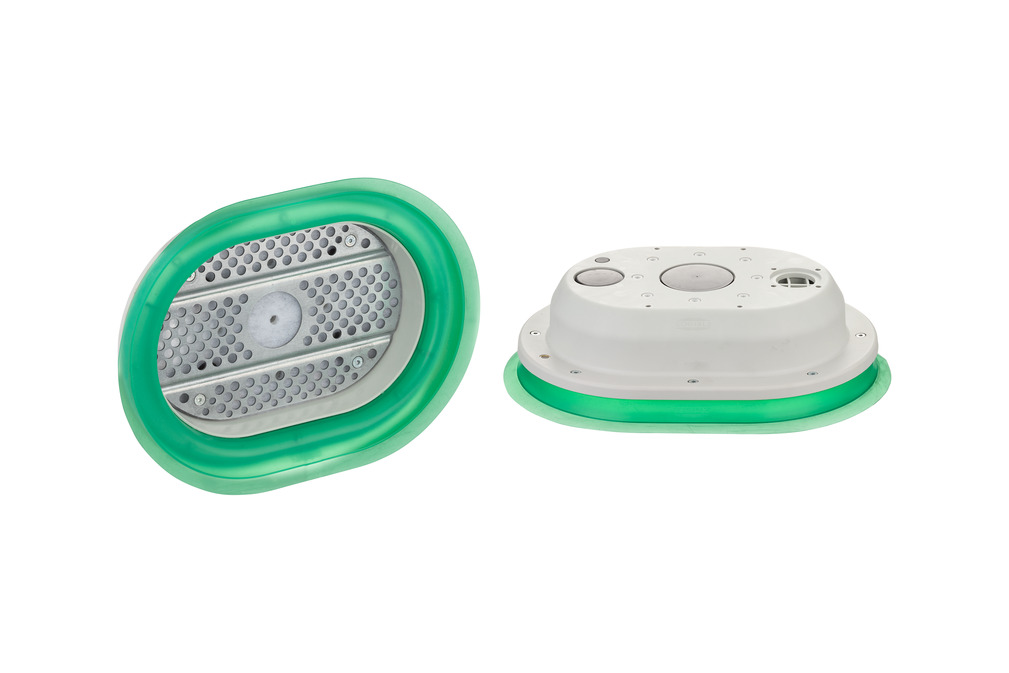

PSSG M 405x305 SI-55 M6-IG

Číslo dílu.: 10.01.54.00006

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls405 (mm)
Suction cup width Bs305 (mm)
Height H45 (mm)
Material hardness [Shore A]55 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
  • NOVÝ
PSSG M 405x305 SI-55 M6-IG 2P

Číslo dílu.: 10.01.54.00113

Gripper for the handling of paper, fabric and plastic bags

ShapeExternal vacuum generation
Ls405 (mm)
Suction cup width Bs305 (mm)
Height H45 (mm)
Material hardness [Shore A]55 (Shore A)
Additional function suction cupNFC-TAG
Thread G4M6-F
