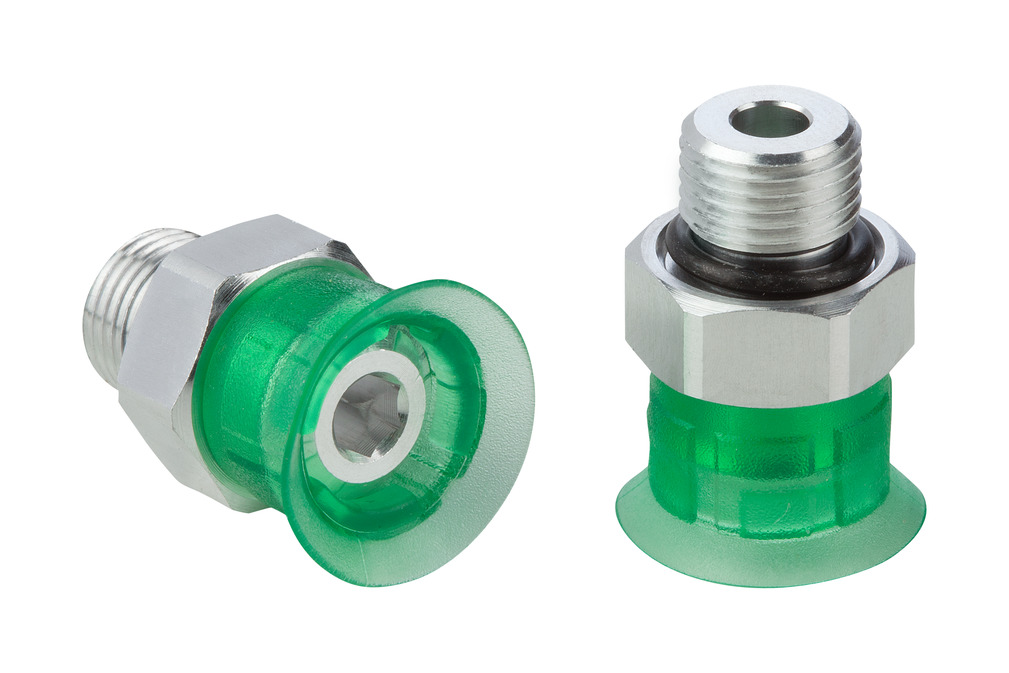

SPF 10 ED-65 M5-AG
Číslo dílu.: 10.01.01.13237
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 10 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | M5-M |
Adaptable sealing lip provides optimum sealing on cardboard boxes and rigid packaging
High intrinsic stability of the suction cup in dynamic processes
High suction forces due to support ribs on the suction area for a maximized effective diameter
Material Elastodur ED-65 minimizes wear (service life approx. 3 times higher than with NBR)
Nadstavba
Nadstavba
- Round flat suction cup SPF (2) with soft, flexible sealing lip and supporting studs on the suction surface
- Made of wear-proof material Elastodur ED-65
- Models with diameter up to 30 mm feature plug-in connection element for quick change of suction cup
- Starting at 40 mm diameter with a 2-piece connection element: consisting of machine-side component (1) and suction-side component (3)
- Clip-in filter screen (4) as pre-filter (filter pore size 250 µm)
Technické údaje
Technické údaje
- Diameter: 10 mm to 60 mm
- Material: ED
- Connection element modular
Dokumentace
Dokumentace
V této části naleznete odpovídající dokumentaci k tomuto výrobku.
| Dokumenty | Jazyk |
|---|---|
| Česky |
Dokumentace je plně k dispozici také v angličtině.
| Dokumenty | Jazyk |
|---|---|
| Angličtina |
1 - 10 z 16 výsledků
SPF 10 ED-65 M5-IG
Číslo dílu.: 10.01.01.13254
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 10 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | M5-F |
SPF 15 ED-65 G1/8-AG
Číslo dílu.: 10.01.01.13238
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 15 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
SPF 15 ED-65 G1/8-IG
Číslo dílu.: 10.01.01.13239
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 15 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-F |
SPF 20 ED-65 G1/8-AG
Číslo dílu.: 10.01.01.13240
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
SPF 20 ED-65 G1/8-IG
Číslo dílu.: 10.01.01.13241
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-F |
SPF 25 ED-65 G1/8-AG
Číslo dílu.: 10.01.01.13242
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 25 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
SPF 25 ED-65 G1/8-IG
Číslo dílu.: 10.01.01.13243
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 25 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-F |
SPF 30 ED-65 G1/8-AG
Číslo dílu.: 10.01.01.13244
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 30 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
SPF 30 ED-65 G1/8-IG
Číslo dílu.: 10.01.01.13245
Flat suction cup (round) for dynamic handling of cardboard and rigid packaging
| Size | 30 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-F |
