EVE-TR 25 AC3
Part no.: 10.03.01.00141
Oil-free pump with constant suction rate, robust, requires little maintenance
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 62 (dB(A)) |
| Voltage 60 Hz | S028 |
| Voltage at 60 Hz | 190 - 290 V / 330 - 500 V AC3 |
| Suction rate (50 Hz) | 25 (m³/h) |
| Suction rate (60 Hz) | 30 (m³/h) |
| Vacuum (50 Hz) | -850 (mbar) |
| Rated power at 50 Hz | 0.75 (kW) |
| Rated power at 60 Hz | 0.9 (kW) |
| Weight | 26 (kg) |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 260 mm |
| B2 | 40 mm |
| d | 7 mm |
| G3 | G3/4"-F |
| H | 290 mm |
| L | 505 mm |
| L2 | 96 mm |
| X1 | 220 mm |
| Y1 | 208 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 25 m³/h |
| Suction rate (60 Hz) | 30 m³/h |
| Voltage at 60 Hz | 190 - 290 V / 330 - 500 V AC3 |
| Rated power at 50 Hz | 0.75 kW |
| Rated power at 60 Hz | 0.9 kW |
| Supply voltage | AC3 |
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 62 dB(A) |
| Weight | 26 kg |
| Protection type IP | IP 55 |
| Product family | EVE-TR |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
FILT-EINS 3 65x70 PAP STF-3/4-IG10.07.01.00017Filter insert (round)
| Filter pore size | 3 (µm) |
| Outside diameter D | 65 (mm) |
| Length L | 69.5 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 3/4-IG |
FILT-EINS 64x71 PAP EVE-TR-25-40-5010.03.01.00029Filter insert (round)
| Utilization design | Pump EVE-TR |
| Size | 25-40-50 |
Accessories
VBV -950...0 G1-AG EVE 10-4010.03.01.00136Vacuum valve for limiting
the maximum vacuum pressure
| Outside diameter D | 46 (mm) |
| Max. vacuum | -950 (mbar) |
| Thread G1 | G1"-M |
| Length L | 53.5 (mm) |
| Utilization design | Pump EVE |
| Size | 10-40 |

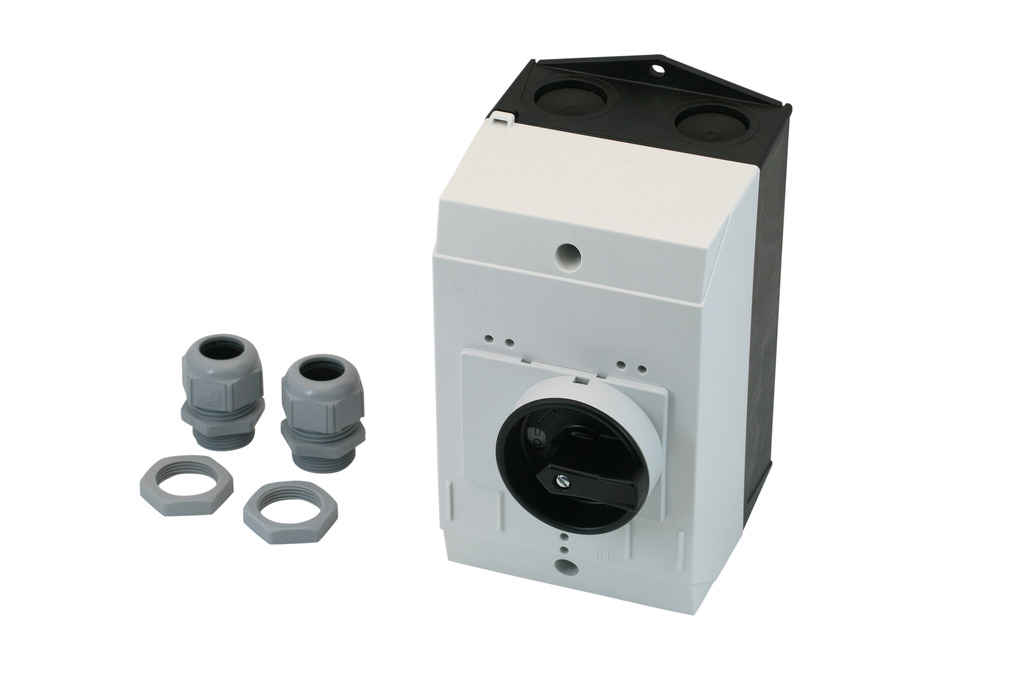

MSS-K 1.6-2.5A10.04.04.00119Motor-protection switch with housing
| Utilization design | PKZM0 |
| Color | grey |
| Protection type IP | IP 65 |
| Measuring range [bar] | bar |
VST EVE-TR-2510.03.01.00134Set of parts subject to wear pump
| Utilization design | Pump EVE-TR |
| Size | 25 |
| contains | Brush slide |
| and | Filter |
VOL 5010.03.03.00118Vacuum reservoir
| Reservoir volume | 50 (l) |
| Height H | 235 (mm) |
| Additional function vacuum reservoir | Gauge, non-return valve, filter |
SBB-EVE-24V-DC-ST-VZ-LUE10.04.04.00367Silencer box for reduction of the
noise level
| Material | Steel |
| Surface | galvanised |
| with | Ventilator |
| Length L | 809 (mm) |
| Width B | 385 (mm) |
| Height H | 378 (mm) |
