SGM-HD 30 G1/8-IG
Part no.: 10.01.17.00184
Magnetic gripper for handling metal sheets with holes, Stainless-steel housing base
| Size | 30 |
| Socket | G1/8"-F |
| Holding force max. with friction ring | 35 (N) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |

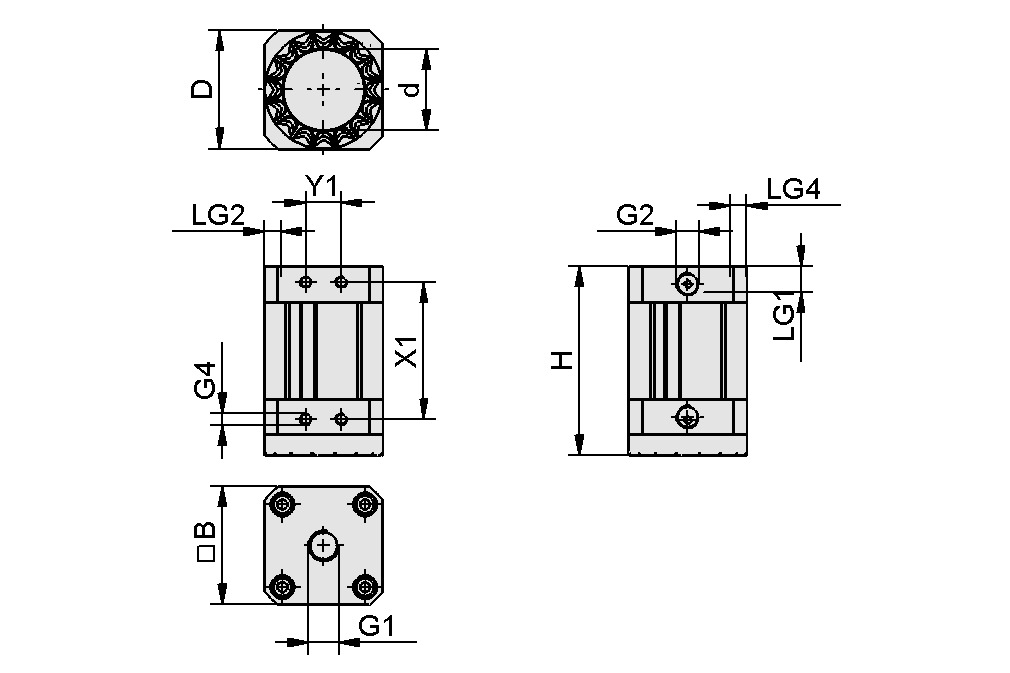

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 30.1 mm |
| D | 29.5 mm |
| d | 16.5 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G4 | M4-F |
| H | 70.2 mm |
| LG1 | 7 mm |
| LG2 | 6 mm |
| LG4 | 5 mm |
| X1 | 46 mm |
| Y1 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Holding force max. with friction ring | 35 N |
| Remaining holding force | 0.3 N |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Installation position | BEL |
| Control valve | Bistable |
| Operating temperature | 5 ... 70 °C |
| Weight | 191 g |
| Product family | SGM |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
REIB-RING SGM 30 PU-5510.01.17.00136Friction ring
| Utilization design | Magnetic gripper |
| Size | 30 |
| Outside diameter D | 29.5 (mm) |
| Internal diameter d | 19 (mm) |
Accessories
HTS-A2 SGM 30/40 OP10.01.17.00581Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper |
| Size | 30/40 |
HTS-A3 SGM 30/40 OP10.01.17.00558Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper |
| Size | 30/40 |
HTS-A2 D SGM 30/40 OP10.01.17.00586Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper |
| Size | 30/40 |
| Shape | Double block |
HTS-A3 D SGM 30/40 OP10.01.17.00582Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper |
| Size | 30/40 |
| Shape | Double block |
HPS-SGM 2M6 30/40 OP10.01.17.00655Holder system
| Utilization design | Magnetic gripper |
| Connection 1 | 2x screws M6 |
| Size | 30/40 |
| Shape | One piece |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
STV-W G1/8-AG 610.08.02.00158Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 20.1 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
