SGM-S 70 G1/4-IG PNP
Part no.: 10.01.17.00203
Magnetic gripper for handling metal sheets with holes
| Size | 70 |
| Socket | G1/4"-F |
| Holding force max. with friction ring | 290 (N) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Additional function | Sensor PNP |
| Electrical connection | Male connect M12, 4 pol |

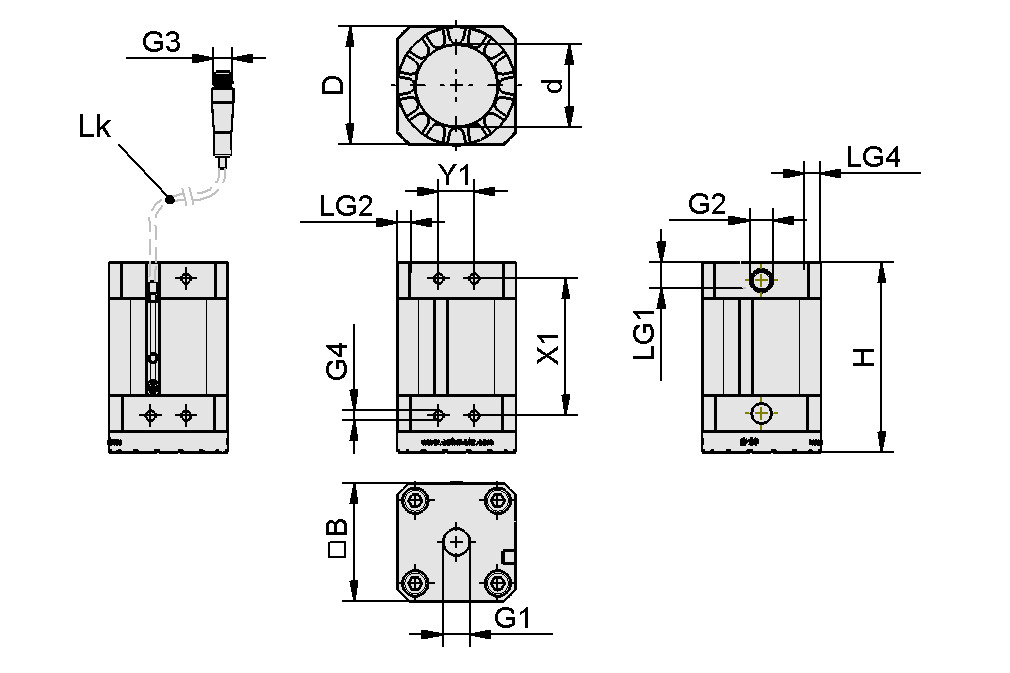

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 68.75 mm |
| D | 68 mm |
| d | 51 mm |
| G1 | G1/4"-F |
| G2 | G1/8"-F |
| G3 | M12x1-M |
| G4 | M5-F |
| H | 80.2 mm |
| LG1 | 11 mm |
| LG2 | 6 mm |
| LG4 | 8 mm |
| Lk | 300 mm |
| X1 | 58 mm |
| Y1 | 15 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Holding force max. with friction ring | 290 N |
| Remaining holding force | 0.3 N |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Installation position | BEL |
| Control valve | Bistable |
| Operating temperature | 5 ... 70 °C |
| Weight | 730 g |
| Product family | SGM |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
REIB-RING SGM 70 PU-5510.01.17.00139Friction ring
| Utilization design | Magnetic gripper |
| Size | 70 |
| Outside diameter D | 68 (mm) |
| Internal diameter d | 51 (mm) |
NAEH-SCHA SMAGN-PNP S051 30010.01.17.00199Proximity switch
| Construction vacuum switch | Magnetic cylinder sensor - PNP |
| Voltage DC | 15- 30 V DC |
| Electrical connection | Male connect M12, 4 pol |
Accessories
HTS-A2 SGM 50/70 OP10.01.17.00578Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper |
| Size | 50/70 |
HTS-A2 D SGM 50/70 OP10.01.17.00587Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper |
| Size | 50/70 |
| Shape | Double block |
HTS-A3 SGM 50/70 OP10.01.17.00576Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper |
| Size | 50/70 |
HTS-A3 D SGM 50/70 OP10.01.17.00583Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper |
| Size | 50/70 |
| Shape | Double block |
HPS-SGM 2M8 50/70 OP10.01.17.00653Holder system
| Utilization design | Magnetic gripper |
| Connection 1 | 2x screws M8 |
| Size | 50/70 |
| Shape | One piece |
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
STV-W G1/8-AG 610.08.02.00158Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 20.1 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
