- EFFICIENT
SGM-HP 30 G1/8-IG
Part no.: 10.01.17.00316
Magnetic gripper for handling metal sheets with holes
| Socket | G1/8"-F |
| Pressure range (operating pressure) [bar] | 2.5 ... 6.0 bar |
| Holding force max. with friction ring | 90 (N) |
| Holding force max. without friction | 130 (N) |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 30.1 mm |
| B2 | 15 mm |
| D | 30 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G4 | M4-F |
| G5 | M4-F |
| H | 99.4 mm |
| H2 | 15.7 mm |
| L2 | 20.5 mm |
| LG1 | 6 mm |
| LG2 | 6 mm |
| LG4 | 5 mm |
| X1 | 74 mm |
| Y1 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Holding force max. without friction | 130 N |
| Holding force max. with friction ring | 90 N |
| Sheet thickness optimum for holding force max. | 2 mm |
| Holding force 2 mm sheet without friction ring | 130 N |
| Holding force 2 mm sheet with friction ring | 90 N |
| Remaining holding force | 0.3 N |
| Pressure range (operating pressure) [bar] | 2.5 ... 6.0 bar |
| Installation position | BEL |
| Control valve | Bistable |
| Operating temperature | 5 ... 70 °C |
| Weight | 215 g |
| Product family | SGM-HP-HT |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts

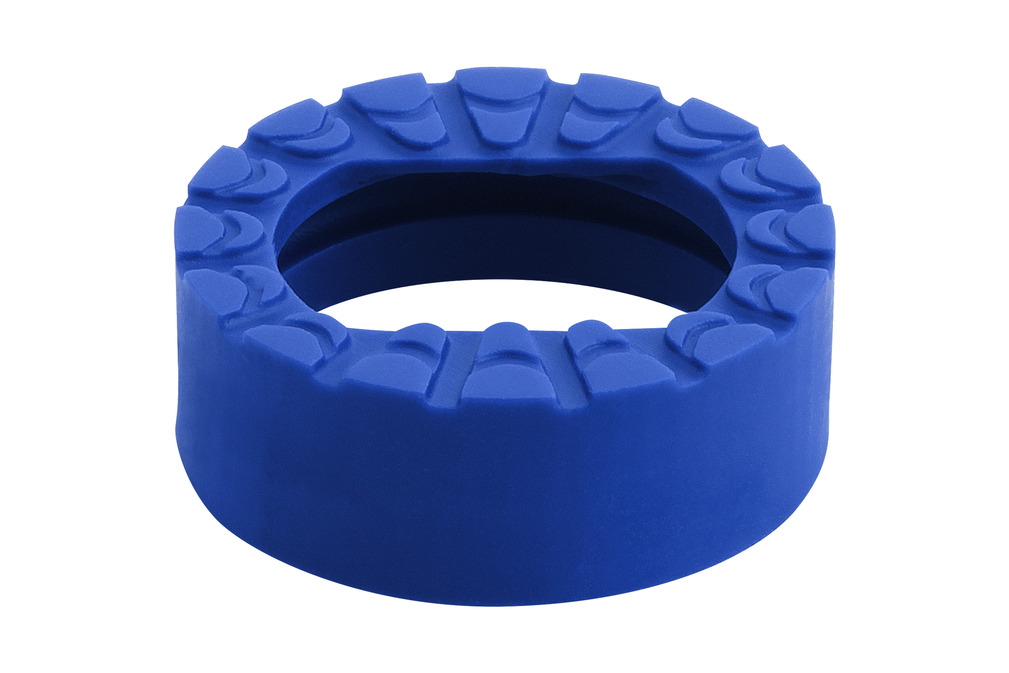

REIB-RING SGM-HP 30 PU-5510.01.17.00385Friction ring
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30 |
| Outside diameter D | 29.5 (mm) |
| Internal diameter d | 20.5 (mm) |
Accessories
HTS-A2 SGM-HP 30/40 OP10.01.17.00567Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
HTS-A3 SGM-HP 30/40 OP10.01.17.00557Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
HTS-A5 SGM-HP 30/40 OP10.01.17.00563Holder system
| Connection 1 | Ball head 32 mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
HPS-SGM-HP 2M8 30/40 OP10.01.17.00651Holder system
| Utilization design | Magnetic gripper SGM-HP |
| Connection 1 | 2x screws M8 |
| Size | 30/40 |
| Shape | One piece |
SCHUTZ SGM-30 ST10.01.17.00522Protection element for gripping
surface for handling hard and rough
workpieces
| Utilization design | Magnetic gripper |
| Size | 30 |
| Material | Steel |
NAEH-SCHA SMAGN-PNP S051 30010.01.17.00199Proximity switch
| Construction vacuum switch | Magnetic cylinder sensor - PNP |
| Voltage DC | 15- 30 V DC |
| Electrical connection | Male connect M12, 4 pol |
NAEH-SCHA SMAGN-NPN S050 30010.01.17.00215Proximity switch
| Construction vacuum switch | Magnetic cylinder sensor - NPN |
| Voltage DC | 12 - 30 V DC |
| Electrical connection | Male connect M12, 4 pol |
ADP-E-TRI 30/40 SET10.01.17.00421Lifting elements for cylindrical
parts
| Size | 3040 |
| Shape | Triangle |
| Workpiece diameter (min.) | 10 (mm) |
| Workpiece diameter (max.) | 20 (mm) |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
STV-W G1/8-AG 610.08.02.00158Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 20.1 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
