VS-V-W-D M8-4 UH IOL
Part no.: 10.06.02.00861
Vacuum/pressure switch in cube shape with display and analog / digital output signals
| Measuring range | -1...0bar |
| Shape | Cube, digital display |
| Type | TFT display |
| Electrical connection | Male connect M8, 4 pole |
| Inputs / outputs | 2 digital |
| Shape manometers | Connection bottom, rear |
| Protection type IP | IP 65 |
| Communication | IO-Link |

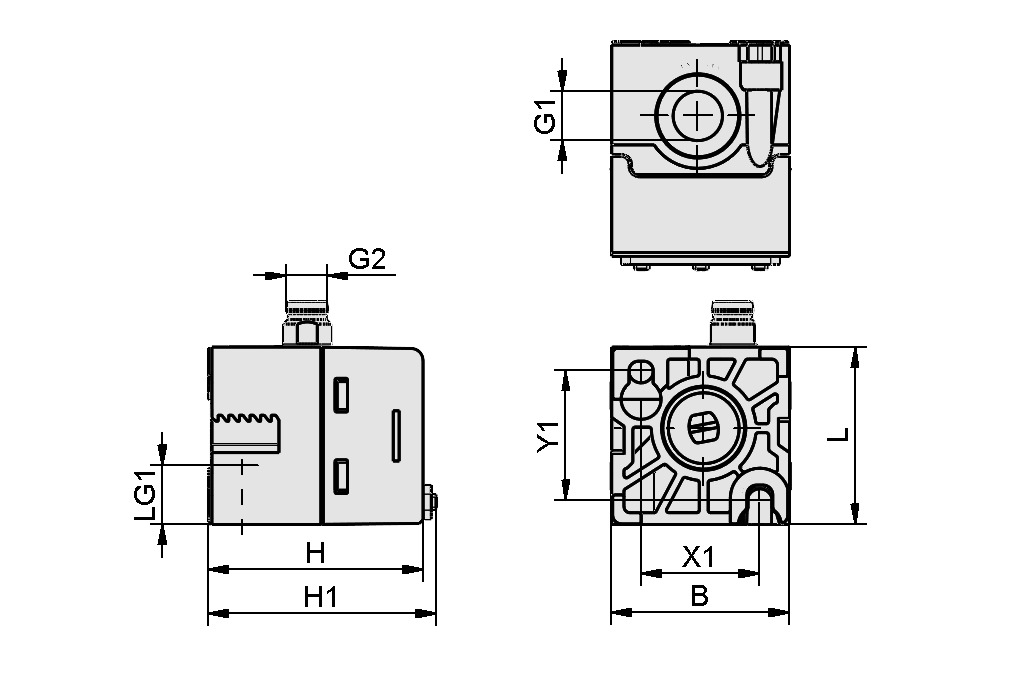

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 30 mm |
| G1 | G1/8"-F |
| G2 | M8x1-M |
| H | 36.4 mm |
| H1 | 38.6 mm |
| L | 30 mm |
| LG1 | 6.8 mm |
| X1 | 20 mm |
| Y1 | 22 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Measured medium | "Non-aggressive gases |
| Measuring range | -1...0bar |
| Hysteresis | Adjustable: 0 to 100% of set value |
| Inputs / outputs | 2 digital |
| Electrical connection | Male connect M8, 4 pole |
| Voltage | 18-30V-DC |
| Control valve | Optional NO / NC |
| Communication | IO-Link |
| Protection type IP | IP 65 |
| Operating temperature | 0 ... 60 °C |
| Weight | 53.1 g |
