Schmalz

Bellows Suction Cups FSGA SI-MD (1.5 Folds)

Suction area (Ø) 11 to 33 mm
Go directly to the products

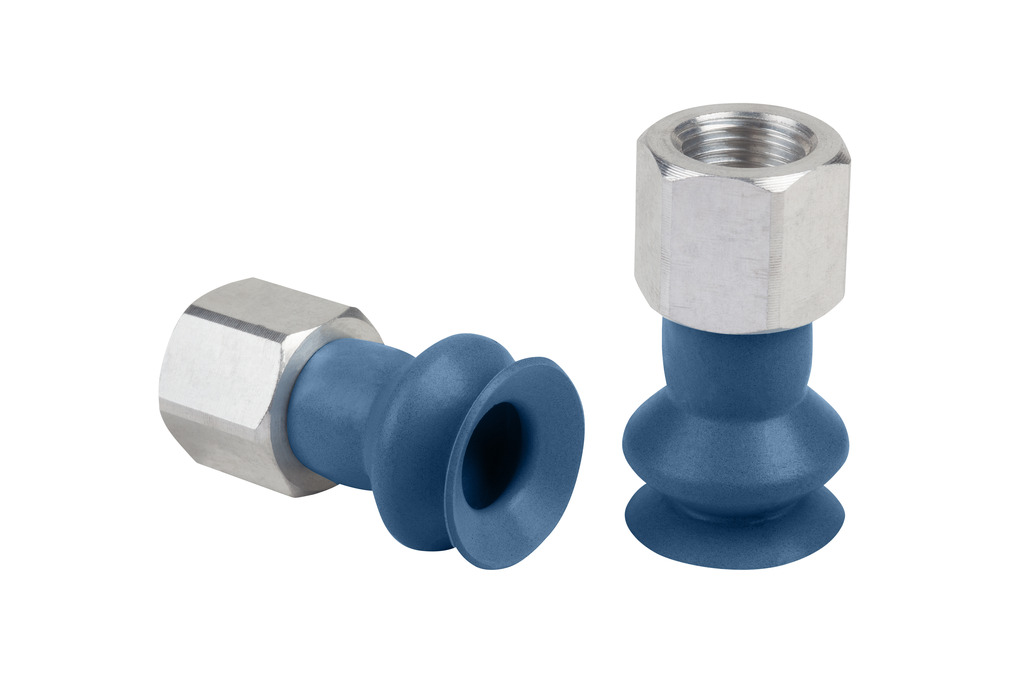

Metal detectable bellows suction cup made of silicone SI-MD for safe handling in the food industry

FDA and BfR compliant and temperature resistant from -30 °C to +180 °C

Design
  • Suction cups made of special metal detectable material SI-MD (2)
  • Suction cup connector pluggable via (SA-NIP) connector (1)
  • Suction cup and connector can be ordered separately (3)
Technical Data
  • Diameter: 11 to 33 mm
  • Material: SI-MD
  • Metal detectable material

Filter results

Size
Connection
Height H
Spring stroke Z
Industry sector
Product family

1 - 10 from 19 results

FSGA 11 SI-MD-55 M5-AG

Part no.: 10.01.06.04193

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size11
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionM5-M
Number of folds1.5
Vacuum connectionM5-M
FSGA 11 SI-MD-55 G1/8-AG

Part no.: 10.01.06.04194

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size11
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-M
Number of folds1.5
Vacuum connectionG1/8"-M
FSGA 11 SI-MD-55 G1/8-IG

Part no.: 10.01.06.04195

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size11
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-F
Number of folds1.5
Vacuum connectionG1/8"-F
FSGA 14 SI-MD-55 M5-AG

Part no.: 10.01.06.04196

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size14
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionM5-M
Number of folds1.5
Vacuum connectionM5-M
FSGA 14 SI-MD-55 G1/8-AG

Part no.: 10.01.06.04197

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size14
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-M
Number of folds1.5
Vacuum connectionG1/8"-M
FSGA 14 SI-MD-55 G1/8-IG

Part no.: 10.01.06.04198

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size14
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-F
Number of folds1.5
Vacuum connectionG1/8"-F
FSGA 16 SI-MD-55 G1/8-AG

Part no.: 10.01.06.04200

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size16
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-M
Number of folds1.5
Vacuum connectionG1/8"-M
FSGA 20 SI-MD-55 M5-AG

Part no.: 10.01.06.04202

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size20
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionM5-M
Number of folds1.5
Vacuum connectionM5-M
FSGA 20 SI-MD-55 G1/8-AG

Part no.: 10.01.06.04203

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size20
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-M
Number of folds1.5
Vacuum connectionG1/8"-M
FSGA 20 SI-MD-55 G1/8-IG

Part no.: 10.01.06.04204

Bellows suction cup (round) with optimal adaptation to uneven surfaces

Size20
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-F
Number of folds1.5
Vacuum connectionG1/8"-F
