EMVP 15 24V-DC 3/2 NO/NC
Part no.: 10.05.02.00146
Solenoid valve EMVP for vacuum, pneumatic pilot control
| Nominal size | 15 (mm) |
| Nenndurchfluss bei 0,1 bar | 39.7 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Optional NO / NC |
| Connection thread | G1/2"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Weight | 0.39 (kg) |

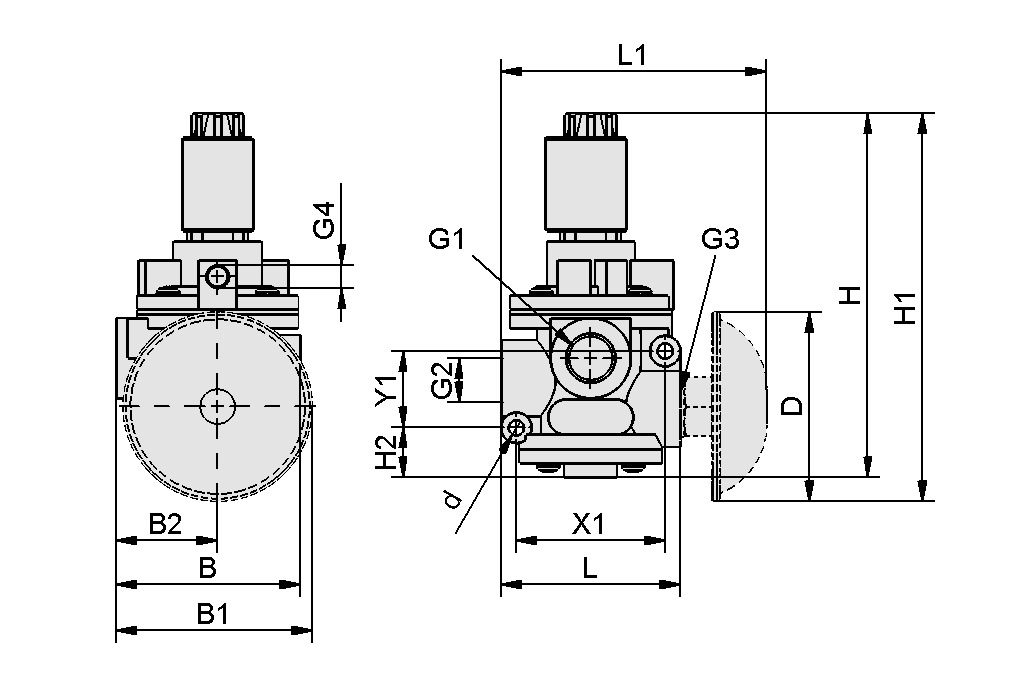

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 75 mm |
| B1 | 77.5 mm |
| B2 | 37.5 mm |
| d | 6.5 mm |
| D | 80 mm |
| G1 | G1/2"-F |
| G2 | G1/2"-F |
| G3 | G1/2"-F |
| G4 | G1/8"-F |
| H | 166.3 mm |
| H1 | 173.8 mm |
| H2 | 22.5 mm |
| L | 75 mm |
| L1 | 111.5 mm |
| X1 | 63 mm |
| Y1 | 32.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 15 mm |
| Control valve | Optional NO / NC |
| Nenndurchfluss bei 0,1 bar | 39.7 m³/h |
| Nenndurchfluss bei 0,1 bar | 662 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Power consumption DC | 5.3 W |
| Voltage DC | 24 V - DC |
| Closing time | 90 ms |
| Weight | 0.39 kg |
| Product family | EMVP |

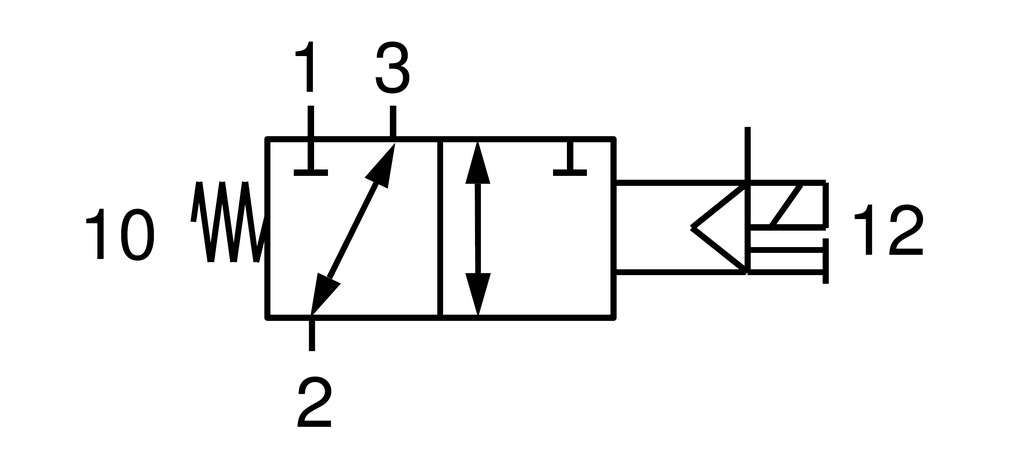

Circuit diagram
Circuit diagram
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
Accessories
FAS 80x33.8 G1/2-AG10.05.01.00061Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 33.8 (mm) |
| Thread G1 | G1/2"-M |
