EMVP 5 24V-DC 5/2 IMP
Part no.: 10.05.02.00163
Solenoid valve EMVP for vacuum, pneumatic pilot control
| Nominal size | 5 (mm) |
| Nenndurchfluss bei 0,1 bar | 4.8 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 5/2 multiway valve |
| Control valve | Impulse valve |
| Connection thread | G1/8"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Weight | 193 (kg) |

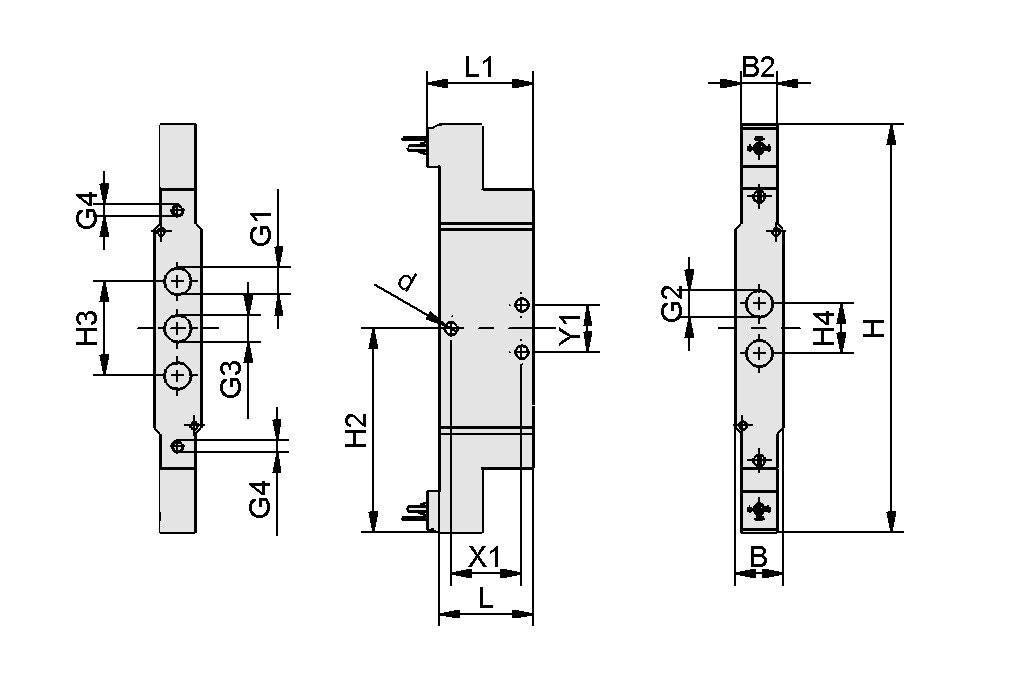

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 15.2 mm |
| B2 | 15.2 mm |
| d | 4.3 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | G1/8"-F |
| G4 | M5-F |
| H | 152.7 mm |
| H2 | 76.3 mm |
| H3 | 30 mm |
| H4 | 15 mm |
| L | 32 mm |
| L1 | 37 mm |
| X1 | 23 mm |
| Y1 | 15 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 5 mm |
| Control valve | Impulse valve |
| Nenndurchfluss bei 0,1 bar | 4.8 m³/h |
| Nenndurchfluss bei 0,1 bar | 80 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Power consumption DC | 2.4 W |
| Voltage DC | 24 V - DC |
| Closing time | 13 ms |
| Weight | 193 kg |
| Product family | EMVP |
Circuit diagram
Circuit diagram
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Accessories
ASK B-Form-C 5000 K-3P21.04.06.00084Connection cable
| Electrical connection | Fem connect Form C |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 3-pole |
| Material hose | PVC cable |
