VCBL-K1 120x50x50 Q
Part no.: 10.01.12.00770
Vacuum block for Schmalz 1-circuit console

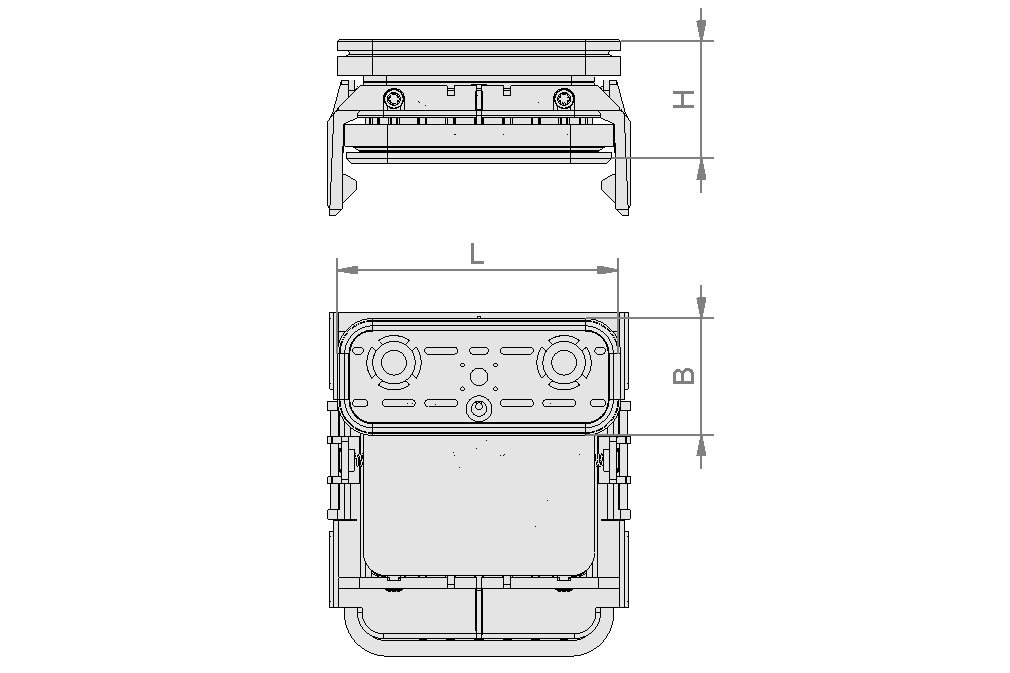

| Dimension (LxW) | 120 x 50 |
| Height H | 50 (mm) |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 50 mm |
| H | 50 mm |
| L | 120 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Dimension suction plate bottom | 140x115 mm |
| Weight | 0.6 kg |
Documentation
Documentation
Spare parts
VCSP-O 120x50x15.5 TPE10.01.12.00012Suction-Plate for vacuum block,
(top)
| Length L | 120 (mm) |
| Width B | 50 (mm) |
| Height H | 15.5 (mm) |
VCSP-U 140x115x16.5 VCBL-K1 TPE10.01.12.00228Suction plate for vacuum block
bottom
| Length L | 140 (mm) |
| Width B | 115 (mm) |
| Height H | 16.5 (mm) |
