VCBL-K2-HD 128x60x100 S-360-15 TV
Part no.: 10.01.12.05317
Vacuum block for Schmalz 2-circuit console
| Shape | Heavy duty |
| Dimension (LxW) | 128x60 |
| Height H | 100 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |

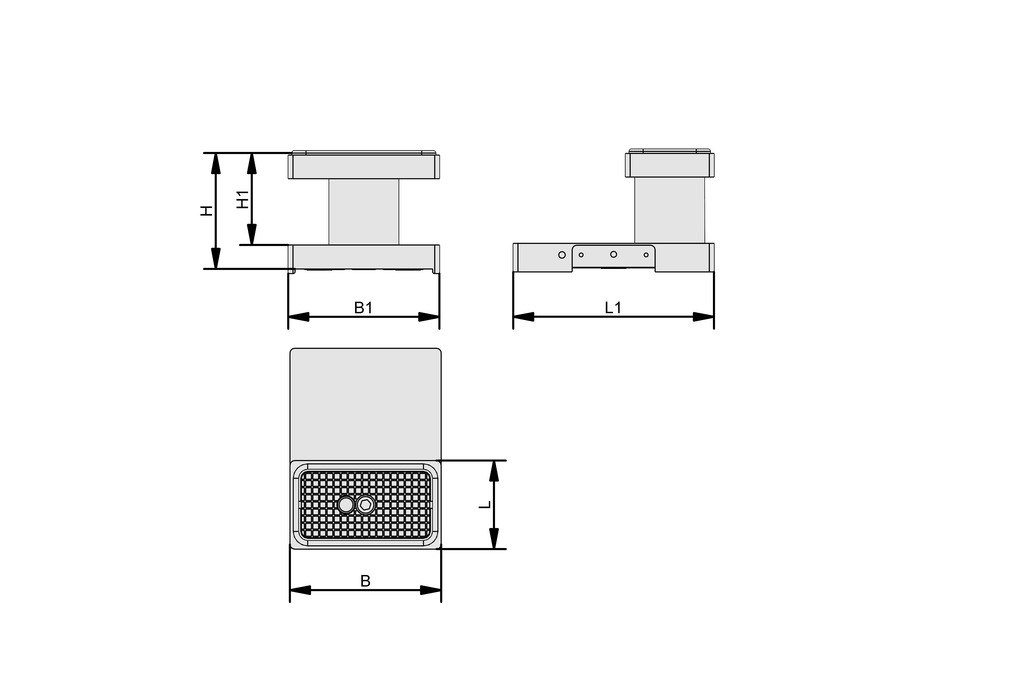

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 128 mm |
| B1 | 128 mm |
| H | 100 mm |
| H1 | 107 mm |
| L | 60 mm |
| L1 | 170 mm |
Documentation
Documentation
Spare parts
VCSP-O 128x60x19.5 RB AL10.01.12.05310Suction-Plate for vacuum block,
(top)
| Length L | 128 (mm) |
| Width B | 60 (mm) |
| Dimension (LxW) | mm |
| Height H | 19.5 (mm) |
| Material | Aluminum |
| Additional function vacuum block | Friction pad |
VCDR 166x113x6.6 VCSP10.01.12.02191Sealing frame (bottom)
| Length L | 166 (mm) |
| Width B | 113 (mm) |
| Height H | 6.6 (mm) |
| Utilization design | Suction plate vacuum block |
| Clamping range [mm] | mm |
O-RING 50x2.5 NBR-7010.07.08.00073O-ring
| Dimension (LxW) | mm |
| Internal diameter d | 50 (mm) |
| Material | Nitrile rubber NBR |
TV D9 4.310.01.12.02514Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Outside diameter D | 9 (mm) |
| Spring stroke Z | 4.3 (mm) |
| Length L | 22.8 (mm) |
DI-PROF 4x6 MOS NK-20 HR10.07.04.00054Sealing section for construction
of specific gripper solutions
| Width B | 4 (mm) |
| Height H | 6 (mm) |
| Sealing material | Natural Rubber NK |
| Material hardness [Shore A] | 20 (Shore A) |
| Form | half-round |
Accessories
KLEM-EINH 70x24.5x4.5 VCMC-K210.01.12.04255Clamping unit
| Height H | 4.5 (mm) |
| Utilization design | Mechanical clamp VCMC-K2 |
Product recommendations
Mechanical Clamps VCMC-K2-QUICK
- 2-circuit vacuum systems
- For frames and window profiles
- Fixation on console by vacuum or mechanically
Adapter-Plates ISAP-K2
- 2-circuit vacuum systems
- Pre-fixation to console by means of vacuum
- Use of Innospann suction cups
