ROB-SET FXCB KUKA SPB2
Part no.: 10.01.43.00129
Complete vacuum system for connecting to lightweight robots
| with | |
| for | KUKA |
| Type | iiwa 7,14 |
| Construction vacuum switch | PNP switching |
| Control valve | Normally open |
Design Data
Design Data

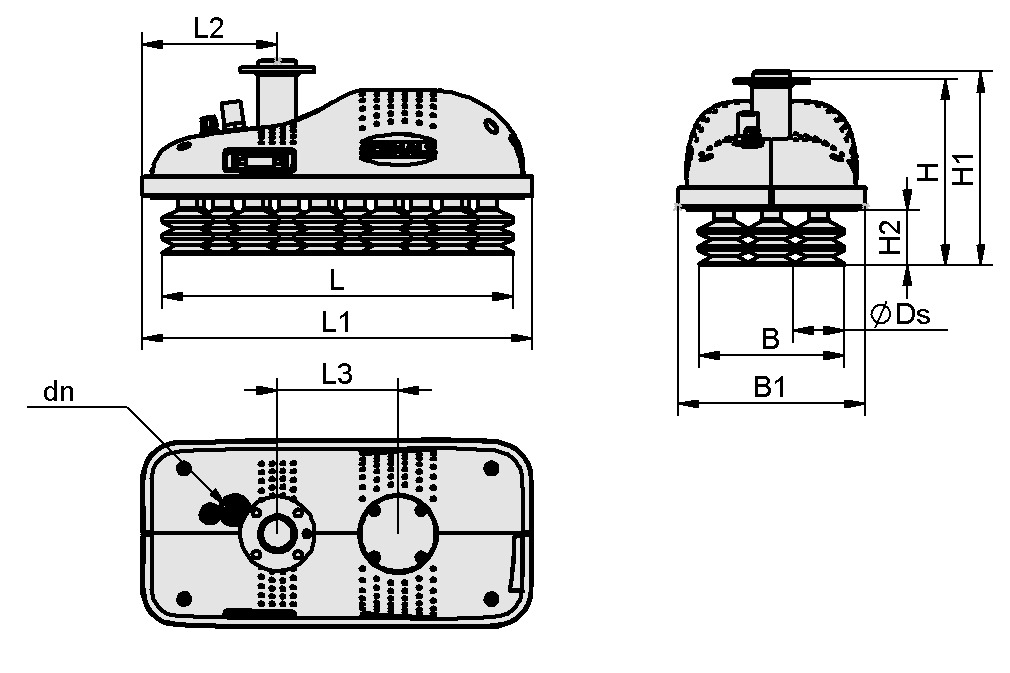

| Attribute | Value |
|---|---|
| B | 123.2 mm |
| B1 | 159 mm |
| H | 158 mm |
| H1 | 164 mm |
| H2 | 47 mm |
| L | 297 mm |
| L1 | 331 mm |
| L2 | 114.4 mm |
| L3 | 102 mm |
| dn | 10 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 2.2 kg |
| Suction rate (max.) | 525.9 l/min |
| Number of suction cells | 15 |
| Lift capacity (vertical) | 80 N |
| Lift capacity (horizontal) | 350 N |
| for | KUKA |
| Product family | ROB-SET-FXCB |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
EMVP 2.35 24V-DC 2x3/2 CAR NO/NC10.01.11.03420Solenoid valve EMVP for vacuum,
pneumatic pilot control
| Length L | 82.1 (mm) |
| Width B | 53.7 (mm) |
| Height H | 10.8 (mm) |
SD 97x34x20 FXCB10.01.43.00005Silencer for vacuum generators
| Length L | 97 (mm) |
| Width B | 34 (mm) |
| Height H | 20 (mm) |
| Utilization design | Area gripping system FXCB |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
SPB2 40 SI-55 P10.01.06.03126Bellows suction cup (round)
with 2.5 corr. for dynamic handling
of cardboard and rigid packaging
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 2.5 |
| Shape | Push In |
