HTS-A3 SGM-HP 20 OP
Part no.: 10.01.17.00561
Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 20 |
Design Data
Design Data

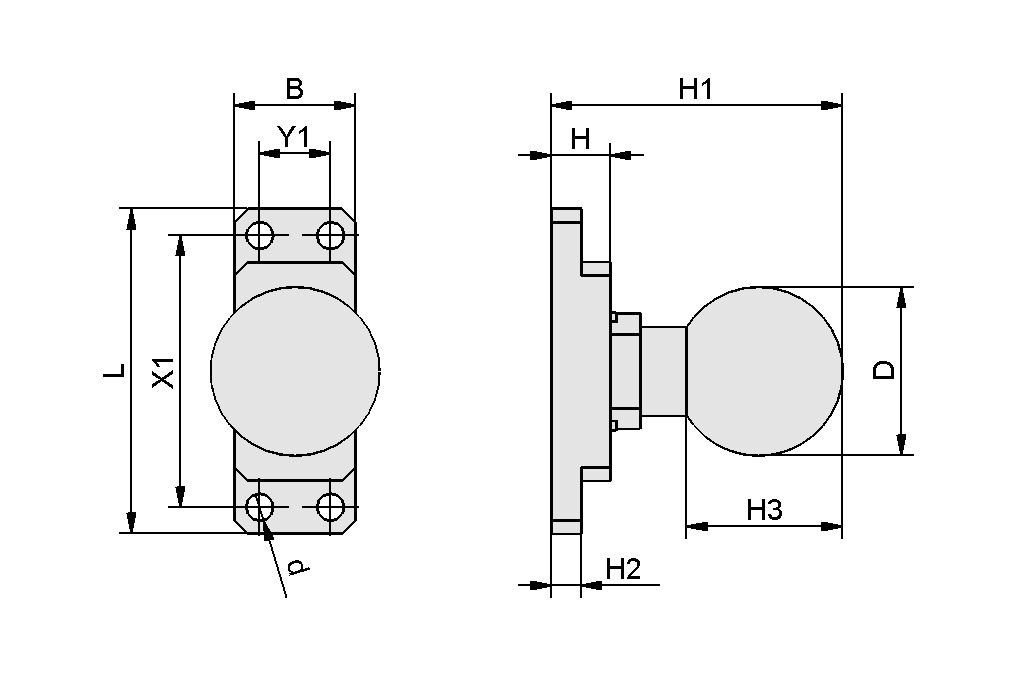

| Attribute | Value |
|---|---|
| B | 15 mm |
| d | 3.4 mm |
| D | 28.5 mm |
| H | 9.4 mm |
| H1 | 48.3 mm |
| H3 | 27.1 mm |
| H4 | 35 mm |
| L | 63 mm |
| X1 | 55 mm |
| Y1 | 6.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Size | 20 |
| Material | Aluminum |
| Weight | 54.5 g |
| Size | 20 |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Accessories
HTR-UNI 2N X310.01.03.00302Universal holder for adjustable
mounting of suction cups
| Suction cup connection | ball head 28.5 mm |
| Operating temperature | °C |
| Cross-beam connection | 2 sliding block |
