SGP 15 HT1-60 N016
Part no.: 10.01.01.12394
Flat suction cup (round) for careful gripping of paper, plastic film, etc.
| Size | 15 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SGP |
| Material property | non-marking |

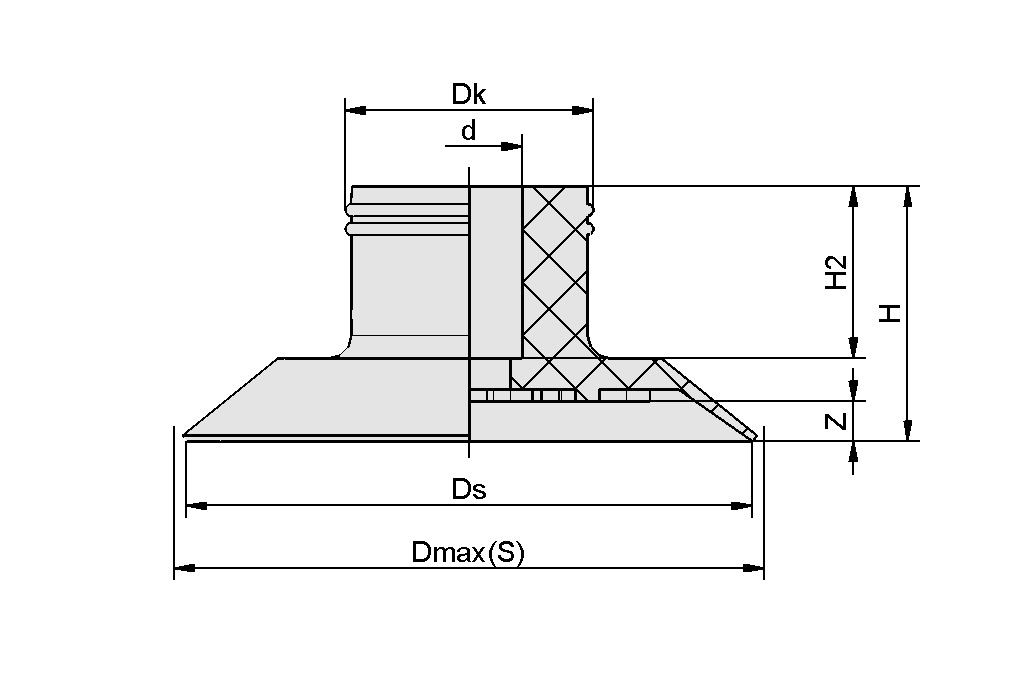

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 4.5 mm |
| Dk | 9.5 mm |
| Dmax(S) | 15.5 mm |
| Ds | 14.5 mm |
| H | 10 mm |
| H2 | 7.2 mm |
| Z (Stroke) | 0.9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 5.5 N |
| Volume | 0.28 cm³ |
| Size | 15 |
| Nipple family | N 016 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 0.7 g |
| Product family | SGP |
