SPB2 20 ED-65 NPT1/4-AG
Part no.: 10.01.06.04970
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-M |
| Number of folds | 2.5 |
Bellows Suction Cups SPB2 (2.5 Folds)
Suction area (Ø) from 20 mm to 50 mm
Large suction cup stroke for optimum adaptation to curved surfaces
Large inner fold diameters enables high flow rates for short cycle times
Flexible sealing lip optimized for cardboard boxes and rigid packaging
Spacing elements between sealing lip and fold prevent the suction cup from moving
Design
Design
- Round bellows suction cup SPB2 with 2.5 folds (2) and flexible sealing lip
- Diameter up to 30 mm with a one-piece plug-in connection element (1)
- Starting at 40 mm diameter with a two-piece connection element: consisting of machine-side component and suction cup-side component
- Available as assembled suction cups consisting of connection element and suction cup or as individual parts
Technical Data
Technical Data
- Diameter: 20 to 50 mm
- Material: ED
- Modular connection nipple
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 10 from 28 results

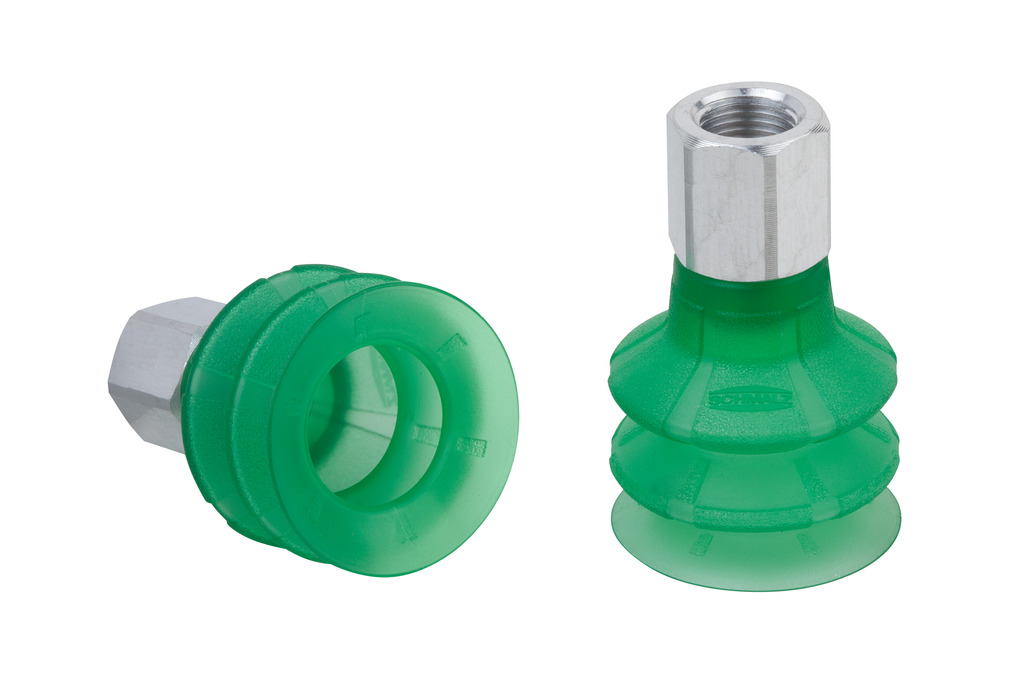

SPB2 20 ED-65 NPT1/4-IG
Part no.: 10.01.06.04971
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-F |
| Number of folds | 2.5 |
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-M |
| Number of folds | 2.5 |

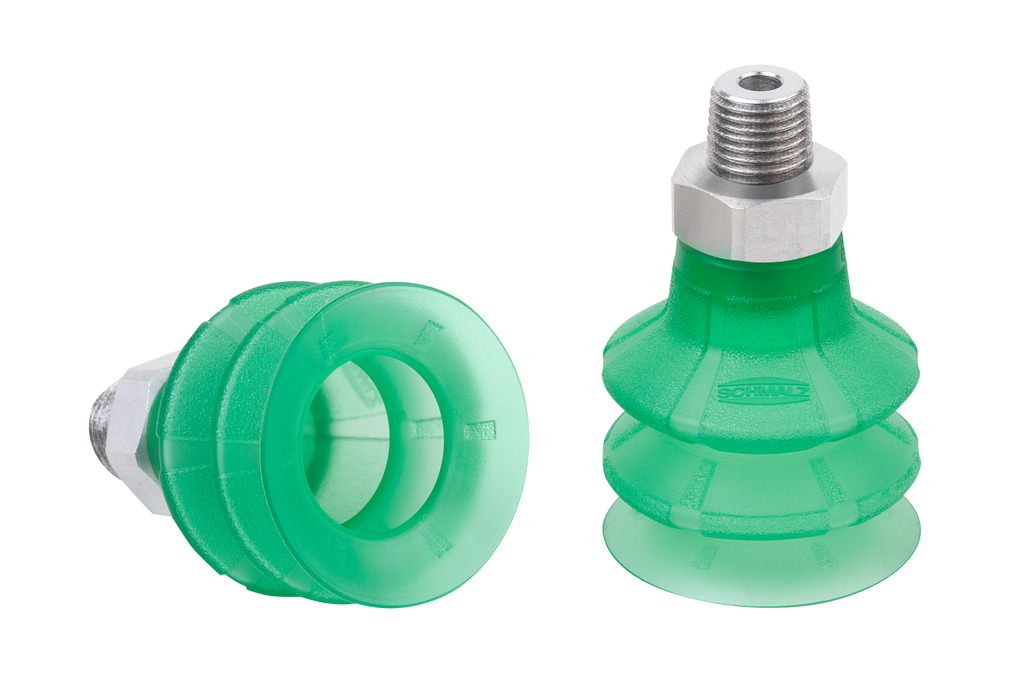

SPB2 20 ED-65 NPT1/8-AG
Part no.: 10.01.06.04968
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/8"-M |
| Number of folds | 2.5 |
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/8"-F |
| Number of folds | 2.5 |

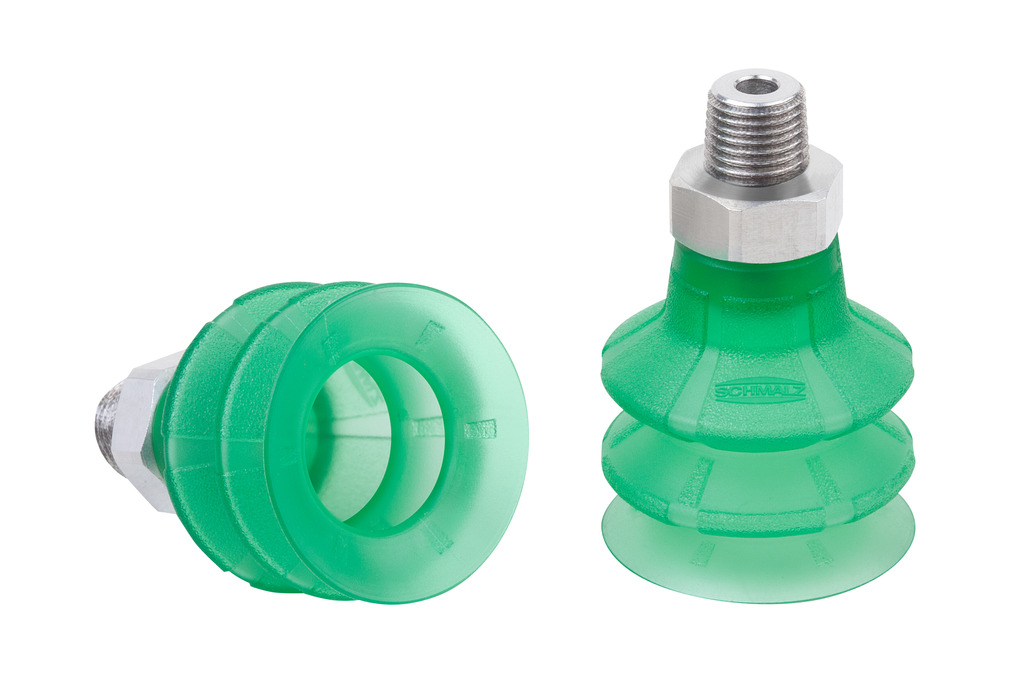

SPB2 25 ED-65 NPT1/4-AG
Part no.: 10.01.06.04974
Bellows suction cup (round) for very uneven workpieces
| Size | 25 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-M |
| Number of folds | 2.5 |
SPB2 20 ED-65 NPT1/8-IG
Part no.: 10.01.06.04969
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/8"-F |
| Number of folds | 2.5 |
SPB2 25 ED-65 NPT1/8-IG
Part no.: 10.01.06.04973
Bellows suction cup (round) for very uneven workpieces
| Size | 25 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/8"-F |
| Number of folds | 2.5 |
SPB2 25 ED-65 NPT1/4-IG
Part no.: 10.01.06.04975
Bellows suction cup (round) for very uneven workpieces
| Size | 25 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-F |
| Number of folds | 2.5 |
SPB2 30 ED-65 NPT1/4-AG
Part no.: 10.01.06.04978
Bellows suction cup (round) for very uneven workpieces
| Size | 30 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/4"-M |
| Number of folds | 2.5 |
