SFF 40 HT1-60 NPT1/4-AG
Part no.: 10.01.01.15002
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |

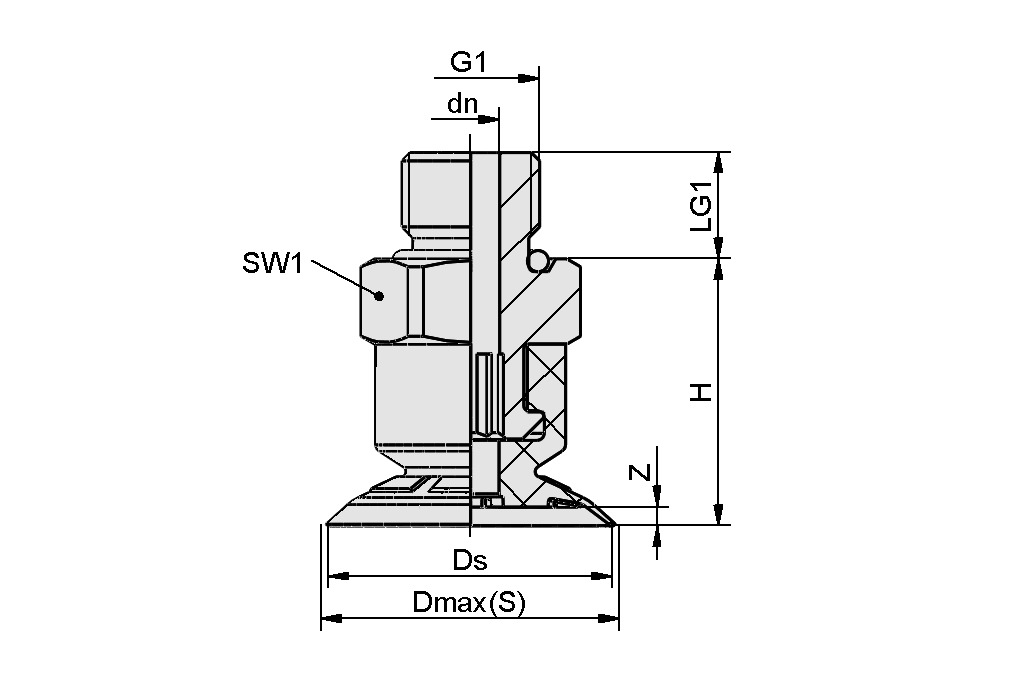

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 42 mm |
| Ds | 40 mm |
| dn | 4.1 mm |
| G1 | NPT1/4-AG |
| LG1 | 10 mm |
| H | 25 mm |
| SW1 | 17 mm |
| Z (Stroke) | 2.7 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pull-off force | 47.4 N |
| Suction force (-600mbar) | 48.6 N |
| Volume | 4.3 cm³ |
| Size | 40 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 17.7 g |
| Product family | SFF |
Documentation
Documentation
Spare parts
SC 050 NPT1/4-AG MOD10.01.06.04896Connection element for suction cup
"SchmalzConnector"
| Connection type | 050 |
| Connection | NPT1/4-M |
| Length L1 | 26.5 (mm) |
| Fitting length | 7.2 (mm) |
| Nominal diameter dn | 6.1 (mm) |
SFF 40 HT1-60 SC05010.01.01.14055Flat suction cups (round) for the
gentle handling of thin and
flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Number of folds | 0 |
