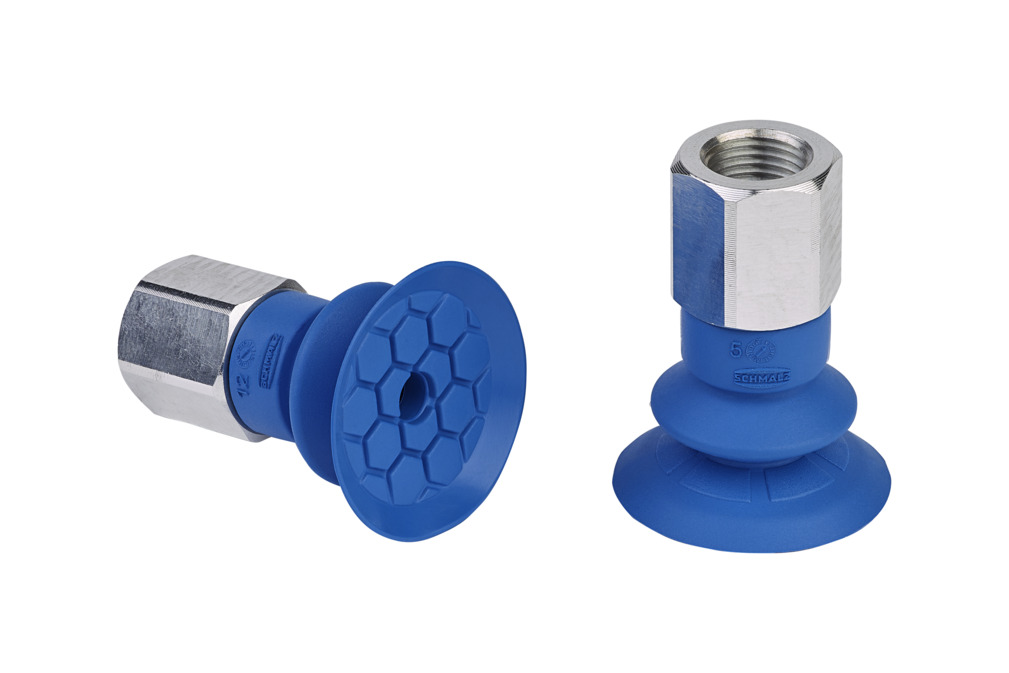

SFB1 20 HT1-60 NPT1/8-IG
Part no.: 10.01.06.05116
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 20 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |

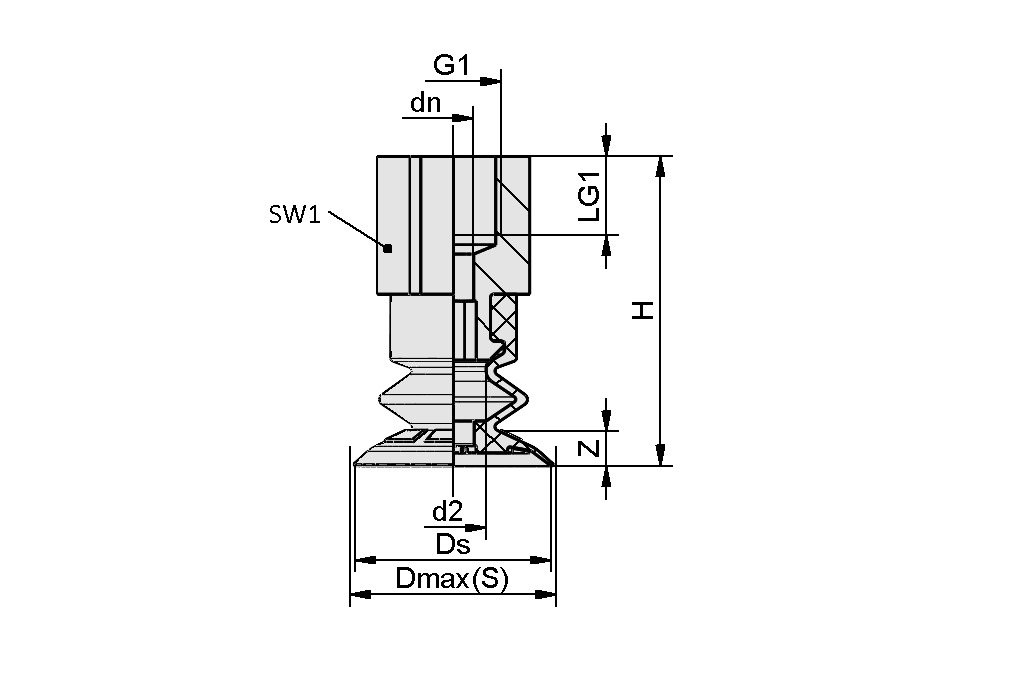

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 21 mm |
| Ds | 20 mm |
| d2 | 6.6 mm |
| dn | 4.1 mm |
| G1 | NPT1/8-IG |
| LG1 | 10.5 mm |
| H | 31.5 mm |
| SW1 | 14 mm |
| Z (Stroke) | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pull-off force | 10.5 N |
| Suction force (-600mbar) | 2.1 N |
| Volume | 1.2 cm³ |
| Size | 20 |
| Number of folds | 1.5 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Product family | SFB1 |
Documentation
Documentation
Spare parts
SC 040 NPT1/8-IG10.01.06.02542Connection element for suction cup
"SchmalzConnector"
| Connection type | 040 |
| Connection | NPT1/8-F |
| Length L1 | 20.7 (mm) |
| Fitting length | 14 (mm) |
| Nominal diameter dn | 4.1 (mm) |
SFB1 20 HT1-60 SC04010.01.06.04381Bellows suction cup (round) for
gentle handling of thin and
flexible workpieces
| Size | 20 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
| Number of folds | 1.5 |
