PFYN 15 FPM-65 G1/8-IG
Part no.: 10.01.01.00127
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 15 |
| Suction cup material | Fluorine rubber FPM |
| Material hardness [Shore A] | 65 (Shore A) |
| Material property | non-marking |
| Nipple material | Aluminum |
| Vacuum connection | G1/8"-F |

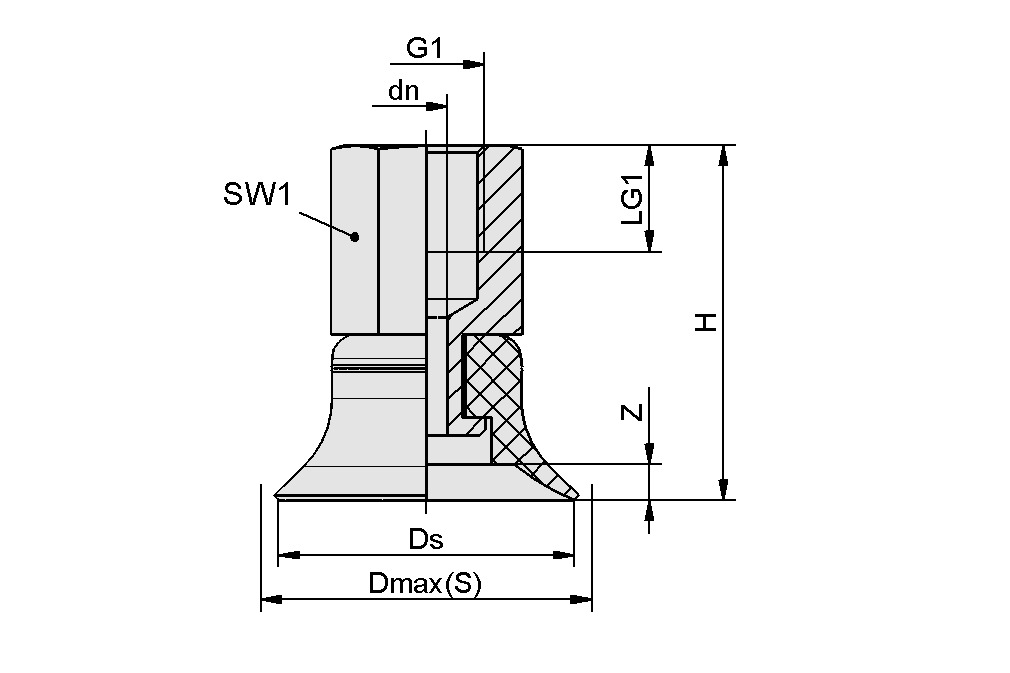

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2 mm |
| Dmax(S) | 17.5 mm |
| Ds | 15 mm |
| G1 | G1/8"-F |
| H | 24 mm |
| LG1 | 9 mm |
| SW1 | 14 mm |
| Z (Stroke) | 1.9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 9 N |
| Volume | 0.4 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 15 |
| Suction cup material | Fluorine rubber FPM |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 7 g |
| Product family | PFYN |
| Number of folds | 0 |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
SA-NIP N005 G1/8-IG DN20010.01.01.03521Suction cup connection nipple
| Nipple family | N 005 |
| Thread G1 | G1/8"-F |
| Length L1 | 20.5 (mm) |
| Length L | 16 (mm) |
| Fitting length | 16 (mm) |
| Nominal diameter dn | 2 (mm) |
| Material | Aluminum |
PFG 15 FPM-65 N00510.01.01.00071Flat suction cup (round) for
smooth or slightly rough surfaces
| Size | 15 |
| Suction cup material | Fluorine rubber FPM |
| Material hardness [Shore A] | 65 (Shore A) |
| Material property | non-marking |
