FMP-S-SVK 442 3R18 O20 G32
Osanro: 10.01.38.02789

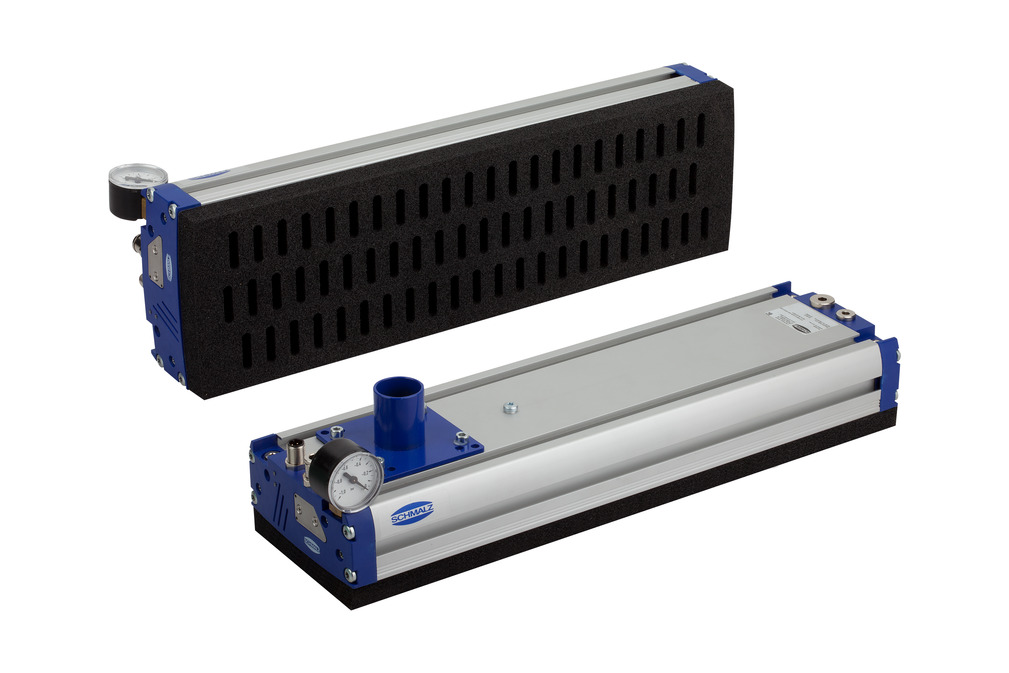

Suuren alueen tyhjiöpuristusjärjestelmä ulkoisen tyhjiön tuottaminen Virtaus palloventtiili
| Length L | 442 (mm) |
| Width B | 130 (mm) |
| Arrangement | 3R18 |
| Shape fittings | Straight |
| Outside diameter D | 32 (mm) |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Max. air consumption blow-off | 800 (l/min) |
| Weight | 2.8 (kg) |
| Product family | FMP |

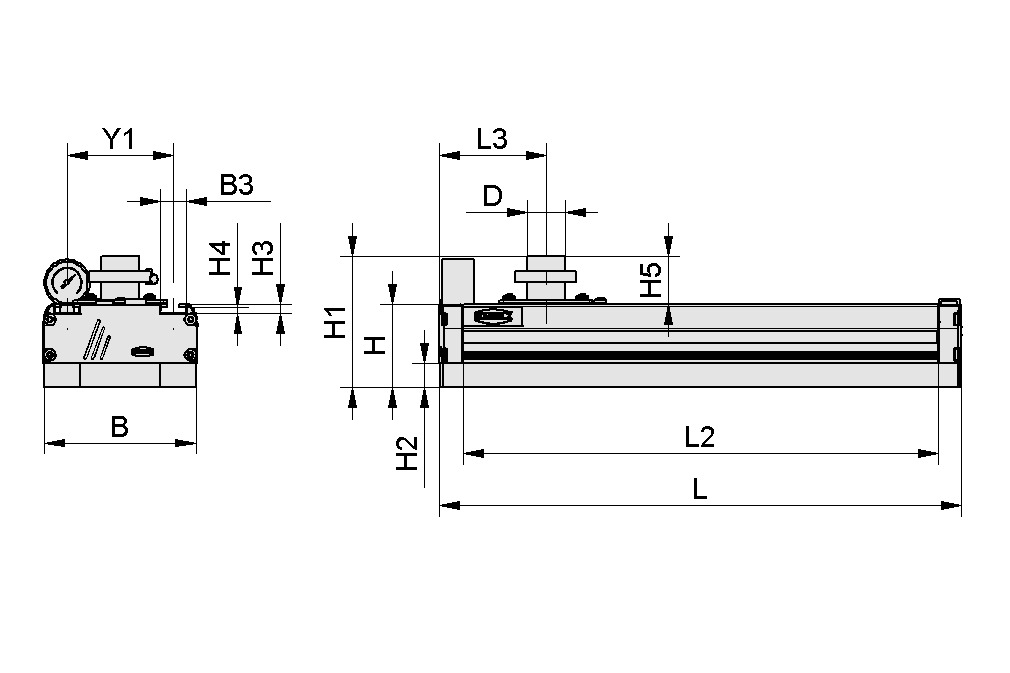

Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| B | 130 mm |
| B3 | 21,6 mm |
| D | 32 mm |
| H | 70 mm |
| H1 | 111 mm |
| H2 | 20 mm |
| H3 | 7,7 mm |
| H4 | 5,5 mm |
| H5 | 41 mm |
| L | 442 mm |
| L2 | 402 mm |
| L3 | 77 mm |
| Y1 | 90 mm |
| Valve type | SVK |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Arrangement | 3R18 |
| Number of suction cells | 66 |
| Suction force at -250 mbar | 550 N |
| Voltage | 24V - DC |
| Electrical connection | Male connect M12, 4 pol |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Weight | 2,8 kg |
| Sealing element | Sealing Foam |
| Required suction capacity for pu = -0.25 bar | 300 l/min |
| Product family | FMP |
CAD-tiedot
CAD-tiedot
Live CAD-malli helppokäyttöinen
Kun napsautat latauspainiketta, voit ladata CAD-mallin eri tiedostomuodoissa. Jos esikatselu ei näy oikein tällä sivulla, napsauta "Lataa uudelleen" -painiketta.
Dokumentointi
Dokumentointi
Varaosat
VENT-BGR FMP-S-3210.01.38.03516Venttiilikokoonpano
Tyhjiön ja paineilman ohjaus
| contains | Multiway valve pneumatic |
| Utilization design | Vacuum area gripping system FMP-S |
MASK-FOL SVK 402 3R18 FXP-FMP10.01.38.00307Front foil
| Length L | 402 (mm) |
| Width B | 109.8 (mm) |
| Height H | 0.4 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
DI-PL 442x128 3R18 LL-20x7 O20 KE10.01.38.00113Tiivistyslevy (FXP/FMP)
| Length L | 442 (mm) |
| Width B | 128 (mm) |
| Arrangement | 3R18 |
| Additional function area gripper | Adhesive tape on one side |
Lisätarvikkeet
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP26.07.03.00002Cover Profile
| Length L | 1450 (mm) |
| Width B | 10 (mm) |
| Height H | 7 (mm) |
| Material | Plastics |
| Color | black |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
FLAN-PL 120x85x10 ST FLGR10.01.10.05701Flange plate
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Vacuum area gripping system |
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FST-FLEX 25 HD1 G1/2-AG G3/8-IG10.01.10.05697Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 25 HD2 G1/2-AG G3/8-IG10.01.10.05695Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD1 G1/2-AG G3/8-IG10.01.10.05687Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD2 G1/2-AG G3/8-IG10.01.10.05168Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD1 G1/2-AG G3/8-IG10.01.10.05698Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD2 G1/2-AG G3/8-IG10.01.10.05696Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD1 G1/2-AG G3/8-IG10.01.10.05810Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 25 HD2 G1/2-AG G3/8-IG10.01.10.05806Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD1 G1/2-AG G3/8-IG10.01.10.05809Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD2 G1/2-AG G3/8-IG10.01.10.05805Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD1 G1/2-AG G3/8-IG10.01.10.05808Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 1 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD2 G1/2-AG G3/8-IG10.01.10.05803Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
MOD-FLAN 120x120 FXP-FMP10.01.21.00244Laippamoduuli
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Weight | 1.1 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
SET FXC-FMC10.01.21.01291Kiinnityssarja
| Length L | 119 (mm) |
| Width B | 119 (mm) |
| Height H | 9.6 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Utilization design | Vacuum area gripping system FXC-FMC |
SET FXP-FMP10.01.21.02407Kiinnityssarja
| Length L | 232 (mm) |
| Width B | 119 (mm) |
| Height H | 119 (mm) |
| Measuring range [bar] | bar |
| Weight | 1.3 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
SET FXP-FMP 4NUTSTEIN G2010.01.21.00243Kiinnityssarja
| contains | 4 sliding blocks |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
STF G1-1/4-IG N10.07.01.00008pölysuodatin
| Connection | G1-1/4"-F |
| Shape | Steel housing |
| Nominal flow rate | 96 (m³/h) |
| Filter pore size | 3 (µm) |
VAM 40 V U BAR10.07.02.00046Analoginen tyhjiömanometri
Tyhjiön mittaus ja valvonta
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | |
| Vacuum connection | G1/8"-M |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
VENT-EINH 8/6 NC 24V-DC10.01.21.02405Venttiiliyksikkö
| Connection | Hose 8/6 |
| Control valve | Normally closed |
| Utilization design | Vacuum area gripping system FXP-FMP |
VSL 42-32 PU-DS-AS TR10.07.09.00036Hose for vacuum and
compressed-air systems
| Outside diameter D | 42 (mm) |
| Internal diameter d | 32 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 25 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 3.77 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
VS-MONT 50x15.8x25 VS10.06.02.00343Tyhjiökytkin (mont)
| Length L | 50 (mm) |
| Width B | 15.8 (mm) |
| Height H | 25 (mm) |
| Special function | Can be mounted upright |
| Measuring range [bar] | bar |
| Utilization design | Vacuum switch |
VS-MONT 76.5x19 VSi FXP-FMP10.01.38.02485Tyhjiökytkin (mont)
| Length L | 76.5 (mm) |
| Width B | 19 (mm) |
| Special function | Can be mounted upright |
| Additional function area gripper | Vacuum and pressure switch VSi |
| Measuring range [bar] | bar |
| with | Vacuum and pressure switch |
| Utilization design | Vacuum area gripping system FXP-FMP |
VTR-SL 3x RST60 2xD3210.01.43.00013Vacuum distributor with
hose connector
| Length L | 439 (mm) |
| Width B | 100 (mm) |
| Height H | 127.5 (mm) |
ASK B-M12-5 5000 K-5P21.04.05.00080Liitäntäkaapeli
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
VSL 8-6 PU MI-TR10.07.09.00003Hose for vacuum and
compressed-air systems
| Outside diameter D | 8 (mm) |
| Internal diameter d | 6 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 45 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -35 ... 60 °C |
| Color | Milky-transparent |
FLAN-PL 120x120x10 FXC-FMC10.01.21.00313Flange plate
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXC-FMC |
FLK G1/2-IG G1/2-AG V10.01.03.00207Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
SCHL-AN 32-79x79x40 FMP-S10.01.38.03581Hose connector - straight pre-assemb
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 40 (mm) |
| Hole spacing X1 | 50 (mm) |
| Hole spacing Y1 | 62 (mm) |
| Outside diameter D | 32 (mm) |
| Utilization design | Vacuum area gripping system FMP-S |
SCHL-AN W 32-79x79x29 FMP-S10.01.38.04297Hose connector - 90° pre-assemb
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 29 (mm) |
| Hole spacing X1 | 62 (mm) |
| Hole spacing Y1 | 50 (mm) |
| Outside diameter D | 32 (mm) |
| Utilization design | Vacuum area gripping system FMP-S |
VRS-PL 79x79x12 SPZ G2-IG10.01.21.01280Sealing plate - pre-assembly
| Length L | 79 (mm) |
| Width B | 79 (mm) |
| Height H | 12 (mm) |
| Thread G1 | G2"-F |
| Utilization design | Schmalz palletizer |
