STV-WF G1/8-AG 6
Osanro: 10.08.02.00168
Push-in Fitting, swivelling and lockable
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 21.4 (mm) |

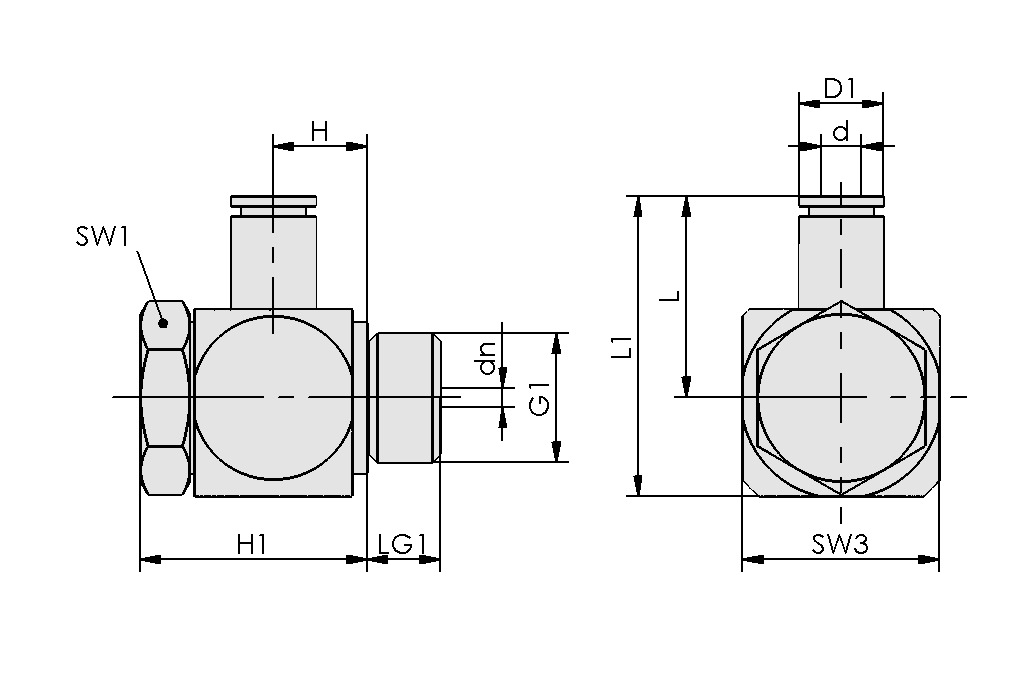

Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| d | 6 mm |
| G1 | G1/8"-M |
| dn | 5,4 mm |
| D1 | 11,4 mm |
| H | 9,8 mm |
| H1 | 23,6 mm |
| L | 21,4 mm |
| L1 | 25,3 mm |
| LG1 | 5 mm |
| SW1 | 14 mm |
| SW3 | 16 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Design hose type | Hose D = 6 d = 4 |
| Design hose type | 6-4 |
| Material | Nickel plated |
| Pressure range (operating pressure) [bar] | -0.95 ... 15.00 bar |
| Operating temperature | -10 ... 70 °C |
| Weight | 41 g |
| Product family | STV |
CAD-tiedot
CAD-tiedot
Live CAD-malli helppokäyttöinen
Kun napsautat latauspainiketta, voit ladata CAD-mallin eri tiedostomuodoissa. Jos esikatselu ei näy oikein tällä sivulla, napsauta "Lataa uudelleen" -painiketta.
Dokumentointi
Dokumentointi
Lisätarvikkeet
VSL 6-4 PE BL10.07.09.00014Compressed-air hose
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 100 (m) |
| Material hose | PE |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Color | blue |
VSL 6-4 PTFE MI-TR10.07.09.00157Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 50 (m) |
| Material hose | Polytetrafluorethylene |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -190 ... 260 °C |
| Color | Milky-transparent |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
Tuotesuositukset
VSL-tyhjiö- / paineilmaletkut
- Ulko- / sisähalkaisija: 4/2 - 87/75
- Materiaali: PA, PE, PU, PVC
