SVB-T 4
Osanro: 10.09.02.00020
Plug connection, T
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Length L | 34 (mm) |
Suunnitteludata
Suunnitteludata

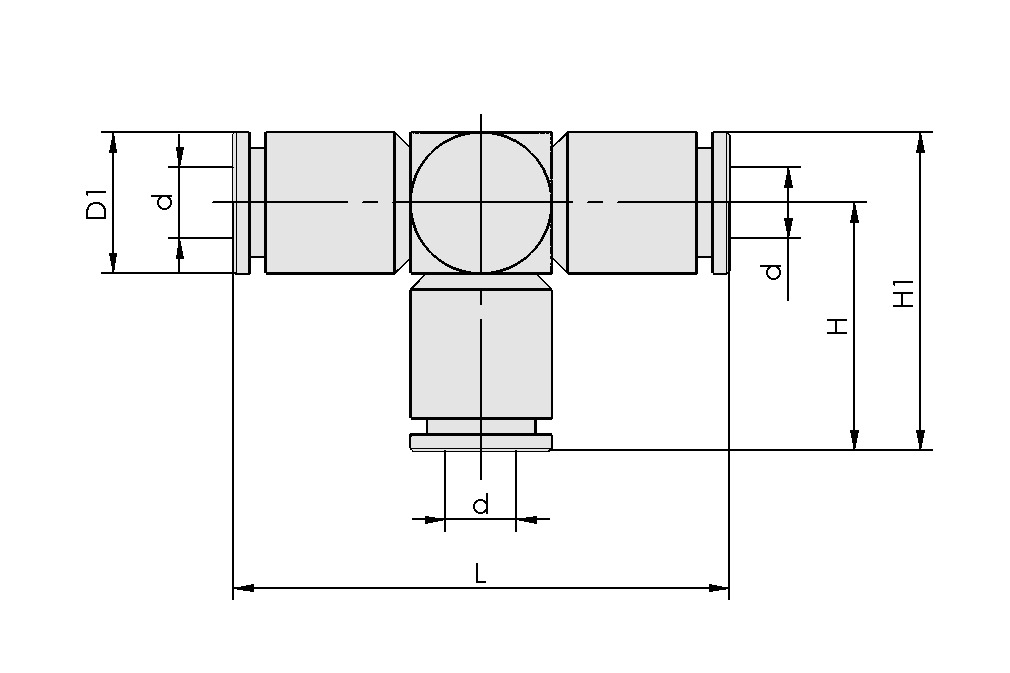

| Attribuutti | Arvo |
|---|---|
| d | 4 mm |
| D1 | 8,6 mm |
| H | 16,3 mm |
| H1 | 20,6 mm |
| L | 34 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Design hose type | Hose D = 4 d = 2 |
| Design hose type | 4-2 |
| Material | Brass |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |
| Operating temperature | -20 ... 80 °C |
| Weight | 13 g |
| Product family | STV |
CAD-tiedot
CAD-tiedot
Live CAD-malli helppokäyttöinen
Kun napsautat latauspainiketta, voit ladata CAD-mallin eri tiedostomuodoissa. Jos esikatselu ei näy oikein tällä sivulla, napsauta "Lataa uudelleen" -painiketta.
Dokumentointi
Dokumentointi
Lisätarvikkeet
VSL 4-2 PE BL10.07.09.00013Compressed-air hose
| Outside diameter D | 4 (mm) |
| Internal diameter d | 2 (mm) |
| Length max. | 100 (m) |
| Material hose | PE |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Color | blue |
VSL 4-2 PU MI-TR10.07.09.00001Hose for vacuum and
compressed-air systems
| Outside diameter D | 4 (mm) |
| Internal diameter d | 2 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 20 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 60 °C |
| Color | Milky-transparent |
VSL 4-2.7 PA MI-TR10.07.09.00063Hose for vacuum and
compressed-air systems
| Outside diameter D | 4 (mm) |
| Internal diameter d | 2.7 (mm) |
| Length max. | 50 (m) |
| Material hose | PA |
| Bending radius min. | 30 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 20.00 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Milky-transparent |
