ST G1/8-AG 4 MS-ROH
Osanro: 10.08.03.00153
Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 4 (mm) |
| Material | Brass |
| Surface | raw |
| Length L | 4 (mm) |
| Nominal diameter dn | 2.5 (mm) |

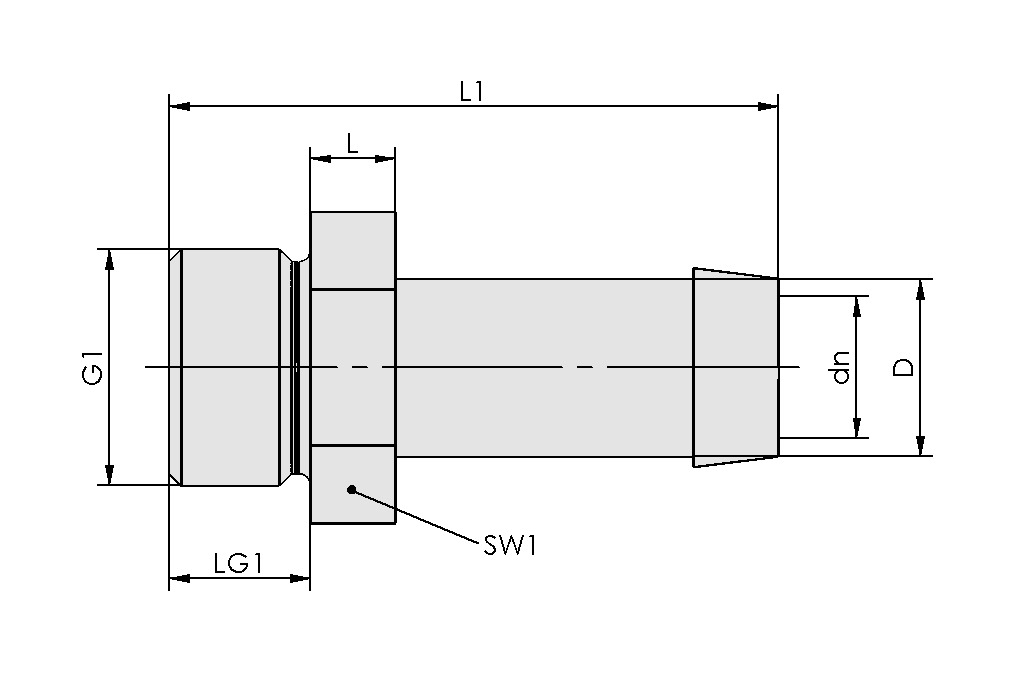

Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| dn | 2,5 mm |
| D | 3,9 mm |
| G1 | G1/8"-M |
| L | 4 mm |
| L1 | 28 mm |
| LG1 | 7 mm |
| SW1 | 14 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Material | Brass |
| Weight | 7 g |
CAD-tiedot
CAD-tiedot
Live CAD-malli helppokäyttöinen
Kun napsautat latauspainiketta, voit ladata CAD-mallin eri tiedostomuodoissa. Jos esikatselu ei näy oikein tällä sivulla, napsauta "Lataa uudelleen" -painiketta.
Dokumentointi
Dokumentointi
Lisätarvikkeet
VSL 6-4 PE BL10.07.09.00014Compressed-air hose
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 100 (m) |
| Material hose | PE |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Color | blue |
VSL 6-4 PTFE MI-TR10.07.09.00157Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 50 (m) |
| Material hose | Polytetrafluorethylene |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -190 ... 260 °C |
| Color | Milky-transparent |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
