VCBL-GL D120x81.5
Osanro: 10.01.18.04539
Vacuum block with hose connection for use on smooth tables for glass processing
| Outside diameter D | 120 (mm) |
| Height H | 81.5 (mm) |
| Dimension suction plate bottom | Diameter 120 mm |
| Diameter vacuum connection | 8 (mm) |

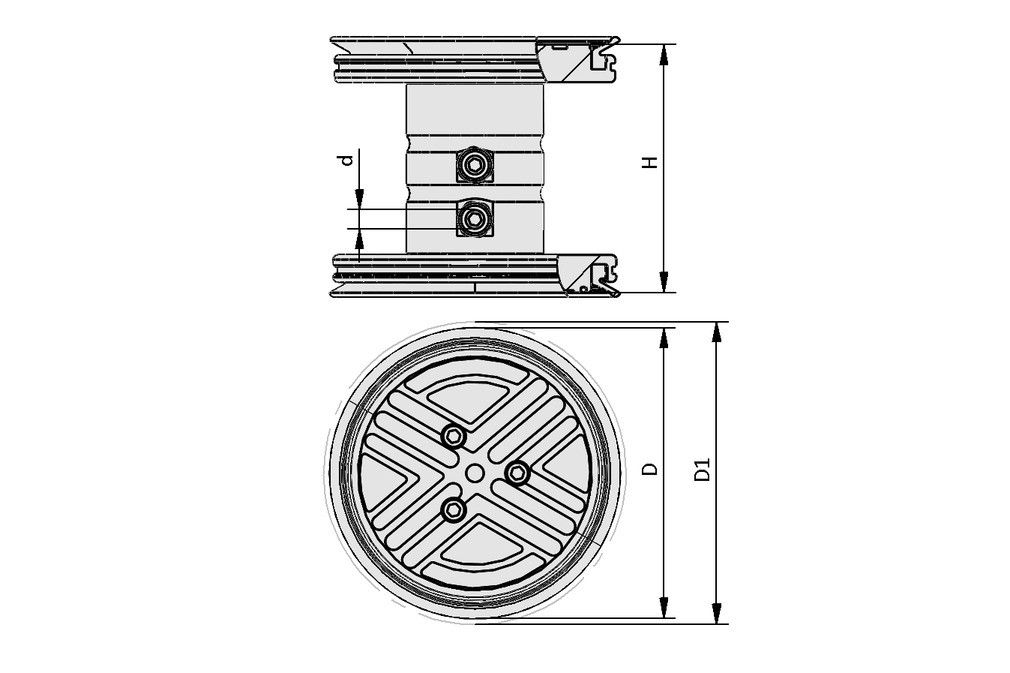

Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| D | 120 mm |
| D1 | 124 mm |
| d | 8 mm |
| H | 81,5 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Repeatability | ± 0.06 mm |
| Weight | 1,63 kg |
Dokumentointi
Dokumentointi
Varaosat
VCSP-O D120x1610.01.18.03889Suction-Plate for vacuum block,
(top)
| Diameter | 120 (mm) |
| Height H | 16 (mm) |
| Operating temperature | °C |
STV-GE G1/8-AG 810.08.02.00349Push-in Fitting, straight
| Outside diameter D | 13.7 (mm) |
| Internal diameter d | 8 (mm) |
| Outer hose diameter | 8 (mm) |
| Length L | 20 (mm) |
| Thread G1 | G1/8"-M |
| Operating temperature | -20 ... 80 °C |
| Material | Brass |
| Surface | nickel plated |
DI-SCHN 3.3x370.510.01.18.04263Sealing cord
| Outside diameter D | 3.3 (mm) |
| Length L | 370.5 (mm) |
| Operating temperature | °C |
DI-SCHN 2.5 NBR-7010.07.04.00166Sealing cord
| Outside diameter D | 2.5 (mm) |
| Material hardness [Shore A] | 70 (Shore A) |
| Sealing material | Nitrile rubber |
DR 110.8/99x1410.07.08.00737Sealing ring for suction plate
| Outside diameter D | 110.8 (mm) |
| Internal diameter d | 99 (mm) |
| Length L | 14 (mm) |
| Operating temperature | °C |
