Ejector Modules ecoPump SEP

Suction rate up to 309 l/min
Go directly to the products

Powerful but energy-efficient vacuum generation

Air consumption optionally optimized for airtight (HV) or porous (HF) workpieces

Working vacuum is reached very quickly, leakages are safely compensated

Long service intervals, as insensitive to dirt; easy cleaning

One piece nozzle assembly allows quick, easy cleaning

Design
  • Compact, lightweight plastic ejector nozzle (1)
  • Available in three performance classes and two versions with optimized air consumption for airtight (HV) or porous (HF) materials
  • Available with optional holder cap SHC (2) for fixation of the ejector nozzle, alternatively with silencer SD or with ecoPump housing SFE (3)
Technical Data
  • Suction rate up to 415 l/min
  • For airtight or porous workpieces
Performance Data
MetricImperial
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Croatian

The documentation is also fully available in English.

DocumentsLanguage
English

Filter results

Suction rate (max.)
Number of stages
Nozzle size
Hole diameter
Product family
Labeling
Industry sector

1 - 10 from 18 results

  • EFFICIENT
SEP HF 2 03 7

Part no.: 10.02.01.01341

Multistagenozzle as a cartridge

ShapeHigh flow
Number of stages2
Hole diameter7 (mm)
Degree of evacuation55 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)15.3 (l/min)
Air consumption suction5 (l/min)
  • EFFICIENT
SEP HV 2 04 7

Part no.: 10.02.01.01393

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages2
Hole diameter7 (mm)
Degree of evacuation79 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)13.2 (l/min)
Air consumption suction6.5 (l/min)
  • EFFICIENT
SEP HF 2 06 13

Part no.: 10.02.01.01343

Multistagenozzle as a cartridge

ShapeHigh flow
Number of stages2
Nozzle size0,6 mm
Hole diameter13 (mm)
Degree of evacuation70 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)42.5 (l/min)
Air consumption suction18.7 (l/min)
  • EFFICIENT

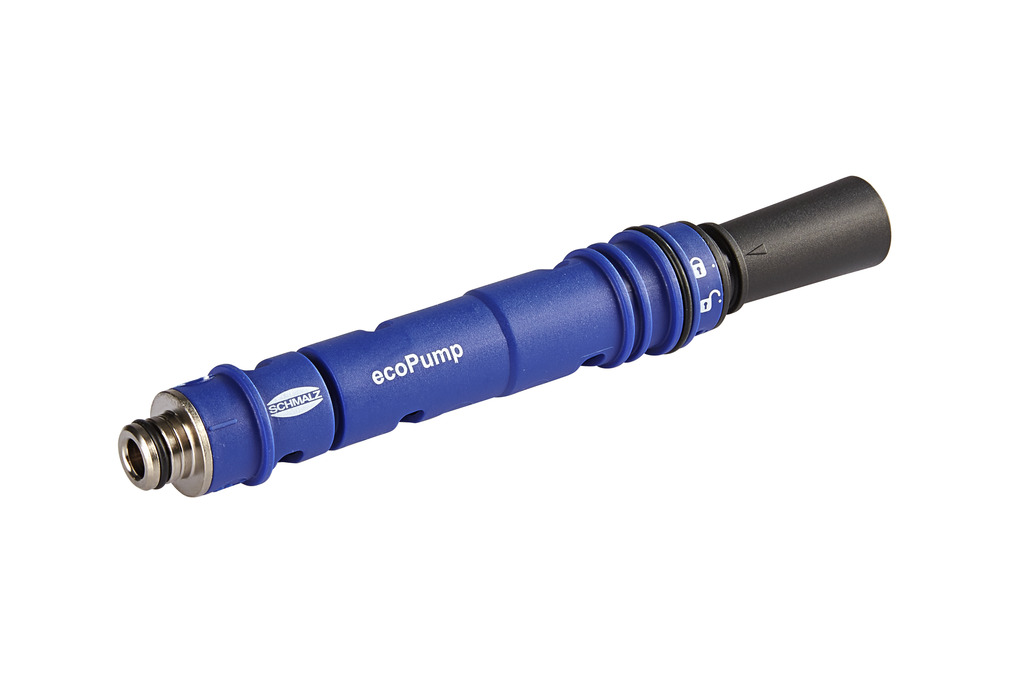

SEP HV 3 20 22

Part no.: 10.02.01.01631

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages3
Hole diameter22 (mm)
Degree of evacuation85 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4.5 (bar)
Suction rate (max.)415 (l/min)
Air consumption suction170 (l/min)
  • EFFICIENT
SEP HF 3 06 13

Part no.: 10.02.01.01344

Multistagenozzle as a cartridge

ShapeHigh flow
Number of stages3
Hole diameter13 (mm)
Degree of evacuation70 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)67.3 (l/min)
Air consumption suction18.7 (l/min)
  • EFFICIENT
SEP HV 2 07 13

Part no.: 10.02.01.01394

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages2
Hole diameter13 (mm)
Degree of evacuation85 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)42.5 (l/min)
Air consumption suction23.5 (l/min)
  • EFFICIENT

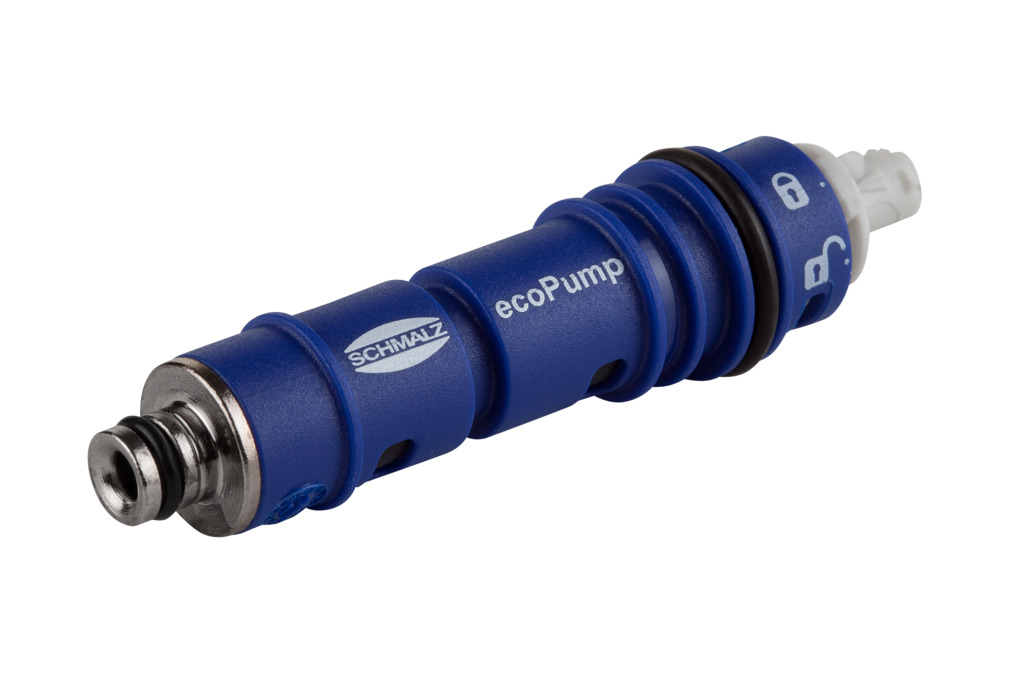

SEP HV 2 07 13 S

Part no.: 10.02.01.01406

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages2
Hole diameter13 (mm)
Shape compact ejectorsWith safety valve
Degree of evacuation85 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)37.5 (l/min)
Air consumption suction23.5 (l/min)
  • EFFICIENT
SEP HV 3 07 13

Part no.: 10.02.01.01395

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages3
Hole diameter13 (mm)
Degree of evacuation85 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)76.8 (l/min)
Air consumption suction23.5 (l/min)
  • EFFICIENT
SEP HV 3 07 13 S

Part no.: 10.02.01.01407

Multistagenozzle as a cartridge

ShapeHigh vacuum
Number of stages3
Hole diameter13 (mm)
Shape compact ejectorsWith safety valve
Degree of evacuation85 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)63.8 (l/min)
Air consumption suction23.5 (l/min)
  • EFFICIENT
SEP HF 2 13 22

Part no.: 10.02.01.01347

Multistagenozzle as a cartridge

ShapeHigh flow
Number of stages2
Nozzle size1,3 mm
Hole diameter22 (mm)
Degree of evacuation61 (%)
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Optimal operating pressure4 (bar)
Suction rate (max.)175.3 (l/min)
Air consumption suction74 (l/min)
