SNG-AP 10 1.2 V 3
부품 번호.: 10.01.29.00377
Pneumatic needle gripper in maintenance-friendly design infinitely adjustable stroke
| Number of needles | 10 |
| Needle diameter | 1.2 (mm) |
| Needle stroke Z(NA) | 3 (mm) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
디자인 데이터
디자인 데이터
| 속성 | 값 |
|---|---|
| B | 35 mm |
| G1 | M5-F |
| G4 | M5-F |
| H | 80.2 mm |
| H2 | 46.1 mm |
| L | 65 mm |
| L2 | 28 mm |
| W(E) | 30 ° |
| X1 | 29 mm |
| Y1 | 29 mm |
| Z(NA) | 3 mm |
기술 데이터
기술 데이터
| 속성 | 값 |
|---|---|
| Number of needles | 10 |
| Needle diameter | 1.2 mm |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Operating temperature | 5 ... 75 °C |
| Installation position | BEL |
| Weight | 190 g |
| Additional function | Variable stroke |
| Product family | SNG-AP |
CAD 데이터
CAD 데이터
사용하기 쉬운 라이브 CAD 모델
다운로드 버튼을 클릭하면 다양한 파일 형식으로 CAD 모델을 다운로드할 수 있습니다. 이 페이지에서 미리보기가 제대로 표시되지 않으면 '다시 로드' 버튼을 클릭하세요.
관련 문서
관련 문서
예비 부품

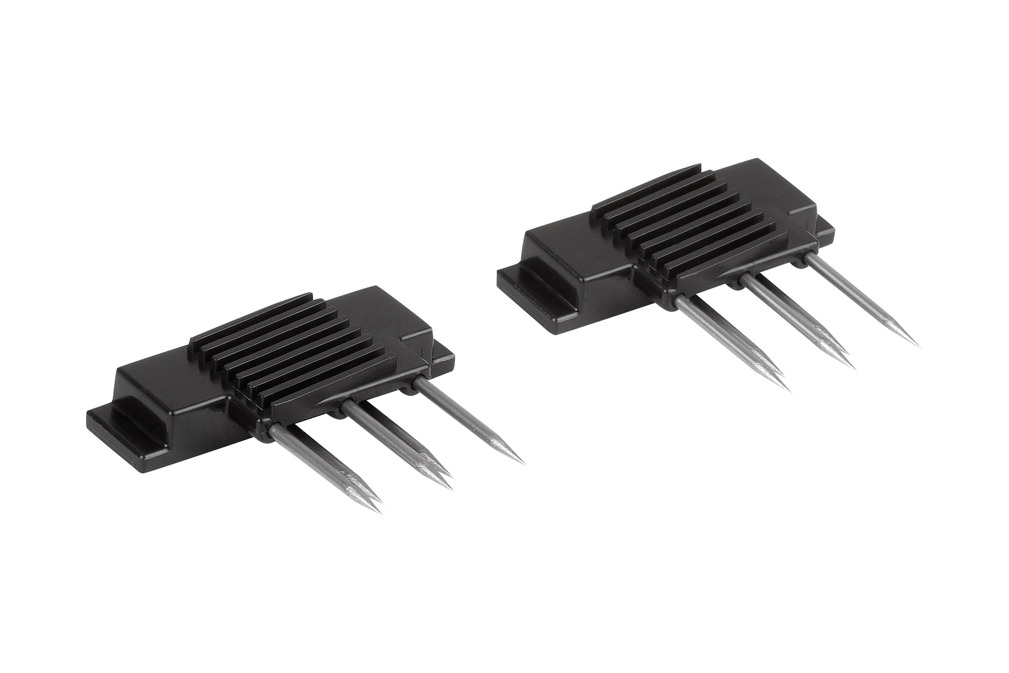

ERS SNG-AP/AE 10 1.2 310.01.29.00406Set of spare parts
| Utilization design | Needle gripper |
| Size | AP/AE |
| contains | 2 needle wedges mounted |
| Number of needles | 10 |
| Needle diameter | 1.2 (mm) |
| Needle stroke Z(NA) | 3 (mm) |

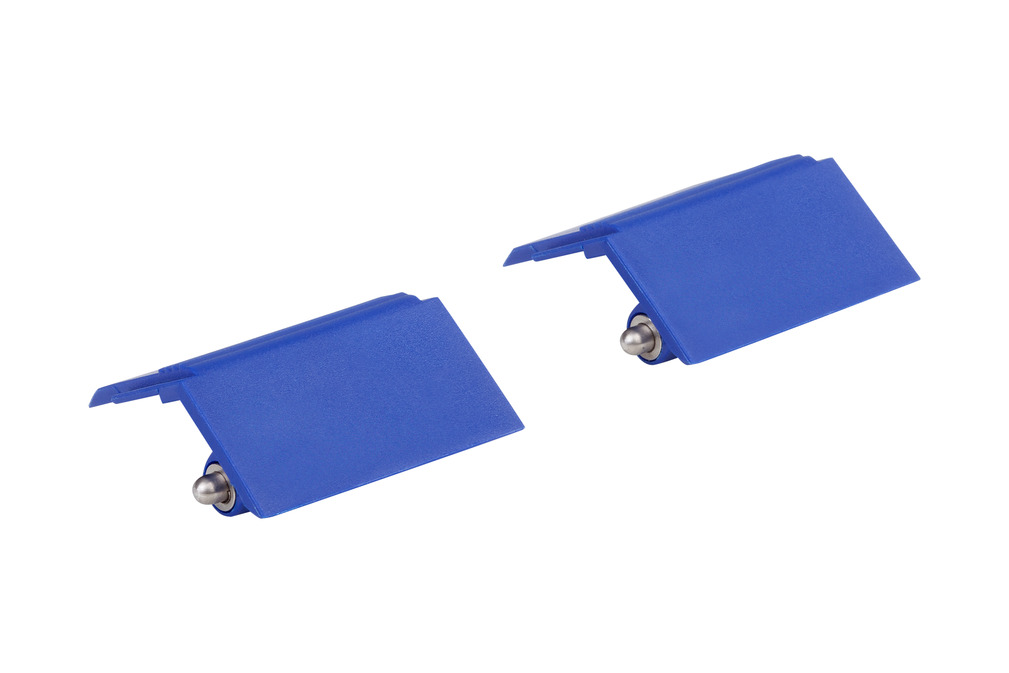

ERS SNG-AP/AE 310.01.29.00419Set of spare parts
| Utilization design | Needle gripper |
| Size | AP/AE |
| Needle stroke Z(NA) | 3 (mm) |
부속품
BEF-PL 38x15x11.5 G1/4-IG SNG10.01.29.00403Mounting plate
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Utilization design | Needle gripper |
HTS-A2 SNG AP/AE OP10.01.29.00622Holder system
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
HTS-A3 SNG AP/AE OP10.01.29.00619Holder system
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
HPS-SNG 2M6 AP/AE OP10.01.29.00666Holder system
| Utilization design | Needle gripper |
| Connection profile | |
| Size | AP/AE |
| Shape | One piece |
SET SNG AP-Sensor10.01.29.00400Retrofit kit
| Utilization design | Needle gripper |
| Size | AP-Sensor |
| contains | Sensor + mounting material |
STV-W M5-AG 610.08.02.00296Push-in Fitting, swivelling
elbow
| Pressure range (operating pressure) [bar] | bar |
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
STV-GE M5-AG 610.08.02.00201Push-in Fitting, straight
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.8 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
