| Reservoir volume | 30 (l) |
| with | Filter |
| Width B | 443 (mm) |
| Height H | 346 (mm) |

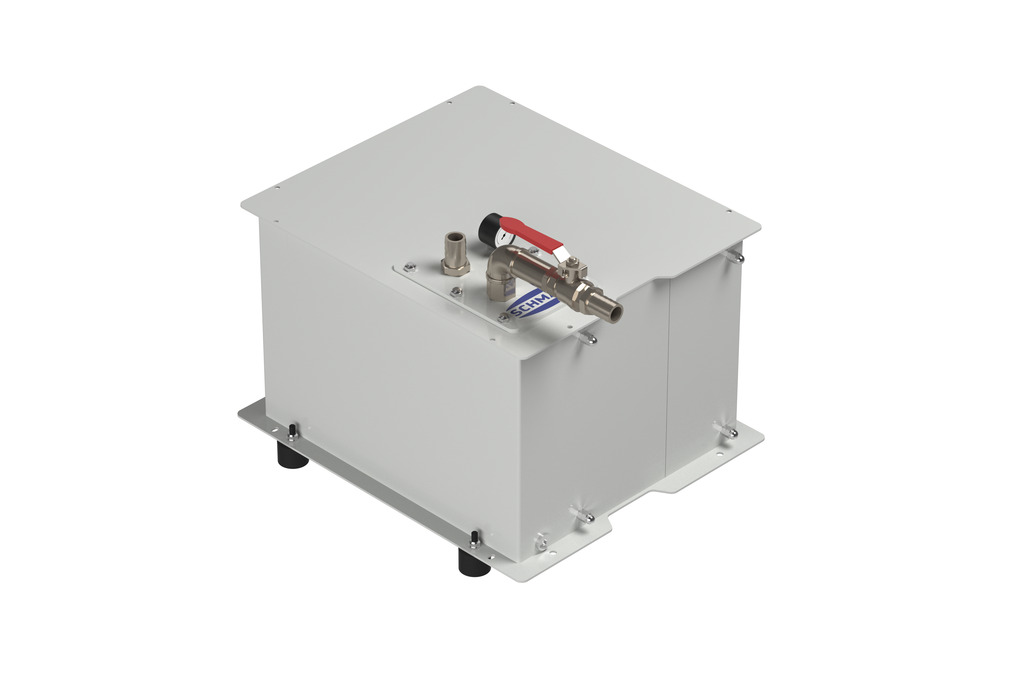

Vacuum reservoir keeps the workpiece safe in the event of a brief power failure
Ready-to-connect solution for immediate use
Base housing with optional wheels for flexible, mobile use
Ontwerp
Ontwerp

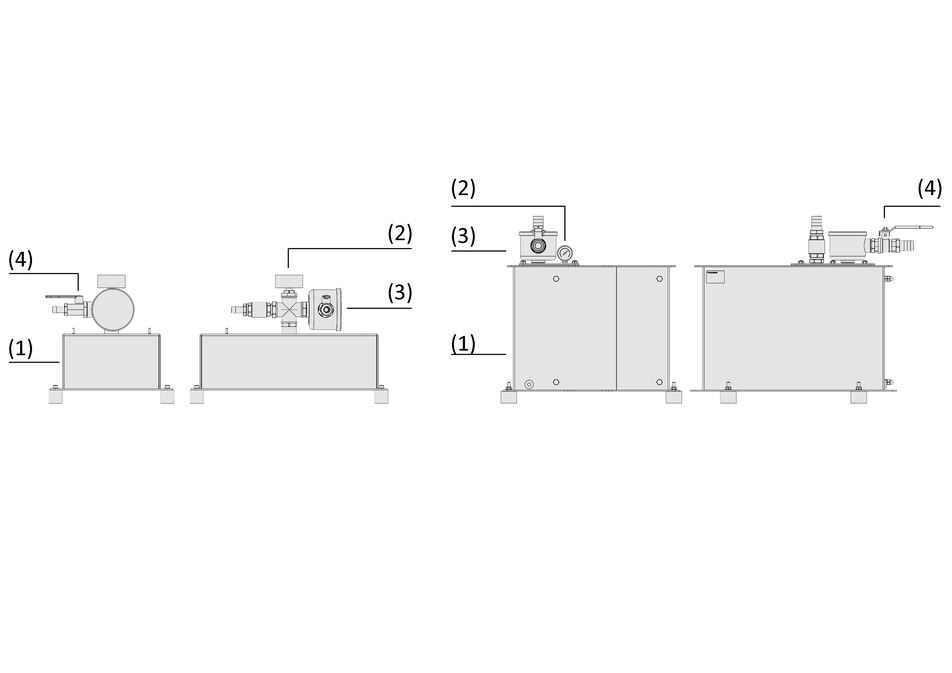

- Base housing (1) with reservoir (2), integrated non-return valve and vacuum gauge (3), optional wheels for mobile use
- Vacuum connection incl. solids filter (4) to prevent dirt from entering the reservoir and ball valve (5)
Technische gegevens
Technische gegevens
- Storage capacity 10, 30, 50 and 100 l
- Integrated non-return valve
- Integrated filter
- Integrated vacuum display
Documentatie
Documentatie
De bijbehorende documentatie voor dit product is beschikbaar in deze sectie.
| Documenten | Taal |
|---|---|
| Nederlands |
De documentatie is ook volledig beschikbaar in het Engels.
| Documenten | Taal |
|---|---|
| Engels |
1 - 4 van 4 resultaten
| Reservoir volume | 10 (l) |
| with | Filter |
| Width B | 281 (mm) |
| Height H | 307 (mm) |
| Reservoir volume | 50 (l) |
| with | Filter |
| Width B | 443 (mm) |
| Height H | 346 (mm) |
| Reservoir volume | 100 (l) |
| with | Filter |
| Width B | 593 (mm) |
| Height H | 346 (mm) |
