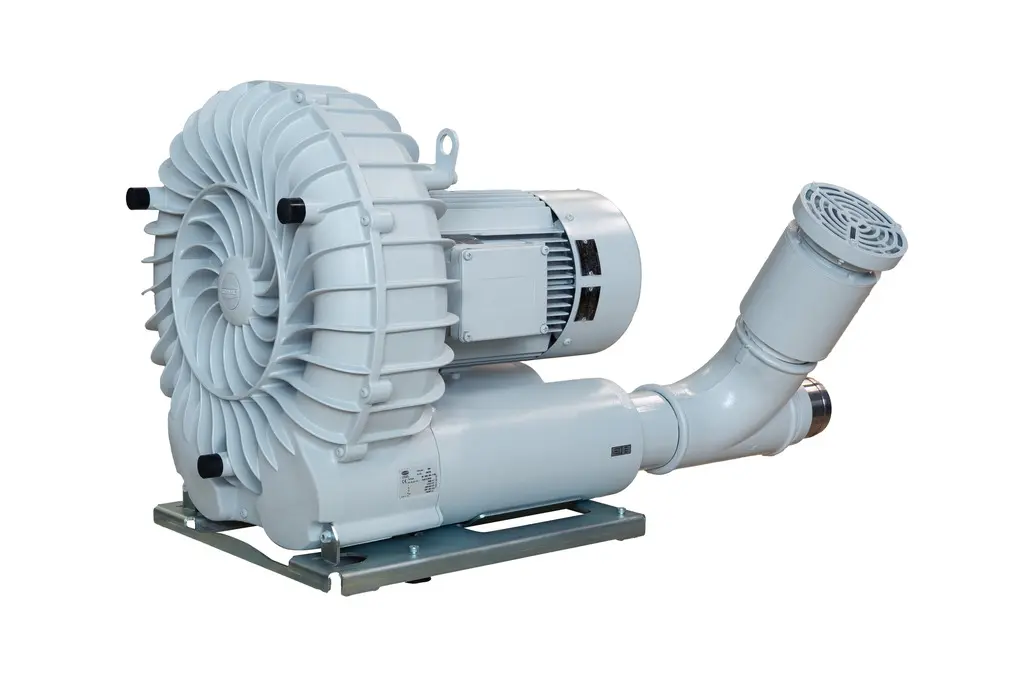

Dmuchawa o bardzo dużej wydajności ssania zoptymalizowana dla materiałów porowatych
Obudowa i wirnik wykonane z aluminiowego odlewu ciśnieniowego gwarantują bezwibracyjną pracę i wysoką prędkość pompowania
Szeroki wachlarz usług dla kompleksowego pokrycia wymagań klientów
Dokumentacja dopasowania dla tego produktu jest dostępna w tej sekcji.
| Dokumenty | Język |
|---|---|
| Polska |
Dokumentacja jest również w pełni dostępna w języku angielskim.
| Dokumenty | Język |
|---|---|
| Język angielski |
1 - 10 z 52 wyników
| Suction rate (50 Hz) | 765 (m³/h) |
| Suction rate (60 Hz) | 915 (m³/h) |
| Vacuum (50 Hz) | 280 (mbar) |
| Vacuum (60 Hz) | 260 (mbar) |
| Rated power at 50 Hz | 7.5 (kW) |
| Rated power at 60 Hz | 9 (kW) |
| Voltage at 50 Hz | D400 V ±10 % |
| Voltage at 60 Hz | D460 V ±10 % |
| Voltage 60 Hz | S071 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 112 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 765 (m³/h) |
| Suction rate (60 Hz) | 915 (m³/h) |
| Vacuum (50 Hz) | 280 (mbar) |
| Vacuum (60 Hz) | 260 (mbar) |
| Rated power at 50 Hz | 7.5 (kW) |
| Rated power at 60 Hz | 9 (kW) |
| Voltage at 60 Hz | 400 / 460 V AC |
| Voltage 60 Hz | 400/460-AC |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 113 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 390 (m³/h) |
| Suction rate (60 Hz) | 470 (m³/h) |
| Vacuum (50 Hz) | 315 (mbar) |
| Vacuum (60 Hz) | 290 (mbar) |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 50 Hz | D230 V / Y400 V ±10 % |
| Voltage at 60 Hz | D265 V / Y460 V ±10 % |
| Voltage 60 Hz | S065 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 53 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 390 (m³/h) |
| Suction rate (60 Hz) | 470 (m³/h) |
| Vacuum (50 Hz) | 315 (mbar) |
| Vacuum (60 Hz) | 290 (mbar) |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Voltage 60 Hz | S069 |
| Version | IE3:JPN/KOR/BRA |
| Approval | IE3 |
| Weight | 53 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (60 Hz) | 470 (m³/h) |
| Vacuum (60 Hz) | 290 (mbar) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 60 Hz | D230 / Y460 V |
| Voltage 60 Hz | S058 |
| Version | IE3:US/CAN |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 53 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 510 (m³/h) |
| Suction rate (60 Hz) | 610 (m³/h) |
| Vacuum (50 Hz) | 200 (mbar) |
| Vacuum (60 Hz) | 175 (mbar) |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 50 Hz | D230 V / Y400 V ±10 % |
| Voltage at 60 Hz | D265 V / Y460 V ±10 % |
| Voltage 60 Hz | S065 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 61.5 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 510 (m³/h) |
| Suction rate (60 Hz) | 610 (m³/h) |
| Vacuum (50 Hz) | 200 (mbar) |
| Vacuum (60 Hz) | 175 (mbar) |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Voltage 60 Hz | S069 |
| Version | IE3:JPN/KOR/BRA |
| Approval | IE3 |
| Weight | 61.5 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (60 Hz) | 610 (m³/h) |
| Vacuum (60 Hz) | 175 (mbar) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 60 Hz | YY230 / Y460 V ±10 % |
| Voltage 60 Hz | S067 |
| Version | IE3:US/CAN |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 61.5 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 375 (m³/h) |
| Suction rate (60 Hz) | 435 (m³/h) |
| Vacuum (50 Hz) | 390 (mbar) |
| Vacuum (60 Hz) | 340 (mbar) |
| Rated power at 50 Hz | 5.5 (kW) |
| Rated power at 60 Hz | 6.6 (kW) |
| Voltage at 50 Hz | D400 V ±10 % |
| Voltage at 60 Hz | D460 V ±10 % |
| Voltage 60 Hz | S071 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 89 (kg) |
| Color | RAL 7035 Light grey |
| Suction rate (50 Hz) | 375 (m³/h) |
| Suction rate (60 Hz) | 435 (m³/h) |
| Vacuum (50 Hz) | 390 (mbar) |
| Vacuum (60 Hz) | 340 (mbar) |
| Rated power at 50 Hz | 5.5 (kW) |
| Rated power at 60 Hz | 6.6 (kW) |
| Voltage at 50 Hz | D400 V ±10 % (without IE3) |
| Voltage at 60 Hz | D460 V ±10 % |
| Voltage 60 Hz | S071 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 89 (kg) |
| Color | RAL 7035 Light grey |
