- NEW
VCBL-S6-HD 140x130x110 TV
Part no.: 10.01.12.05504
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 140x130 |
| Height H | 110 (mm) |
| Additional function vacuum block | Touch valve |

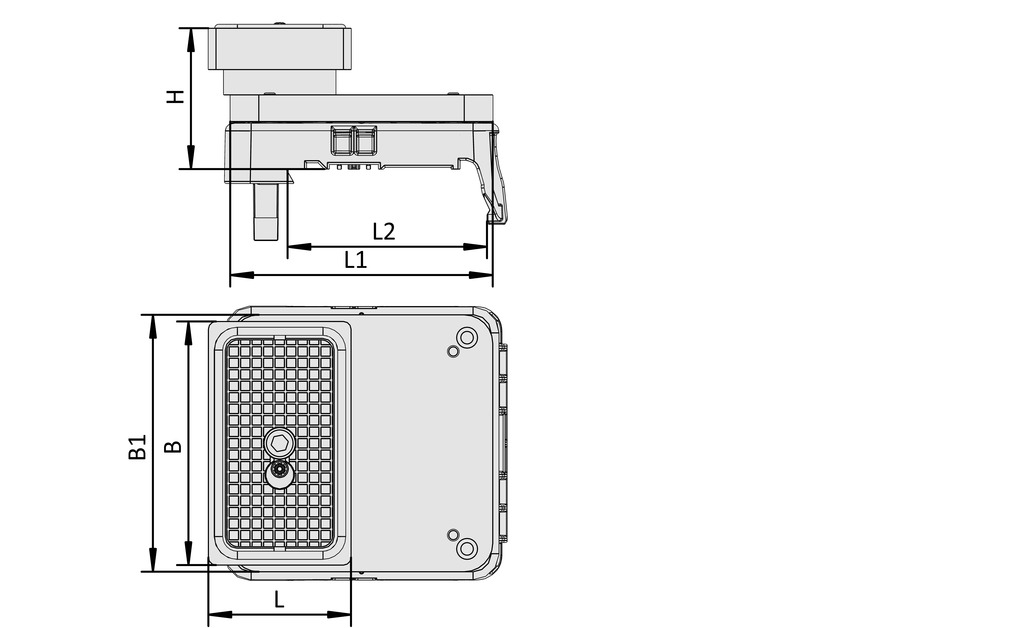

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B1 | 130 mm |
| H | 110 mm |
| L | 140 mm |
| L1 | 130 mm |
| L2 | 104 mm |
Documentation
Documentation
Spare parts
VCSP-O 140x130x19.5 RB AL10.01.12.05404Suction-Plate for vacuum block,
(top)
| Length L | 140 (mm) |
| Width B | 130 (mm) |
| Dimension (LxW) | mm |
| Height H | 19.5 (mm) |
| Material | Aluminum |
| Additional function vacuum block | Friction pad |
DI-PROF 4x6x47610.01.12.05401Sealing section for construction
of specific gripper solutions
| Length L | 476 (mm) |
| Width B | 4 (mm) |
| Dimension (LxW) | mm |
| Height H | 6 (mm) |
O-RING 50x2.5 NBR-7010.07.08.00073O-ring
| Dimension (LxW) | mm |
| Internal diameter d | 50 (mm) |
| Material | Nitrile rubber NBR |
TV D9 4.310.01.12.02514Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Outside diameter D | 9 (mm) |
| Spring stroke Z | 4.3 (mm) |
| Length L | 22.8 (mm) |
