SVS-GE M20x1.5-AG G3/8-IG 30
Part no.: 10.08.03.00318
Bulkhead connector, straight with Nuts
| Thread G1 | M20x1.5-M |
| Thread G2 | G3/8"-F |
| Length L | 30 (mm) |
Design Data
Design Data

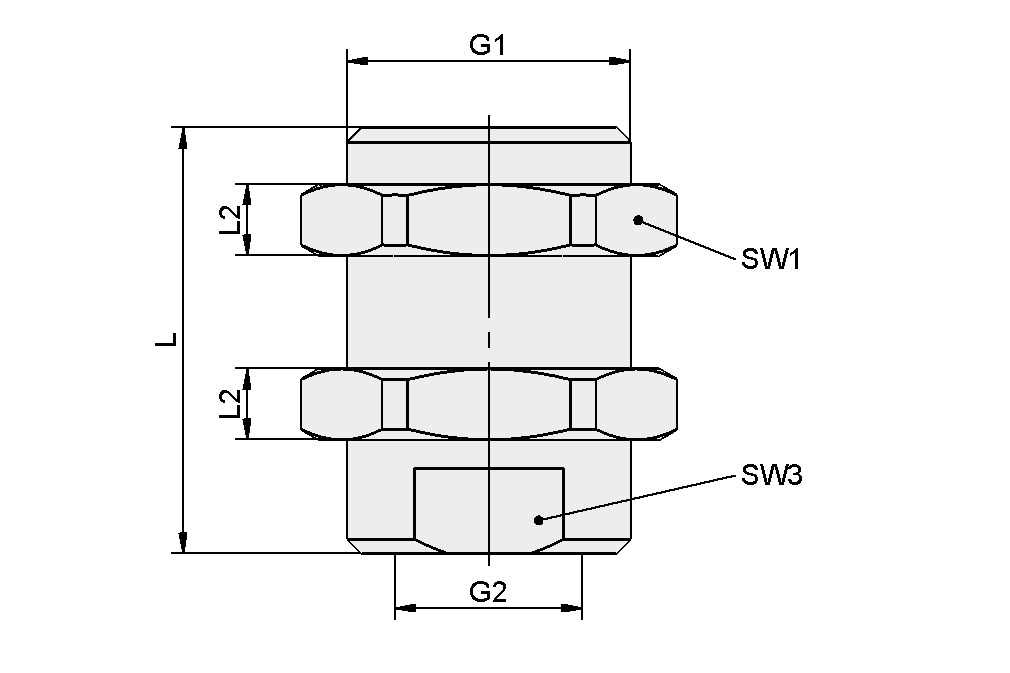

| Attribute | Value |
|---|---|
| G1 | M20x1.5-M |
| G2 | G3/8"-F |
| L | 30 mm |
| L2 | 5 mm |
| SW1 | 24 mm |
| SW3 | 19 mm |
