AP-G-145x130x26
Part no.: 10.01.12.03876
Adapter-Plate AP for usage of Vacuum Blocks VCBL-B and VCBL-S6-CUP
| for | Flat table systems |
| Working height H (AH) | 100 (mm) |
| Length L | 145 (mm) |
| Width B | 130 (mm) |
| Height H | 26 (mm) |
Modular system of Adapter-Plate and suction cups offers maximum flexibility with short set-up times
Vacuum blocks of different heights allow several working heights and, depending on the machine, also 5-axis machining
Friction pad milled to size on the underside optimized for smooth surfaces
Push-button for manual ventilation of the underside allows quick positioning without switching off the vacuum
Unused vacuum blocks VCBL-B can remain on the machine table thanks to the touch valve
Design
Design

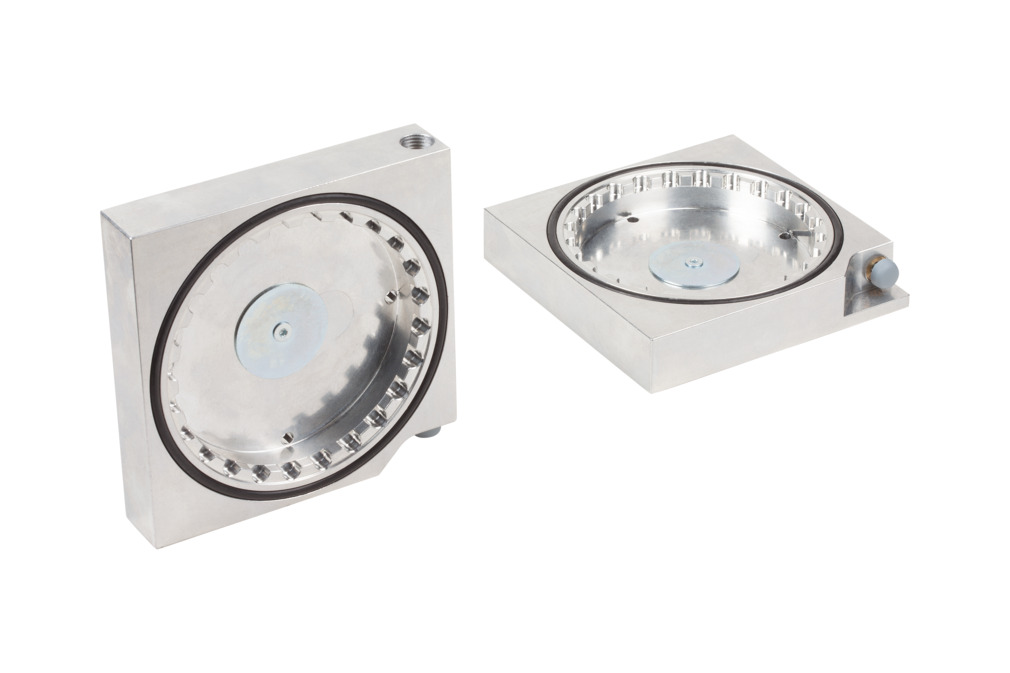

- Robust main body (1) made of aluminum
- Push button (2) for manual blow-off of the Adapter-Plate during positioning
- Special friction pad on the bottom (3)
- Replaceable foam rubber seal (4) for applying suction to the MDF sheet
- Suction cup mount (5) matches vacuum blocks VCBL-B
Technical Data
Technical Data
- Vacuum system for nesting machine tables
- With a hose connection
- Target value for operating vacuum: -600 mbar
Documentation
Documentation
The matching documentation for this product is available in this section.
