Vacuum Lifting Cylinders HS

Stroke 14 mm and 28 mm
Go directly to the products

Vacuum-actuated automatic stroke safely separates thin, air-permeable workpieces

Design
  • Lifting suction cup consisting of a piston rod and anodized aluminum housing
  • In idle position, the piston rod is retracted
  • Piston rod is extended, when vacuum is applied
  • As soon as the suction cup touches the workpiece, the piston rod is retracted, lifting the workpiece before the "suck-through" effect is generated
  • Delivery without suction cup
Technical Data
  • Body of aluminium with integrated lifting cylinder
  • Connection thread M5 and G1/8” for suction cups
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Vietnamese

The documentation is also fully available in English.

DocumentsLanguage
English

Filter results

Stroke Z
Product family

1 - 2 from 2 results

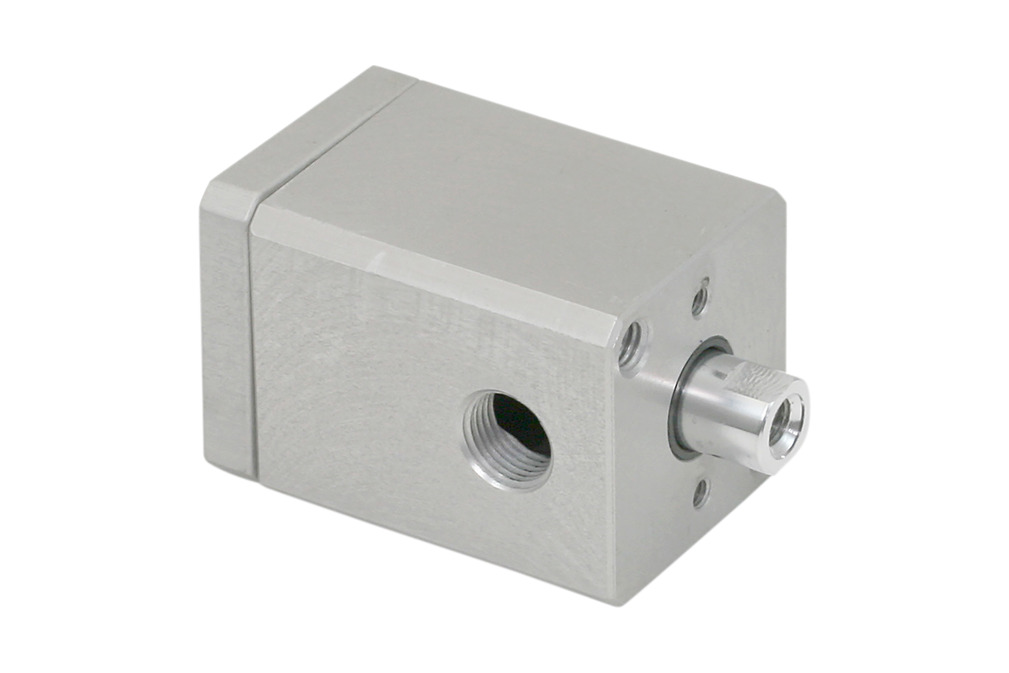

HS 14-22 M5-IG

Part no.: 10.01.07.00014

Vacuum lifting cylinder for rapid separation of paper and plastic film

Stroke Z14 (mm)
Vacuum connectionG1/8"-F
Suction cup connectionM5-F
HS 28-32 G1/8-IG

Part no.: 10.01.07.00001

Vacuum lifting cylinder for rapid separation of paper and plastic film

Stroke Z28 (mm)
Vacuum connectionG1/8"-F
Suction cup connectionG1/8"-F
