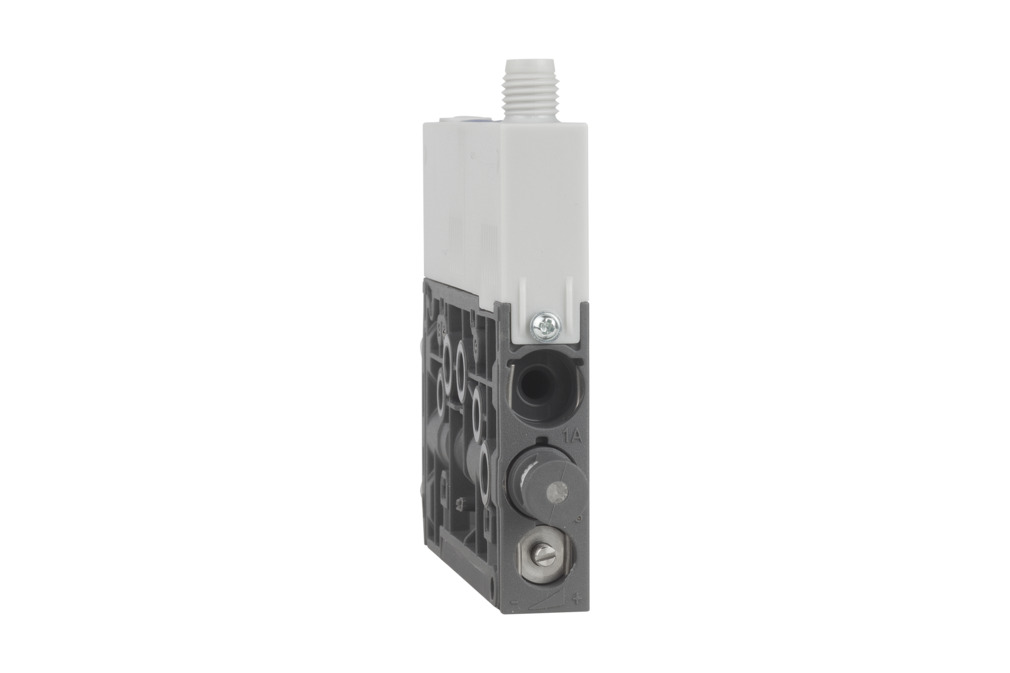

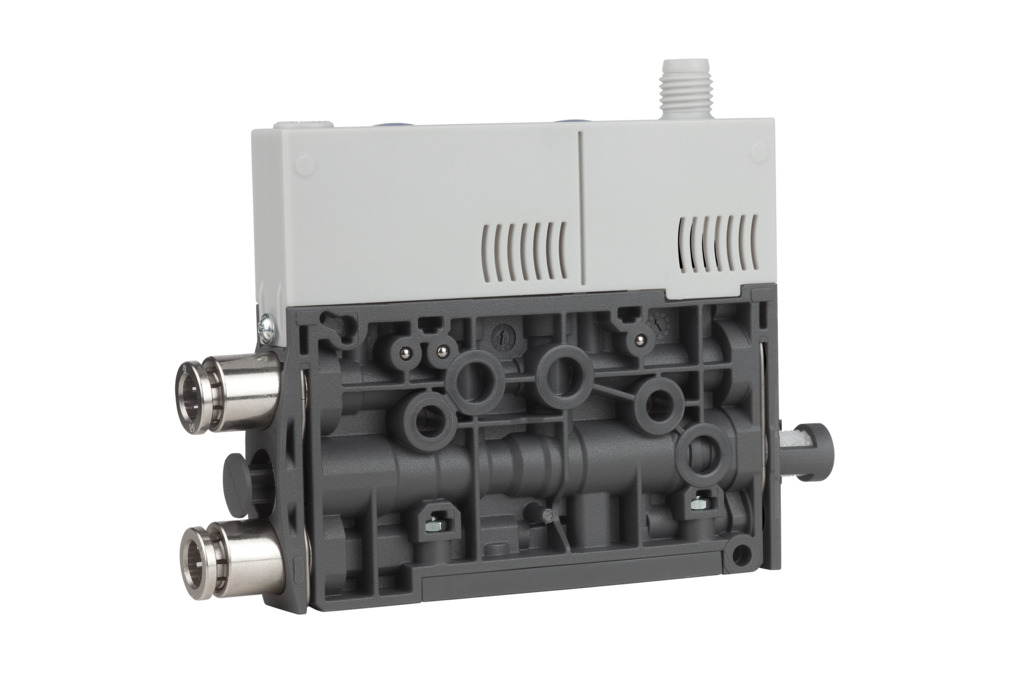

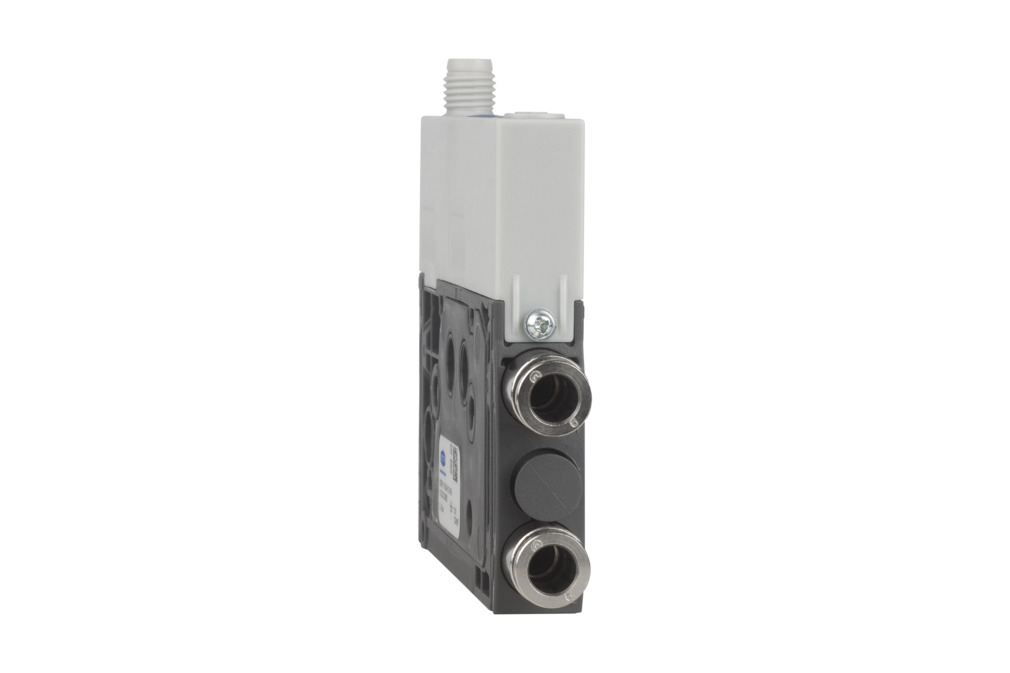

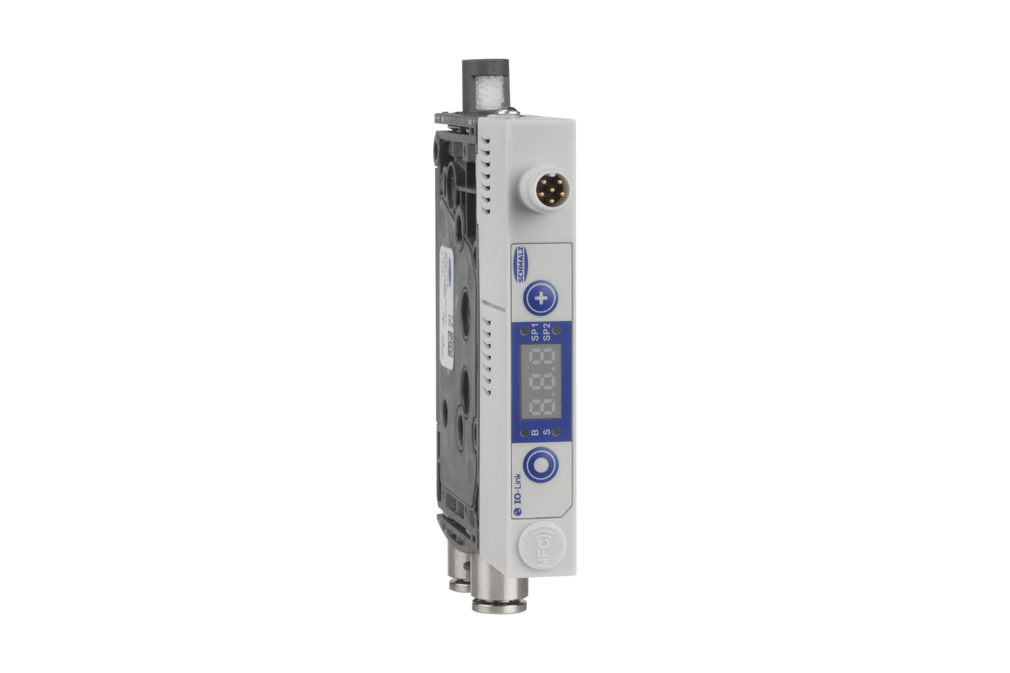

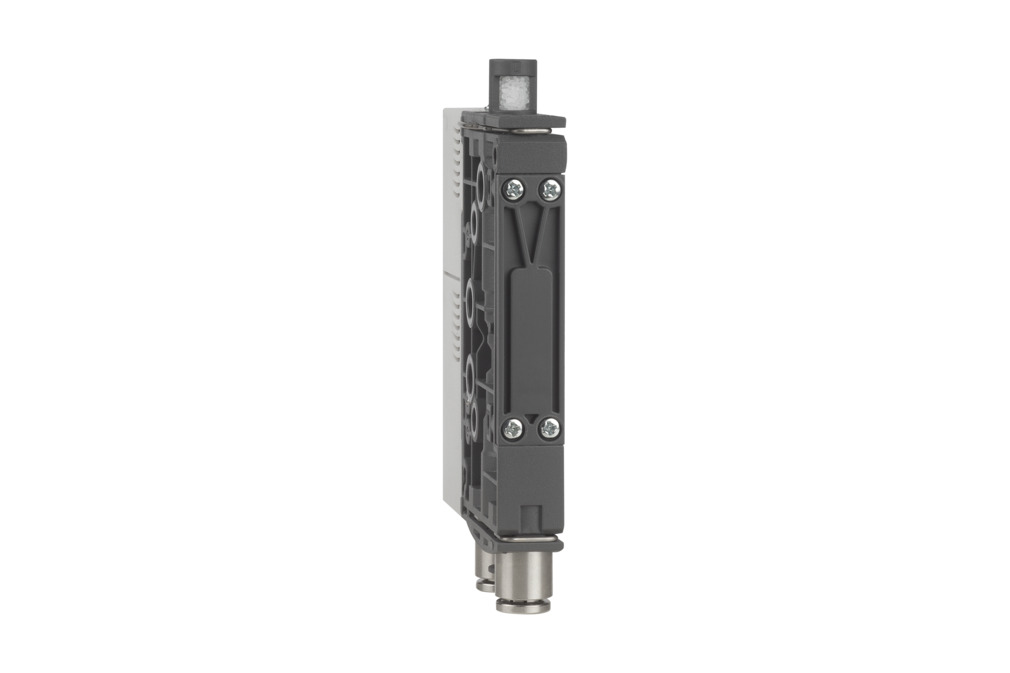

SCPMi 10 S04 NO M8-6 ABU
Part no.: 10.02.02.05758
Mini Compact Ejector with minimum size
| Nozzle size | 1,0 mm |
| Connection | Hose D6(1)-D6(2) |
| Suction rate (max.) | 28 (l/min) |
| Air consumption suction | 45 (l/min) |
| Sound pressure level free | 71 (dB(A)) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Max. vacuum | 870 (mbar) |
| Electrical connection | Male connect M8, 6 pole |
| Control valve | Normally open |
| Protection type IP | IP 40 |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 12 mm |
| B1 | 12,5 mm |
| D | 9 mm |
| d1 | 6,2 mm |
| d2 | 6,2 mm |
| d4 | 4,3 mm |
| G3 | M8x1-M |
| H | 65,3 mm |
| H1 | 73,9 mm |
| H2 | 24,95 mm |
| H3 | 7,5 mm |
| H4 | 30 mm |
| H5 | 7,5 mm |
| H6 | 17,5 mm |
| L | 76,5 mm |
| L1 | 98,3 mm |
| L2 | 11,4 mm |
| L3 | 20,5 mm |
| X1 | 36 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nozzle size | 1,0 mm |
| Control valve | NO |
| Electrical connection | M8-6 |
| Degree of evacuation | 87 % |
| Suction rate (max.) | 28 l/min |
| Air consumption suction | 45 l/min |
| Max. air consumption blow-off | 10 l/min |
| Max. vacuum | 870 mbar |
| Optimal operating pressure | 4,5 bar |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Recommended hose internal diameter compressed air | 4 mm |
| Recommended hose internal diameter vacuum | 4 mm |
| Operating temperature | 0 ... 50 °C |
| Weight | 84 g |
| Product family | SCPMi |
| Configurator code | ABU |
Performance Data
Performance Data
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
E-Plan Macro
E-Plan Macro
Documentation
Documentation
Software
Software
The matching software for this product is available in this section.
| Documentation | Language |
|---|---|
| English | |
| English |
Spare parts
SD-EINS 6.4x21.8 SCPMi/c/b10.02.02.05403Silencer insert
| Utilization design | Mini compact ejector SCPMi/c/b |
| Outside diameter D | 6.4 (mm) |
| Length L | 21.8 (mm) |
Accessories
ASK WB-M8-6 2000 K-6P21.04.05.00488Connection cable
| Electrical connection | |
| Cable length | 2000 (mm) |
| Connection 2 | Cable, 6-pole |
| Material hose | PUR cable |
ASK WB-M8-6 2000 S-M12-521.04.05.00489Connection cable
| Electrical connection | |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
ASK B-M8-6 5000 K-6P21.04.05.00255Connection cable
| Electrical connection | Fem connect M8, 6 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 6-pole |
| Material hose | PUR cable |
ASV SCPMi B-M8-6 2xS-M12-410.02.02.05602Connection distributor
| Electrical connection | Fem connect M8, 6 pol |
| Length L | 1000 (mm) |
| Connection 2 | 2x plug M12, 4-pole |
SD 10.5x31.7 SCPM10.02.02.05807Silencer for vacuum generators
| Outside diameter D | 10.5 (mm) |
| Length L | 31.7 (mm) |
| Utilization design | SCPM |
STV-GE M5-AG 410.08.02.00468Push-in Fitting, straight
| Thread G1 | M5-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Outside diameter D | 7.9 (mm) |
| Length L | 15 (mm) |
STV-GE M7-AG 610.08.02.00469Push-in Fitting, straight
| Thread G1 | M7-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.5 (mm) |
ADP-G M7-IG 10.8x7.9 SCPMi/c/b10.02.02.05522Thread adapter (inst)
| Outside diameter D | 10.8 (mm) |
| Thread G1 | M7-F |
| Length L | 7.9 (mm) |
| Utilization design | SCPMi/c/b |
ADP-G M5-IG 10.5x8.6 SCPMi/c/b10.02.02.05643Thread adapter (inst)
| Outside diameter D | 10.5 (mm) |
| Thread G1 | M5-F |
| Length L | 8.6 (mm) |
| Utilization design | SCPMi/c/b |
