Eco nozzle technology allows high suction rate with minimized compressed air consumption
Integrated air saving function reduces compressed air consumption by up to 80 %
IO-Link simplifies commissioning and access to device and process data
Vacuum parameters on bright display or LED bar display very easy to read
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| Vietnamese |
The documentation is also fully available in English.
| Documents | Language |
|---|---|
| English |
The matching software for this product is available in this section.
| Software | Language |
|---|---|
| English |
1 - 10 from 66 results
Part no.: 10.02.02.07501
Compact ejector with air-saving control and display in slim design
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |

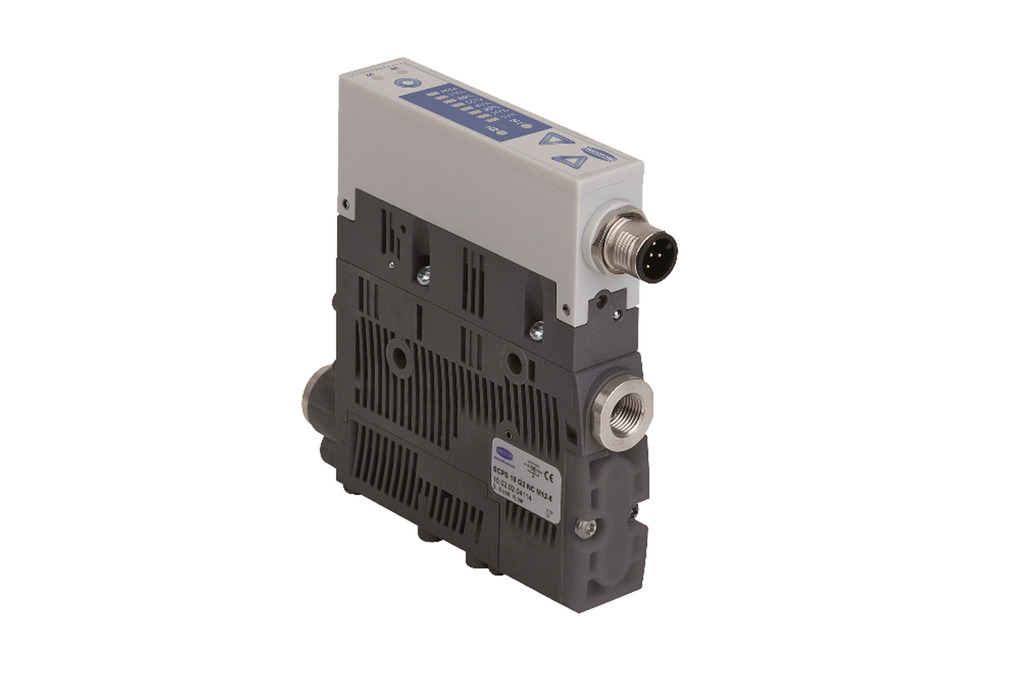

Part no.: 10.02.02.04112
Compact ejector with integrated air saving control in narrow design
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |

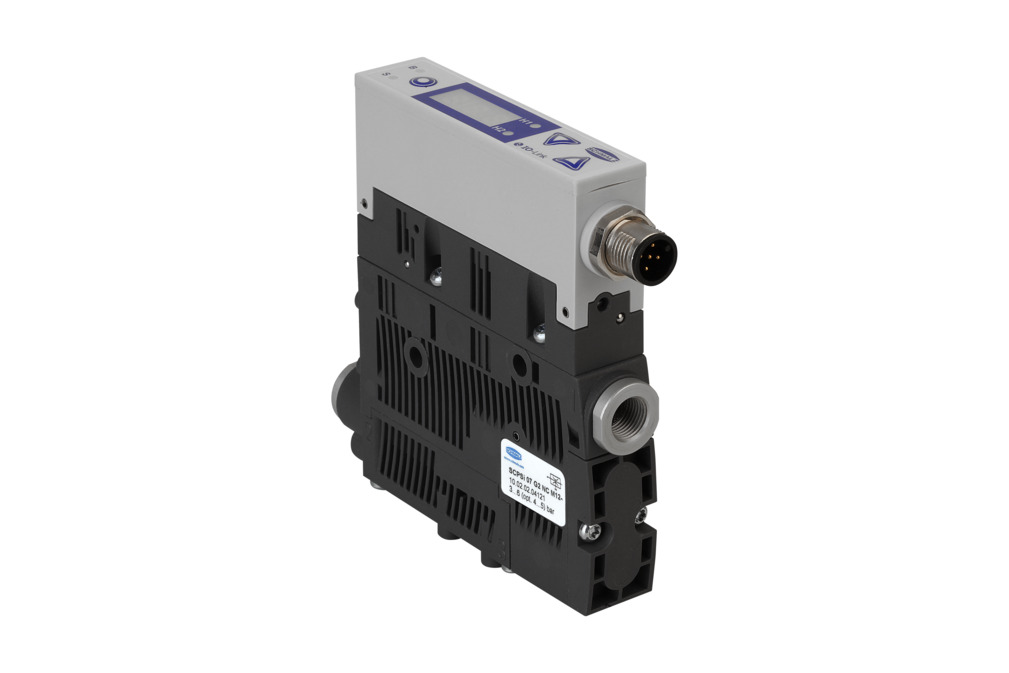

Part no.: 10.02.02.04121
Compact ejector with integrated air- saving control in slim design and IO-Link functionality
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
Part no.: 10.02.02.06750
Compact ejector with integrated air saving control in narrow design
| Nozzle size | 07 |
| Shape compact ejectors | Power blow-off |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |

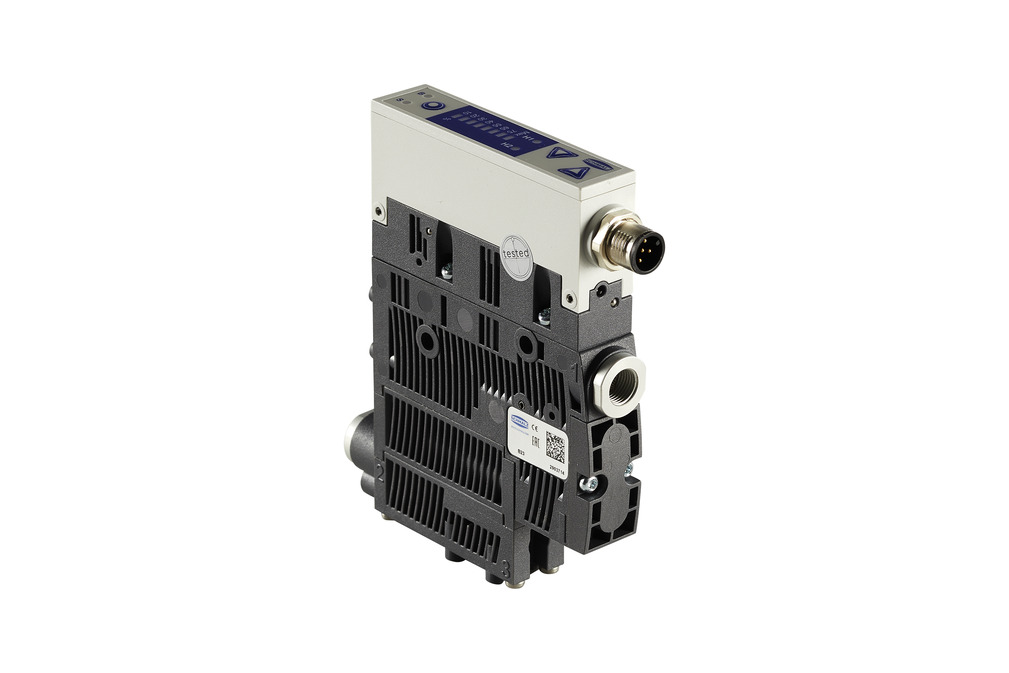

Part no.: 10.02.02.06763
Compact ejector with integrated air saving control in narrow design
| Nozzle size | 07 |
| Shape compact ejectors | Power blow-off |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | NPN switching |
Part no.: 10.02.02.06753
Compact ejector with integrated air- saving control in slim design and IO-Link functionality
| Nozzle size | 07 |
| Shape compact ejectors | Power blow-off |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
Part no.: 10.02.02.07505
Compact ejector with air-saving control and display in slim design
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |
Part no.: 10.02.02.04111
Compact ejector with integrated air saving control in narrow design
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |
Part no.: 10.02.02.04120
Compact ejector with integrated air- saving control in slim design and IO-Link functionality
| Nozzle size | 07 |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Functionality of the ejector | Digital air-saving function |
Part no.: 10.02.02.06756
Compact ejector with integrated air saving control in narrow design
| Nozzle size | 07 |
| Shape compact ejectors | Power blow-off |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Functionality of the ejector | Digital air-saving function |
| Construction vacuum switch | PNP switching |
