Portable Conveyor Systems Destuff-it™ / Restuff-it™
Ergonomic systems for loading and unloading floor-loaded freight carriers such as trucks or containers
The portable conveyor system Destuff-it™ increases efficiency when unloading containers or trailers and at the same time improves operators’ ergonomics. By optimally aligning the conveyor belt with the package wall, the unloading process is accelerated, while fatigue and muscle strain are significantly reduced. This leads to higher throughput, larger handling capacity and long-term preservation of health workforce.
For equally efficient loading, Restuff-it™ ideally complements the system. Together, both solutions enable maximum productivity and ergonomic working throughout the entire logistics chain - from unloading to loading freight carriers.

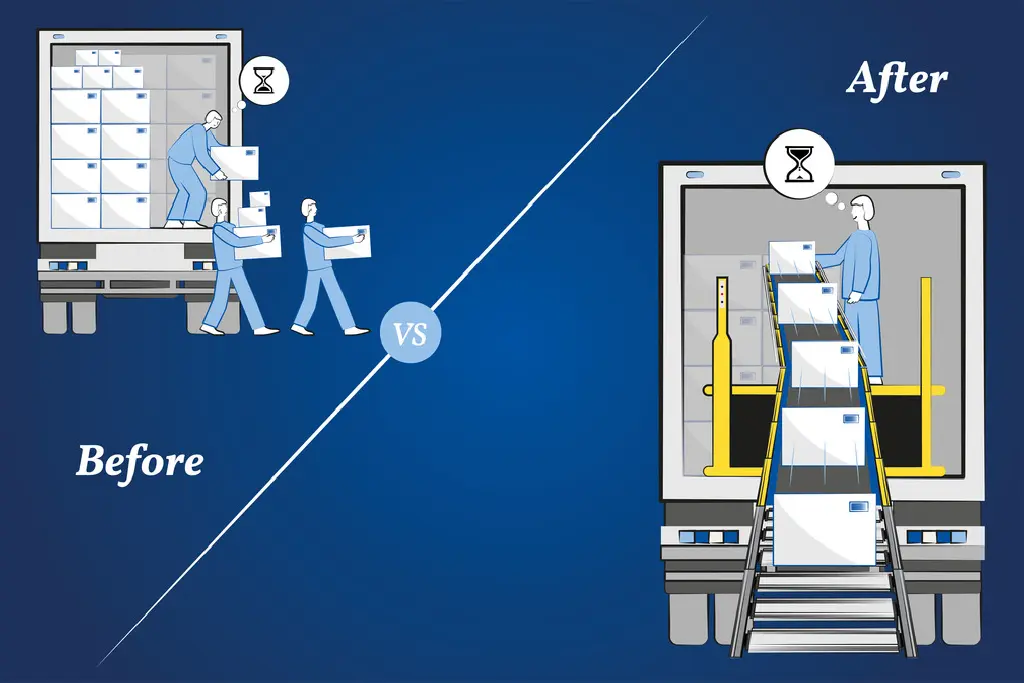

Increase productivity
Using portable conveyor systems, loading and unloading speeds can double compared to manual methods, allowing throughput rates of up to 2,000 boxes per hour
Improve dock utilization
While the products are continuously transported on the conveyor belt, the employees sort and palletize them properly at the end of the line
Improve health and safety
The flexible system head and movable operator platform ensure optimal positioning and reduce strain on employees during loading and unloading. Various sensors actively protect the operator. The result: reduced fatigue, muscle strain and injury
Worthwhile investment
Up to 50 % lower unloading costs and an ROI in under two years — even with just two containers per day
Is your investment worthwhile? Get your first ROI estimate
Would you like to know how portable conveyor systems from Schmalz can increase your ROI? Enter the most important details about your process now and receive an initial, non-binding estimate of the possible ROI in just a few steps. Experience quickly and easily how efficiency gains and cost savings can impact your application – directly, transparently and without obligation.
Modular system
Modular system
Robust operator platform (1)
Movable system head (2) for optimal alignment of the conveyor belt on the parcel wall; load capacity 75 kg at 30° incline
Handle (3) for intuitive control of the system head by pulling or pushing, including integrated hand detection sensor as a safety function
Battery-powered drive system with integrated charger (4) to drive into the container or from dock to dock
Forward moving conveyor belt (5) to transport the unloaded workpieces
Pressure mats (6) to ensure user safety when riding with the system
Sensors (7) to avoid collisions and protect people and obstacles
LED lighting and fans (8) to increase working comfort and reduce the risk of injury
Design Data
Design Data
Attribute | Type |
|---|---|
Width B | 2.060 mm |
Height H | 2,110 mm |
Length L | 3,410 mm - 3,720 mm |
Swivel conveyor width B1 | 610 mm |
Technical Data
Technical Data
Type | Weight | Power supply | Belt capacity | Belt speed | Traversing speed | Capacity of the operator platform |
|---|---|---|---|---|---|---|
Destuff-it™ / Restuff-it™ | 1680 | 400 V / 3 PH / 50 HZ | 74 | 0,45 / 0,55 | 0,254 | 250 |
