FSGA 43 NK-45 G1/4-AG FP200
Part no.: 10.01.06.06335
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Industries: Wood
| Size | 43 |
| Number of folds | 1.5 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Additional function suction cup | with flight pin 200 |

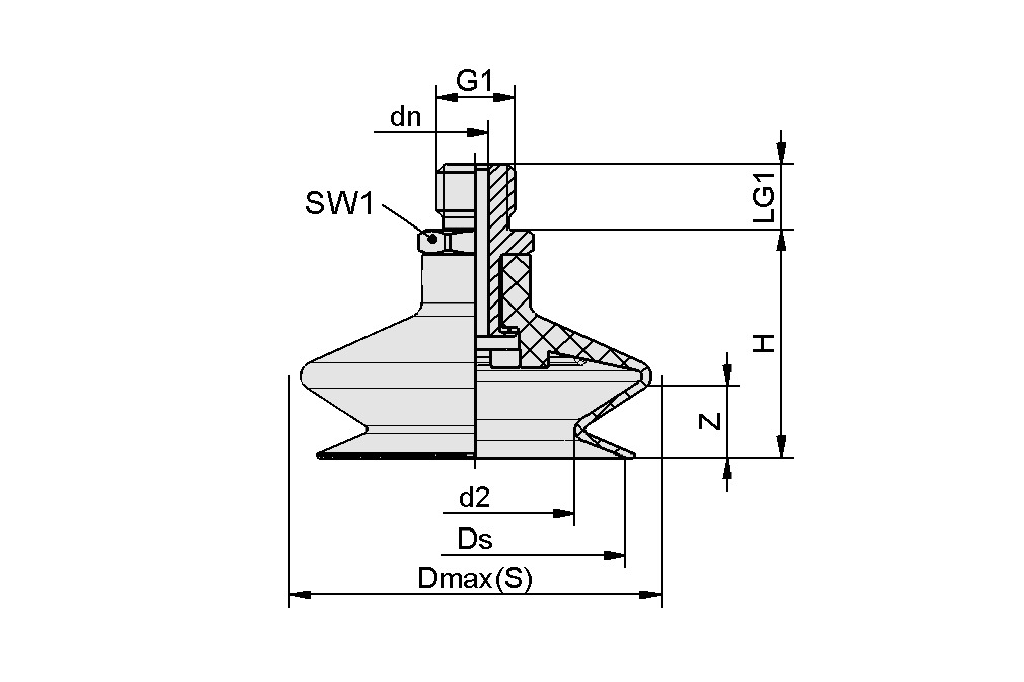

Design Data
Design Data
| Attribute | Value |
|---|---|
| Additional function suction cup | with flight pin 200 |
| H | 31,6 mm |
| dn | 1,9 mm |
| d2 | 21,9 mm |
| G1 | G1/4"-M |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 10 mm |
| Ds | 38 mm |
| Dmax(S) | 47,5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 1,5 |
| Size | 43 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 Shore A |
| Suction force (-600mbar) | 22,8 N |
| Product family | FSGA |
| Workpiece radius min. (convex) | 60 mm |
| Pull-off force | 64,5 N |
| Volume | 11,45 cm³ |
| Weight | 19 g |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
FGA 43 NK-45 N01810.01.06.00427Bellows suction cup (round)
with optimal adaptation to uneven
surfaces
| Size | 43 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Number of folds | 1.5 |
- NEW
SVN-FP-200 G1/4-AG N01810.05.03.00412Connection nipple with integrated
flow-limiting pin
| Thread G1 | G1/4"-M |
| Key width SW1 | 17 (mm) |
| Nipple family | N 018 |
- NEW
FP 20010.05.04.00174Flight pen with integrated
flow limiter
| Nominal diameter dn | 200 (mm) |
| Packaging unit | 20 pieces |
