SBPG X 50 SVE
Part no.: 10.01.45.00002
Gripping system for bin-picking applications
| Design vacuum generator | internal vacuum generation |
| Dmk | 50 (mm) |
| Type | 50-4-M6 |
| Length L | 336 (mm) |
| Gripper diameter D (GR) | 45 (mm) |
| Weight | 0.56 (kg) |

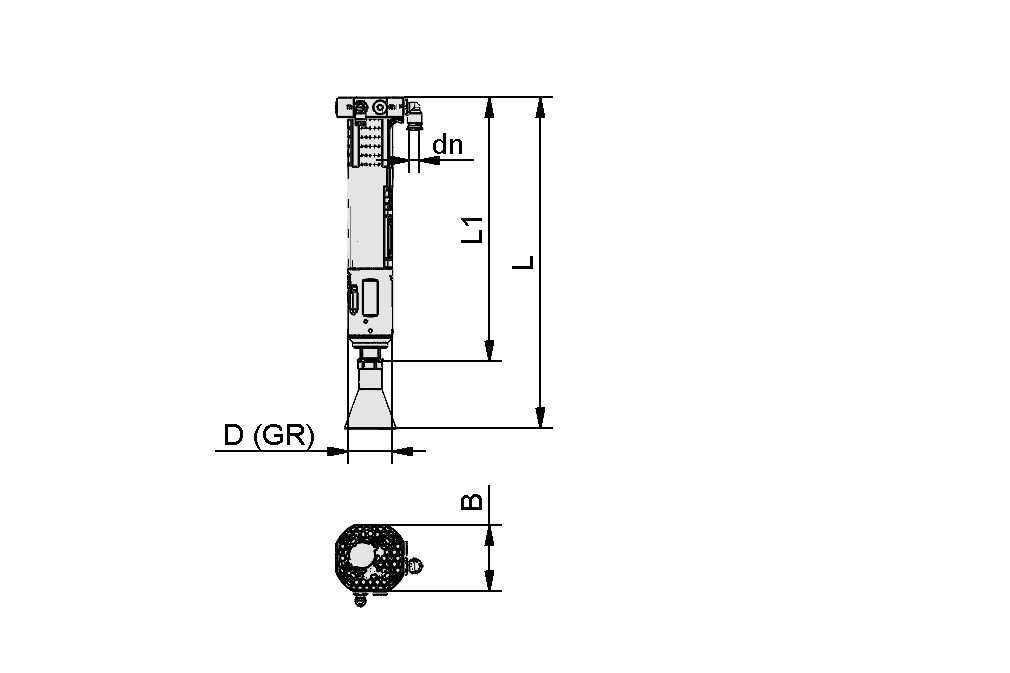

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 67 mm |
| D (GR) | 45 mm |
| dn | 8 mm |
| L | 336 mm |
| L1 | 268 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Air consumption [l/min] | 140 l/min |
| Suction force (-600mbar) | 20 N |
| Suction rate (max.) | 180 l/min |
| Sound pressure level suction | 77 dB(A) |
| Max. vacuum | 600 mbar |
| Weight | 0.56 kg |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
- NEW
SVE 53 PU-55 G3/8-AG10.01.19.00257Suction cup f. bin-picking processes
with optimum adaptation to a wide
range of workpieces
| Size | 53 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G3/8"-M |
SWA P/Pu 45 SBPG10.01.45.00008Quick-change adapter for changing
grippers without tools
| Length L | 37 (mm) |
| Utilization design | Bin Picker SBPG |
| Size | P/Pu |
| Outside diameter D | 45 (mm) |
| Color | blue |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
Accessories
VENT-BGR 24V-DC E-KET 1,8M10.01.45.00032Building group Solenoid valve
Control of vacuum and compressed air
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 1,8m |
| Length L | 1760 (mm) |
| Weight | 2.5 (kg) |
VENT-BGR 24V-DC E-KET 2,2M10.01.45.00033Building group Solenoid valve
Control of vacuum and compressed air
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 2,2m |
| Length L | 2170 (mm) |
| Weight | 2.7 (kg) |
HTR-S UNI RA10.01.45.00005Holder for flexible mounting of
suction cups
| Cross-beam connection | Universal holder |
| Suction cup connection | Rectangular adapter |
SWA 45 SBPG10.01.45.00104Quick-change adapter for changing
grippers without tools
| Utilization design | Bin Picker SBPG |
| Outside diameter D | 45 (mm) |
| Color | blue |
RFBP 50 50 SPB210.01.45.00094Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 50 (mm) |
| Width B | 50 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 100 58 SPB210.01.45.00088Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 100 58 O1010.01.45.00089Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Material type | Foam O, Height 10 mm |
RFBP 120 120 SPB210.01.45.00082Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 120 120 O1010.01.45.00083Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Material type | Foam O, Height 10 mm |
