End-of-Arm Ecosystem MATCH
- Lift capacity up to 25 kg
- Compatible with all common lightweight robots
Technical Data
Technical Data
- Ready-to-connect handling sets for robots from the manufacturer ABB
- Includes gripper, suitable flange and connection cable
Products
Lightweight Layer Grippers ZLW
- Layer gripper in lightweight construction
- Lift capacity up to 35 kg
- Max. dimensions (LxW): 850 x 650 mm
- Sealing element: sealing foam or suction cups
Modular Gripper System PXT
- Suitable flange plates for common robot types or universal flange
- Mounting profile with internal vacuum guide
- Compatible to all Schmalz components
- NEW
Sack Grippers PSSG-X
- Sack gripper with integrated vacuum generation
- Dimensions: 290 x 215 mm to 350 x 250 mm
- Material: NBR, SI
- EFFICIENT
ROB-SET ECBPMi ABB10.03.01.00865
| with | |
| for | ABB Robotics |
| Type | GoFa CRB 15000 |
| contains | Suction cup |
| and | Screws |
| Degree of evacuation | 60 (%) |

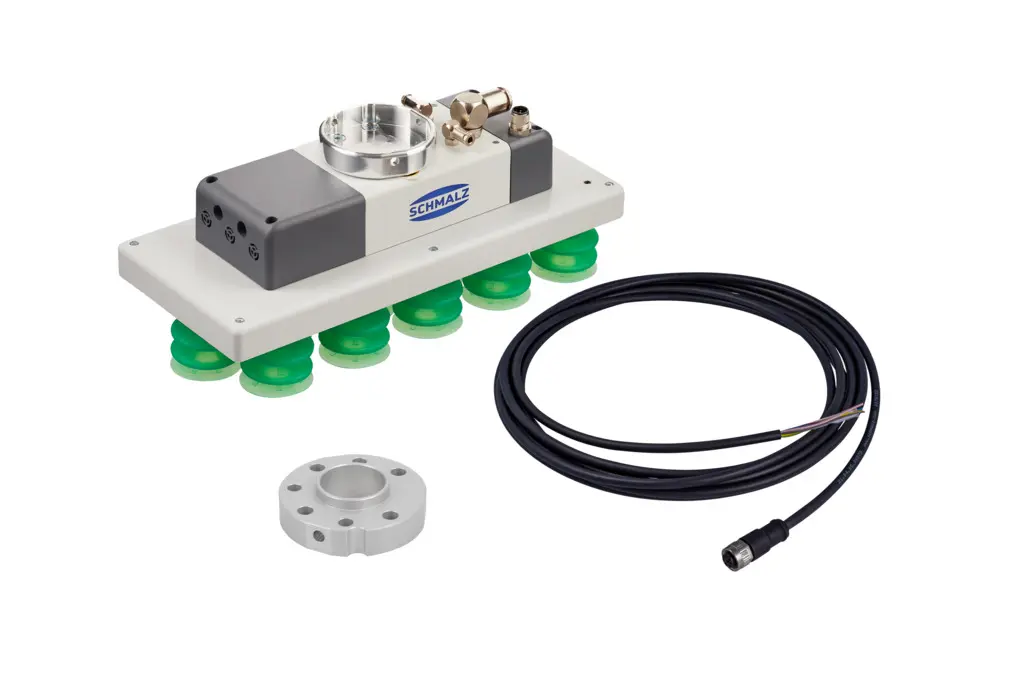

FQE RXc R 300x130 SW100 SPB210.01.44.00443
| Shape | integrated vacuum generation / Rob-set |
| Function | controlled |
| for | ABB Robotics |
| Type | CRB15000 |
| Form | Rectangular |
| Length L | 300 (mm) |
| Width B | 130 (mm) |
| Height H | 70 (mm) |
| Valve type | Flow restrictor |
| Nozzle diameter | 1 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
| Diameter Ds | 20 (mm) |
| Number of suction cells | 15 |
| Design vacuum generator | Ejector module SEP |
| Control valve | Normally open |
| Construction vacuum switch | PNP switching |
| Weight | 2.635 (kg) |

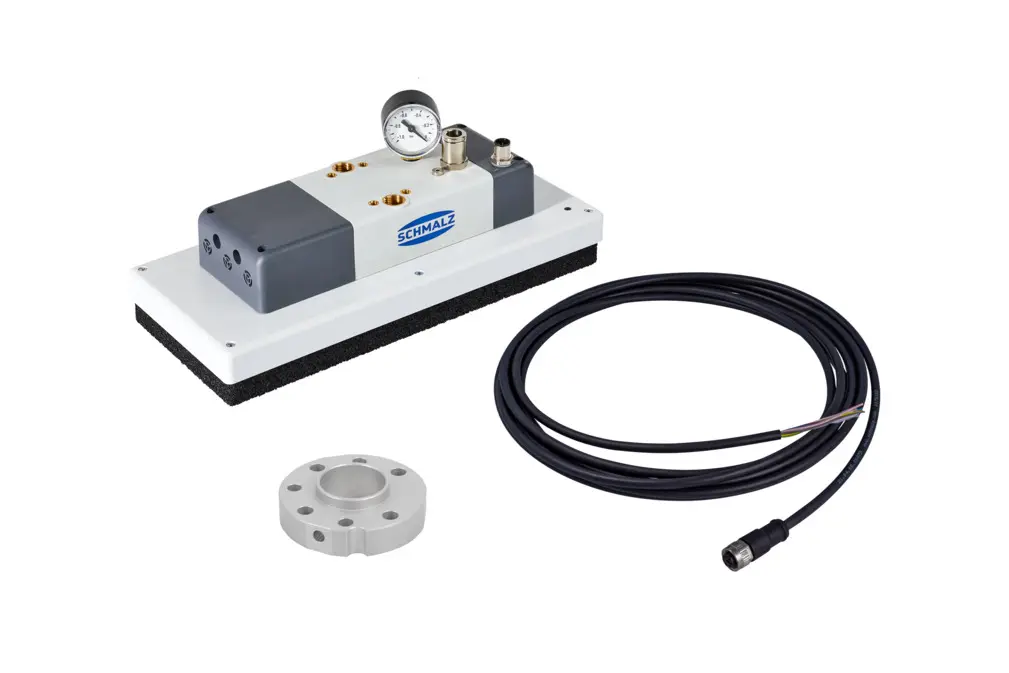

FQE RXc R 300x130 SW100 O2010.01.44.00644
| Shape | integrated vacuum generation / Rob-set |
| Function | controlled |
| for | ABB Robotics |
| Type | CRB15000 |
| Form | Rectangular |
| Length L | 300 (mm) |
| Width B | 130 (mm) |
| Height H | 86 (mm) |
| Valve type | Flow restrictor |
| Nozzle diameter | 1 (mm) |
| Number of suction cells | 35 |
| Material type | Foam open, height 20 mm |
| Design vacuum generator | Ejector module SEP |
| Control valve | Normally open |
| Construction vacuum switch | PNP switching |
| Weight | 2.021 (kg) |
