VCMC-B-QUICK 150x135x74 15-85
Part no.: 10.01.12.04752
Mechanical clamp for narrow and frame parts, Biesse console
| Shape | QUICK |
| Dimension (LxW) | 150x135 |
| Height H | 74 (mm) |
| Stroke Z | 9 (mm) |
| Clamping range [mm] | 15.0 ... 85.0 mm |

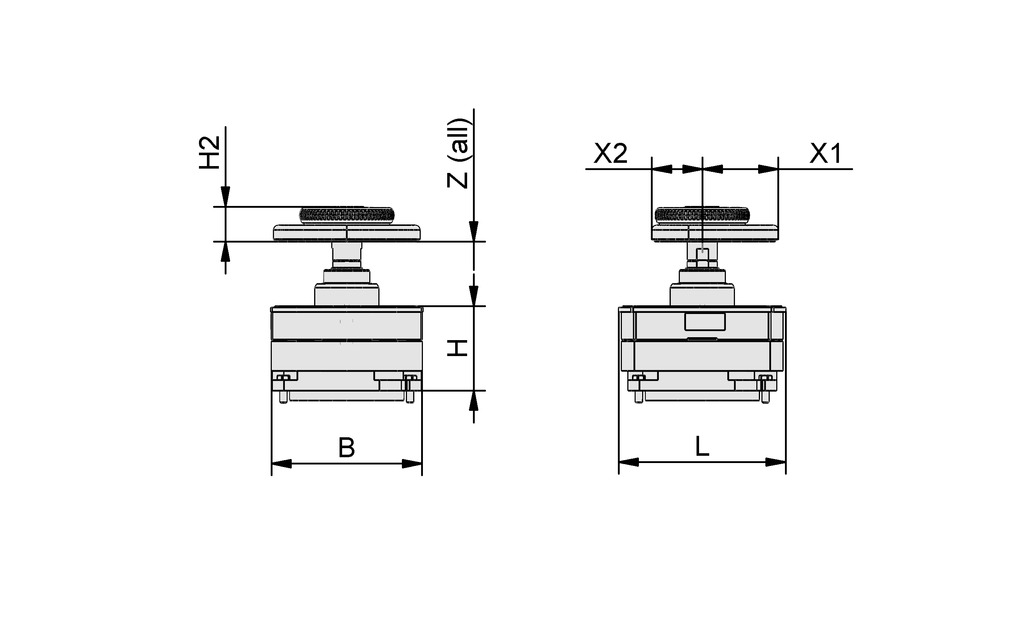

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 133 mm |
| H | 74 mm |
| H2 | 30 mm |
| L | 146.4 mm |
| X1 | 66.5 mm |
| X2 | 44 mm |
| Z (Stroke) | 9 mm |
Documentation
Documentation
Spare parts
SPAN-TELL 110x30 EXZ VCMC10.01.12.04688Clamping disc for mechanical clamp
VCMC
| Outside diameter D | 110 (mm) |
| Height H | 30 (mm) |
| Installation position | EXZ |
| Utilization design | Mechanical clamp VCMC |
