MO-PROF 25x30x3000 1TN AL
Part no.: 26.07.01.00498
Aluminium profile for construction of vacuum-gripping systems

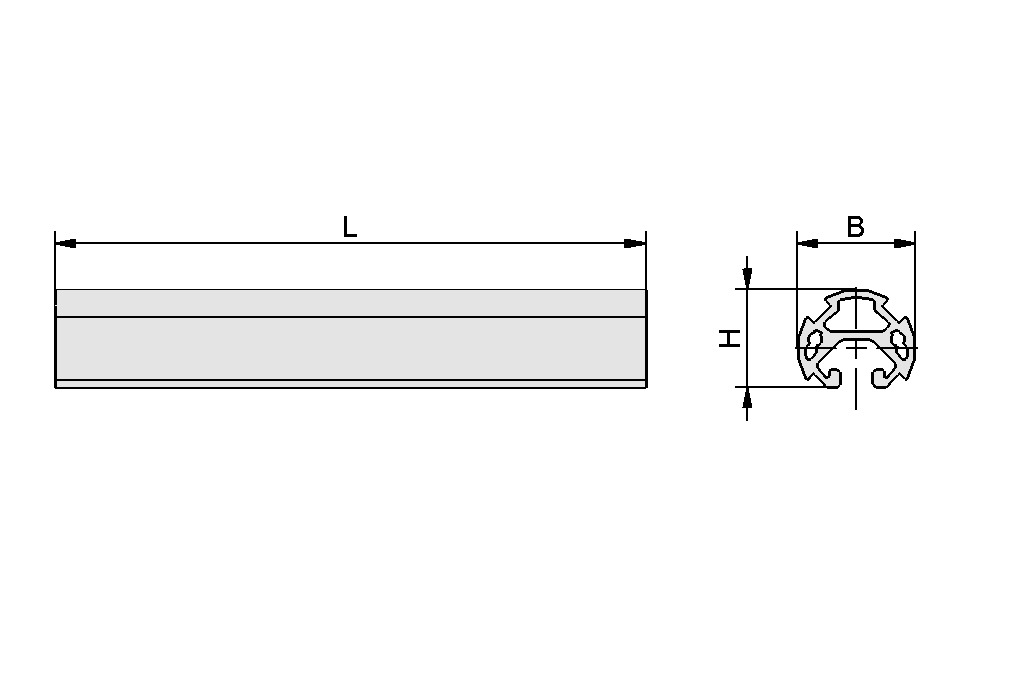

| Length L | 3000 (mm) |
| Width B | 25 (mm) |
| Height H | 30 (mm) |
| Form | with 1 T-slot |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 25 mm |
| d | 3.5 mm |
| H | 30 mm |
| L | 3,000 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Form | with 1 T-slot |
| Weight | 2,236.7 g |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Accessories
HP-HT 2M8 56 HT-A310.07.06.00733Adapter for profile connection of
the tooling holders
| Shape | Universal holder |
| Connection profile | 2x screws M8 |
| Width B | 56 (mm) |
| Utilization design | Holder tooling ball head 28.5 |
HP-SE-U 1M6 12/1810.07.06.00719Holder for sensor
| Connection profile | 1x screw M6 |
| Internal diameter d | 12 (mm) |
| Internal diameter d1 | 18 (mm) |
HP-FST 2M6 35 M18x1.510.07.06.00722Holder for spring plunger
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Thread G | M18x1.5 |
HP-FST 2M6 35 M20x1.510.07.06.00723Holder for spring plunger
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Thread G | M20x1.5 |
HP-SG 2M6 E 35 G1/4-AG10.07.06.00712Holder for suction cup
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Suction cup connection | G1/4"-M |
HP-SG 2M6 E 35 G3/8-AG10.07.06.00715Holder for suction cup
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Suction cup connection | G3/8"-M |
HP-SG 2M6 E 35 G1/4-IG10.07.06.00716Holder for suction cup
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Suction cup connection | G1/4"-F |
HP-SG 2M6 E 35 G3/8-IG10.07.06.00717Holder for suction cup
| Connection profile | 2x screws M6 |
| Width B | 35 (mm) |
| Suction cup connection | G3/8"-F |
