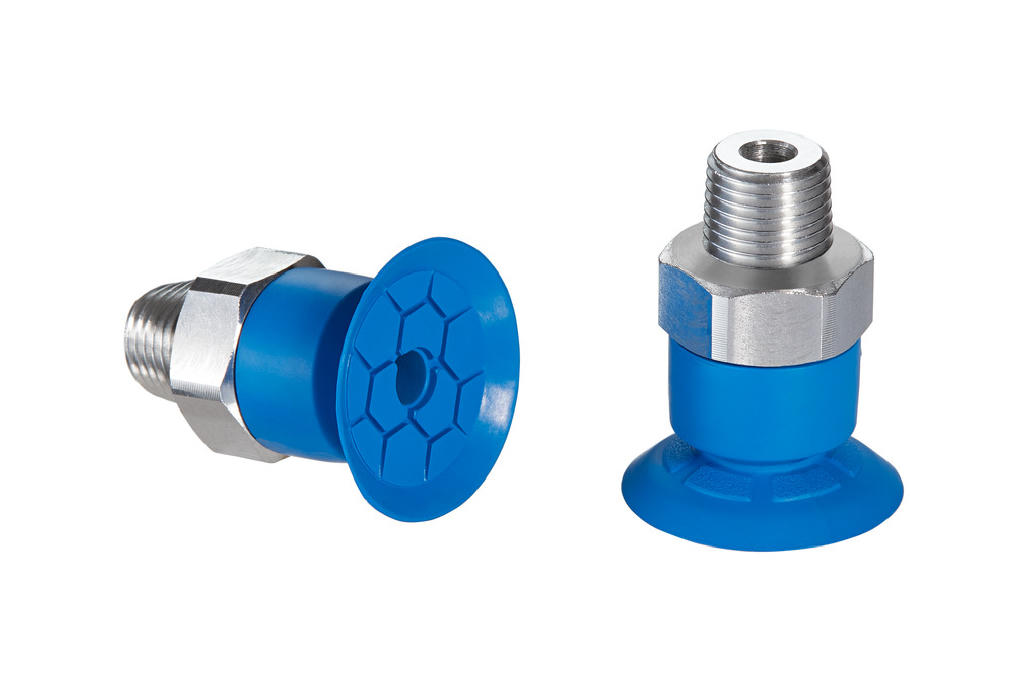

SFF 25 HT1-60 NPT1/8-AG
Part no.: 10.01.01.14978
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 25 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |

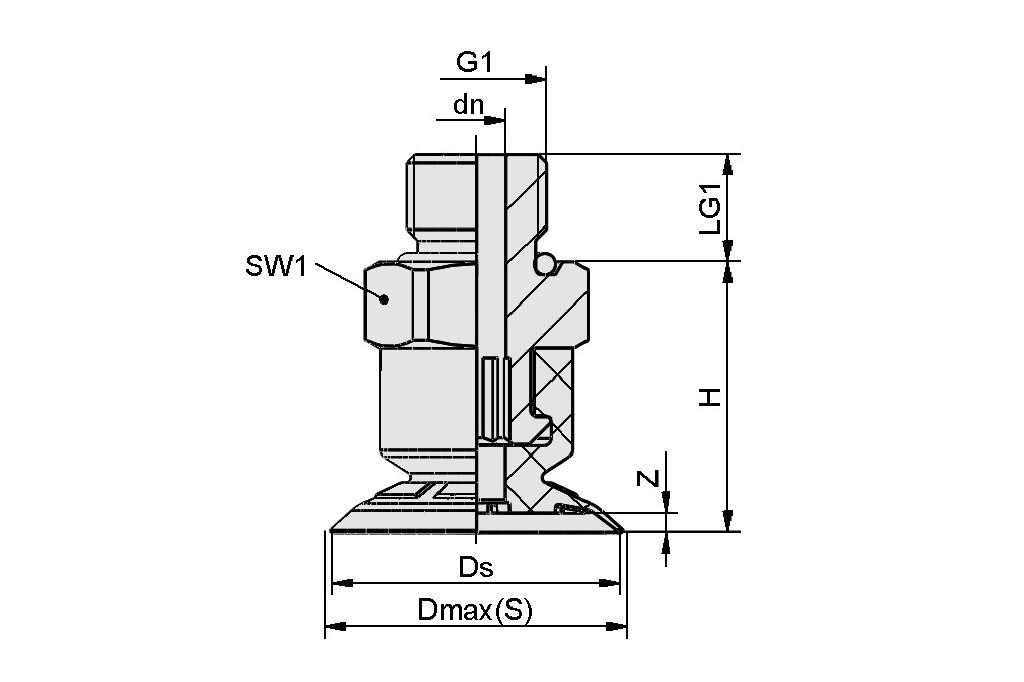

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 26.5 mm |
| Ds | 25 mm |
| dn | 4.1 mm |
| G1 | NPT1/8-AG |
| LG1 | 8.2 mm |
| H | 19.2 mm |
| SW1 | 14 mm |
| Z (Stroke) | 1.7 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pull-off force | 17.9 N |
| Suction force (-600mbar) | 18.5 N |
| Volume | 1.2 cm³ |
| Size | 25 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 6.1 g |
| Product family | SFF |
Documentation
Documentation
Spare parts
SC 040 NPT1/8-AG10.01.06.02541Connection element for suction cup
"SchmalzConnector"
| Connection type | 040 |
| Connection | NPT1/8-M |
| Length L1 | 20.9 (mm) |
| Fitting length | 6 (mm) |
| Nominal diameter dn | 4.1 (mm) |
SFF 25 HT1-60 SC04010.01.01.14053Flat suction cups (round) for the
gentle handling of thin and
flexible workpieces
| Size | 25 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
| Number of folds | 0 |
