SPB4 20 SI-55 NPT1/4-AG
Part no.: 10.01.06.04986
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | NPT1/4"-M |
| Number of folds | 4.5 |
Bellows Suction Cups SPB4 (4.5 Folds)
Suction area (Ø) from 20 mm to 50 mm
Thin, steep sealing lip with flow fins ideal for rigid, bulging pouch packagings
Reinforced main body and folds prevent collapse when suction cup is stretched under vacuum
FDA-compliant silicone SI allows direct food contact
Design
Design
- Bellows suction cup SPB4 (1) with 4.5 folds and soft, flexible sealing lip
- Specially reinforced suction bellows for additional stability
- Mounting via connection element SC (3). Alternatively direct attachment on 3/8”- or 1/2” pipe on the machine side and mounting with a hose clamp (4)
- All mounting elements with male thread include an integrated sealing ring
- Optional clip-in filter as pre-filter (2)
Technical Data
Technical Data
- Diameter: 20 to 50 mm
- Material: SI (use in the food industry)
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 10 from 67 results
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 4.5 |
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G3/8"-M |
| Number of folds | 4.5 |
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/8"-F |
| Number of folds | 4.5 |
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-F |
| Number of folds | 4.5 |
SPB4 20 SI-55 NPT1/4-IG
Part no.: 10.01.06.04987
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | NPT1/4"-F |
| Number of folds | 4.5 |
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G3/8"-F |
| Number of folds | 4.5 |
SPB4 20 SI-55 NPT3/8-IG
Part no.: 10.01.06.05012
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | NPT3/8"-F |
| Number of folds | 4.5 |
SPB4 20 SI-55 NPT3/8-AG
Part no.: 10.01.06.05011
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | NPT3/8"-M |
| Number of folds | 4.5 |

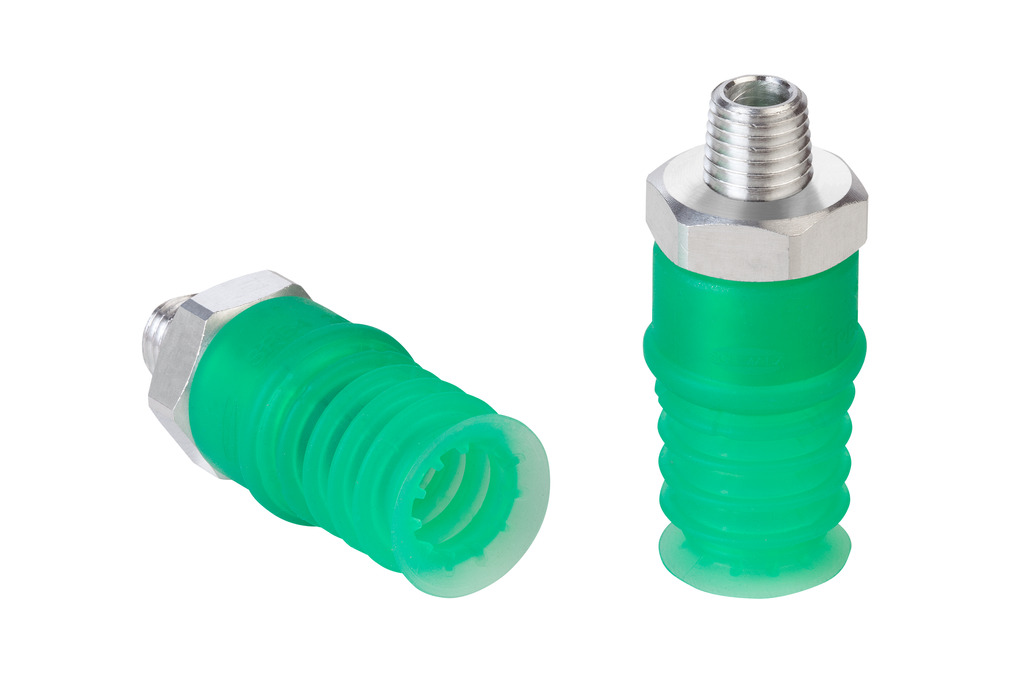

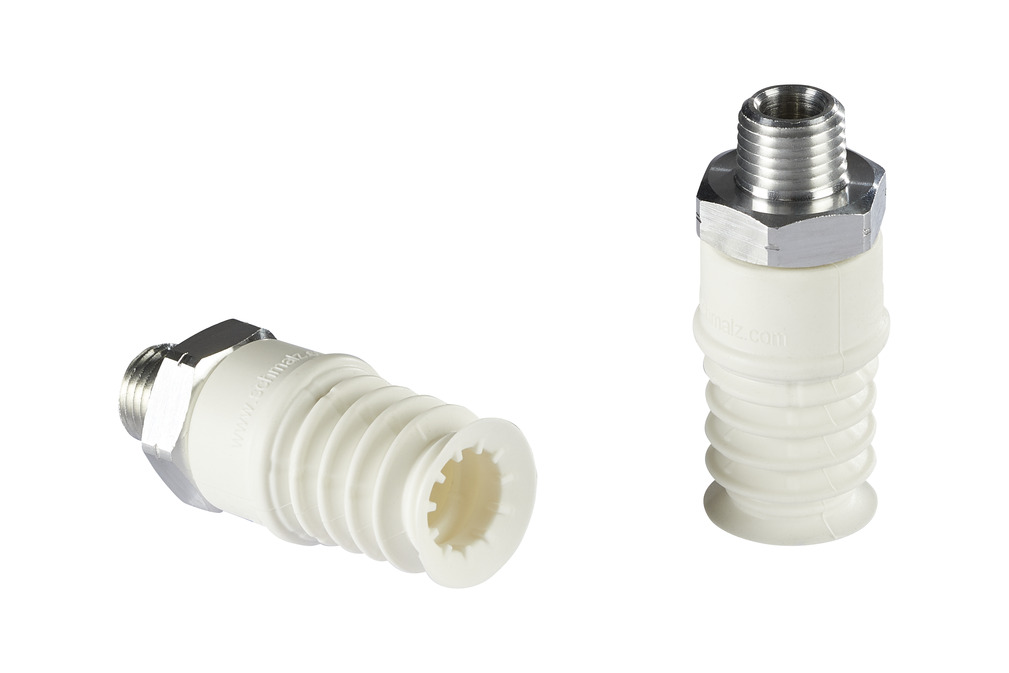

SPB4 20 SI-HD NPT1/4-AG
Part no.: 10.01.06.04988
Bellows suction cup (round) for very uneven workpieces
| Size | 20 |
| Suction cup material | Silicone SI-HD |
| Thread G1 | NPT1/4"-M |
| Number of folds | 4.5 |
