SA-NIP N029 G1/8-AG DN350
Part no.: 10.01.01.00816

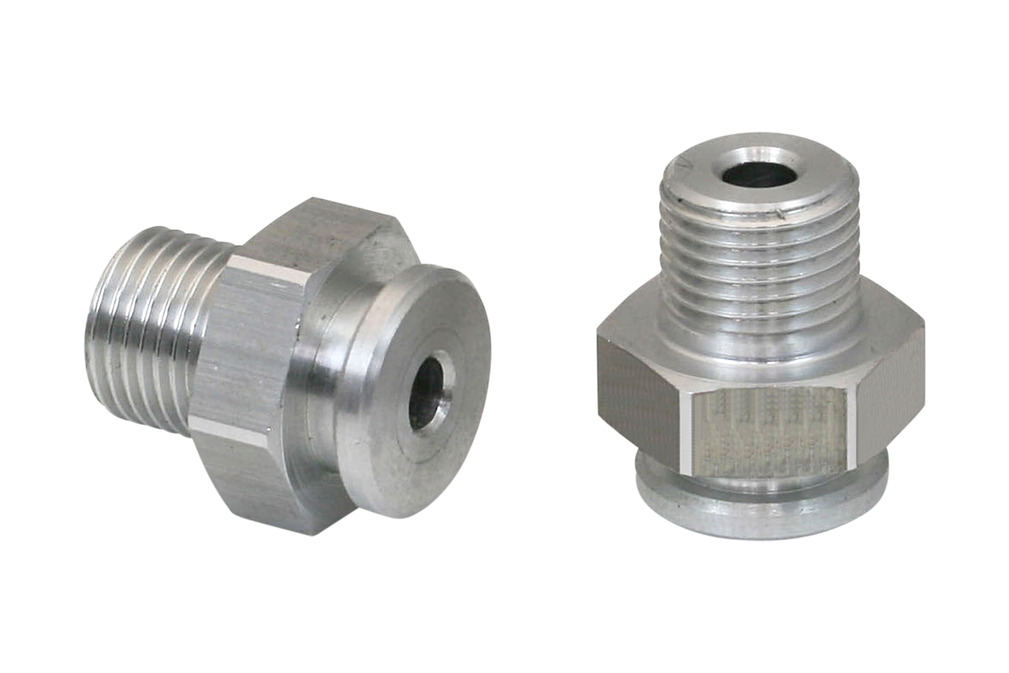

Suction cup connection nipple
| Thread G1 | G1/8"-M |
| Fitting length | 5 (mm) |
| Material | Aluminum |
Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 12.3 mm |
| dn | 3.5 mm |
| D2 | 9.3 mm |
| G1 | G1/8"-M |
| L | 5 mm |
| L2 | 2 mm |
| L1 | 17 mm |
| L3 | 2 mm |
| LG1 | 8 mm |
| SW1 | 14 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nipple family | N 029 |
| Material | Aluminum |
| Weight | 4.3 g |
