ROB-SET ECBPMi ABB
Part no.: 10.03.01.00865
Complete set for connecting and integrating the CobotPump ECBPMi to lightweight robots
| with | |
| for | ABB Robotics |
| Type | GoFa CRB 15000 |
| contains | Suction cup |
| and | Screws |
| Degree of evacuation | 60 (%) |

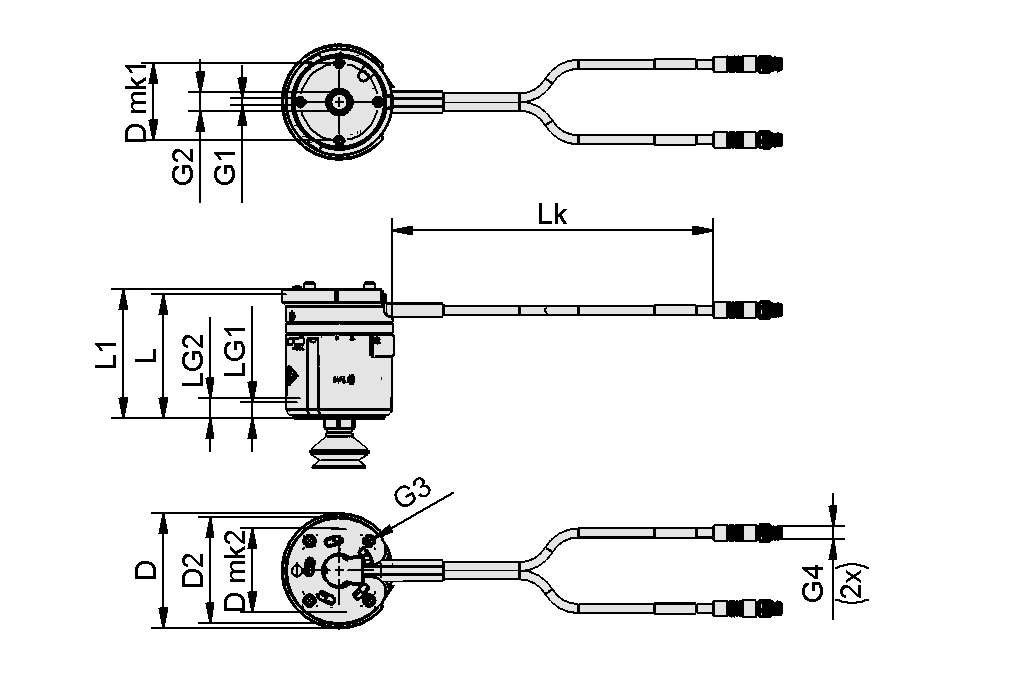

Design Data
Design Data
| Attribute | Value |
|---|---|
| Lk | 310 mm |
| D | 63 mm |
| D2 | 31.5 mm |
| D mk1 | 46 mm |
| D mk2 | 50 mm |
| G1 | M4-F |
| G2 | G1/4"-F |
| G3 | M6-M |
| G4 | M8-M |
| L | 67.4 mm |
| L1 | 73.4 mm |
| LG1 | 6 mm |
| LG2 | 11.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (max.) | 1.6 l/min |
| Degree of evacuation | 60 % |
| Voltage DC | 24 V - DC |
| Rated power | 7.2 W |
| Rated current | 0.3 A |
| Electrical connection | 2xConnect M8, 3+4 pol |
| Operating temperature | 0 ... 40 °C |
| Protection type IP | IP 40 |
| for | ABB Robotics |
| Product family | ROB-SET-ECBPM |
Documentation
Documentation
Software
Software
The matching software for this product is available in this section.
| Documentation | Language |
|---|---|
| English |
Spare parts
ECBPMi 24V-DC FK10.03.01.00500CobotPump (Mini) for electrical
vacuum generation for collaborative
robots
| Voltage DC | 24 V - DC |
| Rated current | 0.3 (A) |
| Electrical connection | Spring contact |
| Operating temperature | 0 ... 40 °C |
| Suction rate (max.) | 1.6 (l/min) |
| Rated power | 7.2 (W) |
SPB1 30 ED-65 G1/4-AG10.01.06.04530Bellows suction cup (round)
for very uneven workpieces
| Size | 30 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 1.5 |
SFF 20 SI-55 G1/4-AG10.01.01.14621Flat suction cup (round) for dynamic
handling of thin and flexible
workpieces
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
Accessories
ASV ABB-C30 M12-8 ST21.04.05.01008Connection distributor
| Length L | 500 (mm) |
| Connection 1 | Male connect M12, 8 pol |
VEE-FE 25.4x81.510.01.36.00130Flange extension
| Outside diameter D | 25.4 (mm) |
| Length L1 | 81.5 (mm) |
| Extension to | 50 (mm) |
VEE-FE 25.4x131.510.01.36.00109Flange extension
| Outside diameter D | 25.4 (mm) |
| Length L1 | 131.5 (mm) |
| Extension to | 100 (mm) |
VEE-FE 25.4x181.510.01.36.00128Flange extension
| Outside diameter D | 25.4 (mm) |
| Length L1 | 181.5 (mm) |
| Extension to | 150 (mm) |
