FMP-i-SW70 442 3R18 O20 V0
Osanro: 10.01.38.06809
Intelligent area gripping system for external vacuum generation and flow resistors
| Length L | 442 (mm) |
| Length L1 | 446 (mm) |
| Width B | 130 (mm) |
| Arrangement | 3R18 |
| Material type | Foam O, Height 20 mm |
| Shape fittings | Pillar straight, Ø 32 |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Max. air consumption blow-off | 800 (l/min) |
| Construction vacuum switch | Normally open |
| Weight | 2.8 (kg) |
| Product family | FMP |
Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| B | 130 mm |
| B3 | 21,6 mm |
| H | 70 mm |
| H1 | 111 mm |
| H2 | 20 mm |
| H3 | 7,7 mm |
| H4 | 5,5 mm |
| H5 | 41 mm |
| L | 442 mm |
| L1 | 446 mm |
| L2 | 402 mm |
| L3 | 80,9 mm |
| Y1 | 90 mm |
| Valve type | SW |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Arrangement | 3R18 |
| Material type | Foam O, Height 20 mm |
| Number of suction cells | 66 |
| Suction force at -250 mbar | 440 N |
| Voltage | 24V - DC |
| with | No vacuum display |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Weight | 2,8 kg |
| Sealing element | Sealing Foam |
| Required suction capacity for pu = -0.25 bar | 300 l/min |
| Product family | FMP |
Dokumentointi
Dokumentointi
Ohjelmisto
Ohjelmisto
Tähän tuotteeseen sopiva ohjelmisto on saatavilla tässä osiossa.
| Dokumentointi | Kieli |
|---|---|
| Englanti |
Varaosat

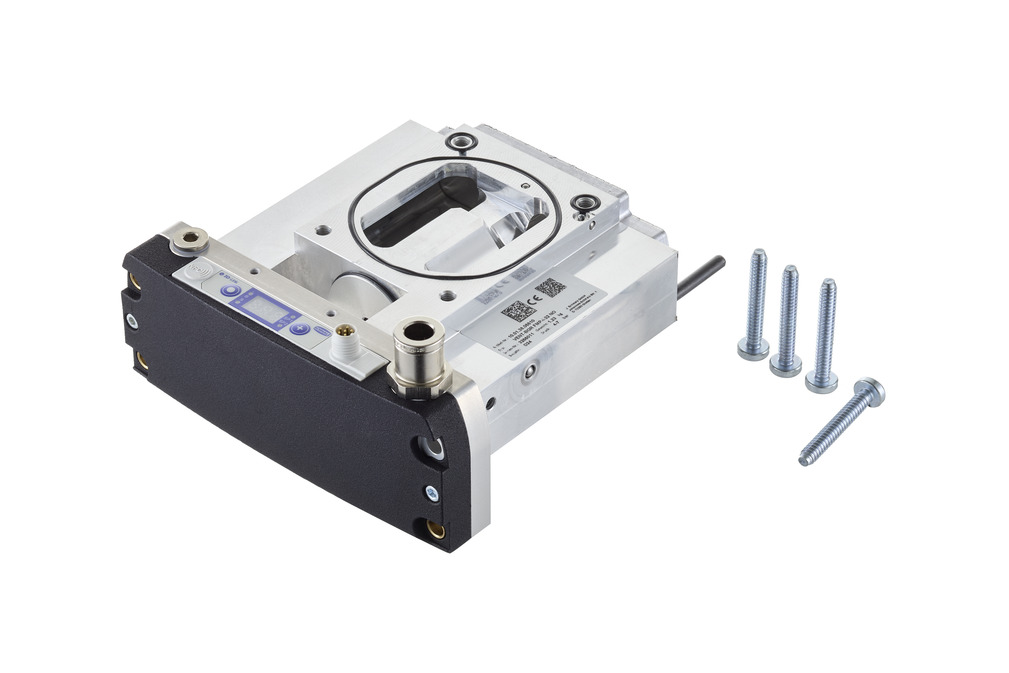

VENT-BGR FMP-i-32 NO10.01.38.06610Building group Solenoid valve
Control of vacuum and compressed air
| Length L | 130 (mm) |
| Width B | 23.9 (mm) |
| Height H | 50 (mm) |
| Measuring range [bar] | bar |
| Control valve | Normally open |
| Valve type | FMP-i |
| Nominal size | 32 (mm) |

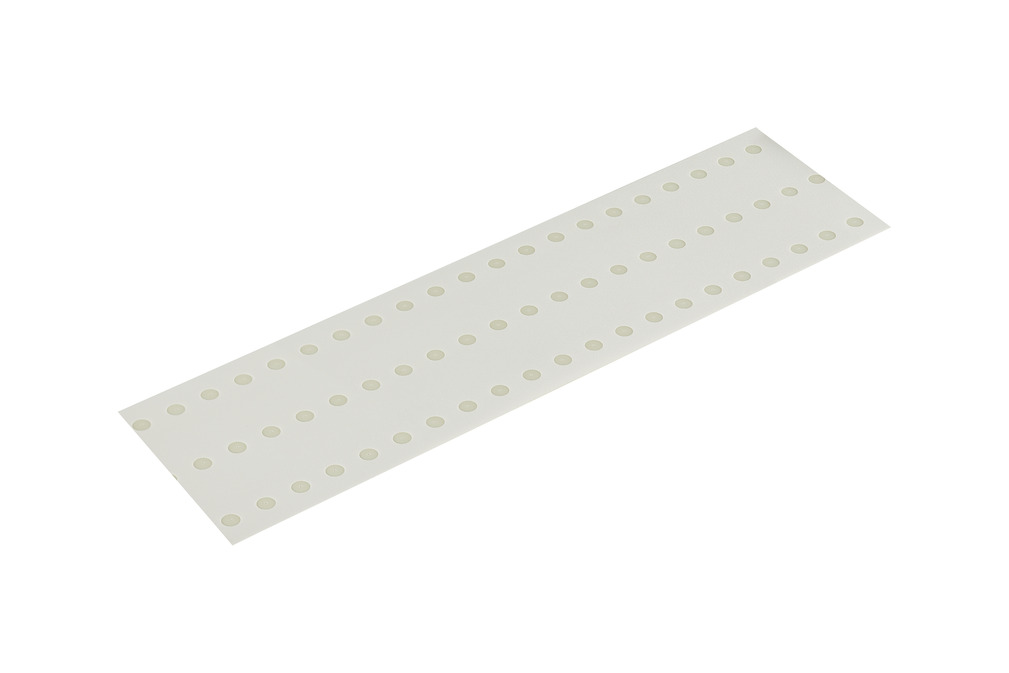

MASK-FOL SW70 402 3R18 FXP-/FMP-i10.01.38.07258Front foil
| Length L | 402 (mm) |
| Width B | 109.8 (mm) |
| Height H | 0.4 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Internal diameter d | 70 (mm) |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-i/FMP-i |
DI-PL 442x128 3R18 LL-20x7 O20 KE10.01.38.07232Sealing plate (FXP/FMP)
| Length L | 442 (mm) |
| Width B | 128 (mm) |
| Height H | 20 (mm) |
| Arrangement suction cells | 3 rows, 18 mm |
| Material type | Foam O, Height 20 mm |
| Additional function area gripper | Adhesive tape on one side |
| Measuring range [bar] | bar |
| Weight | 0.075 (kg) |
Lisätarvikkeet
SET FXP-FMP 4NUTSTEIN G2010.01.21.00243Kiinnityssarja
| contains | 4 sliding blocks |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
VSL 12-9 PU MI-TR10.07.09.00037Hose for vacuum and
compressed-air systems
| Outside diameter D | 12 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 70 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP26.07.03.00002Cover Profile
| Length L | 1450 (mm) |
| Width B | 10 (mm) |
| Height H | 7 (mm) |
| Material | Plastics |
| Color | black |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXP-FMP |
ASK WB-M8-6 2000 K-6P21.04.05.00488Liitäntäkaapeli
| Electrical connection | |
| Cable length | 2000 (mm) |
| Connection 2 | Cable, 6-pole |
| Material hose | PUR cable |
ASK B-M8-6 5000 K-6P21.04.05.00255Liitäntäkaapeli
| Electrical connection | Fem connect M8, 6 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 6-pole |
| Material hose | PUR cable |
ASK WB-M8-6 2000 S-M12-521.04.05.00489Liitäntäkaapeli
| Electrical connection | |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
PE-PR-39x21.3x16.7-FXP-/FMP-i10.01.38.06443Optical prism for 90 ° deflection
| Length L | 39 (mm) |
| Width B | 21.3 (mm) |
| Height H | 16.7 (mm) |
| Hole spacing X1 | 31 (mm) |
| Utilization design | Vacuum area gripping system FXP-i/FMP-i |
SET FXP-FMP10.01.21.02407Kiinnityssarja
| Length L | 232 (mm) |
| Width B | 119 (mm) |
| Height H | 119 (mm) |
| Measuring range [bar] | bar |
| Weight | 1.3 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
FLAN-PL 120x120x10 FXC-FMC10.01.21.00313Flange plate
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Measuring range [bar] | bar |
| Utilization design | Vacuum area gripping system FXC-FMC |
MOD-FLAN 120x120 FXP-FMP10.01.21.00244Laippamoduuli
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Weight | 1.1 (kg) |
| Utilization design | Vacuum area gripping system FXP-FMP |
FST-STARR 25 HD2 G1/2-AG G3/8-IG10.01.10.05806Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 50 HD2 G1/2-AG G3/8-IG10.01.10.05805Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-STARR 75 HD2 G1/2-AG G3/8-IG10.01.10.05803Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FLK G1/2-IG G1/2-AG V10.01.03.00207Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
FLAN-PL 120x85x10 ST FLGR10.01.10.05701Flange plate
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Vacuum area gripping system |
FST-FLEX 25 HD2 G1/2-AG G3/8-IG10.01.10.05695Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 50 HD2 G1/2-AG G3/8-IG10.01.10.05168Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 50 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
FST-FLEX 75 HD2 G1/2-AG G3/8-IG10.01.10.05696Spring plunger with both-way
damping and height compensation,
heavy-duty
| Spring stroke Z | 75 (mm) |
| Shape mounting elements | Heavy duty 2 spring plunger |
| Utilization design | Mounting section |
| Size | 90x90 |
EMVP 25 24V-DC 3/2 NO/NC10.05.02.00151Solenoid valve EMVP for vacuum,
pneumatic pilot control
| Nominal size | 25 (mm) |
| Nenndurchfluss bei 0,1 bar | 90.1 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Optional NO / NC |
| Connection thread | G1"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Weight | 0.52 (kg) |
SET FXC-FMC10.01.21.01291Kiinnityssarja
| Length L | 119 (mm) |
| Width B | 119 (mm) |
| Height H | 9.6 (mm) |
| Measuring range [bar] | bar |
| Thread G1 | G1/2"-F |
| Utilization design | Vacuum area gripping system FXC-FMC |
STF G1-1/4-IG N10.07.01.00008pölysuodatin
| Connection | G1-1/4"-F |
| Shape | Steel housing |
| Nominal flow rate | 96 (m³/h) |
| Filter pore size | 3 (µm) |
VSL 42-32 PU-DS-AS TR10.07.09.00036Hose for vacuum and
compressed-air systems
| Outside diameter D | 42 (mm) |
| Internal diameter d | 32 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 25 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 3.77 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
VTR-SL 3x RST60 2xD3210.01.43.00013Vacuum distributor with
hose connector
| Length L | 439 (mm) |
| Width B | 100 (mm) |
| Height H | 127.5 (mm) |
