Schmalz

Inline Filters VFI

Nominal flow from 32 l/min to 66 l/min
Go directly to the products

Quick and easy to change filter insert; cost saving and environmentally friendly

Efficient maintenance, as the degree of pollution is visible through the transparent housing

Simple, fast hose assembly

Suitable for vacuum and pressure systems; short term overpressure resistance up to 7 bar

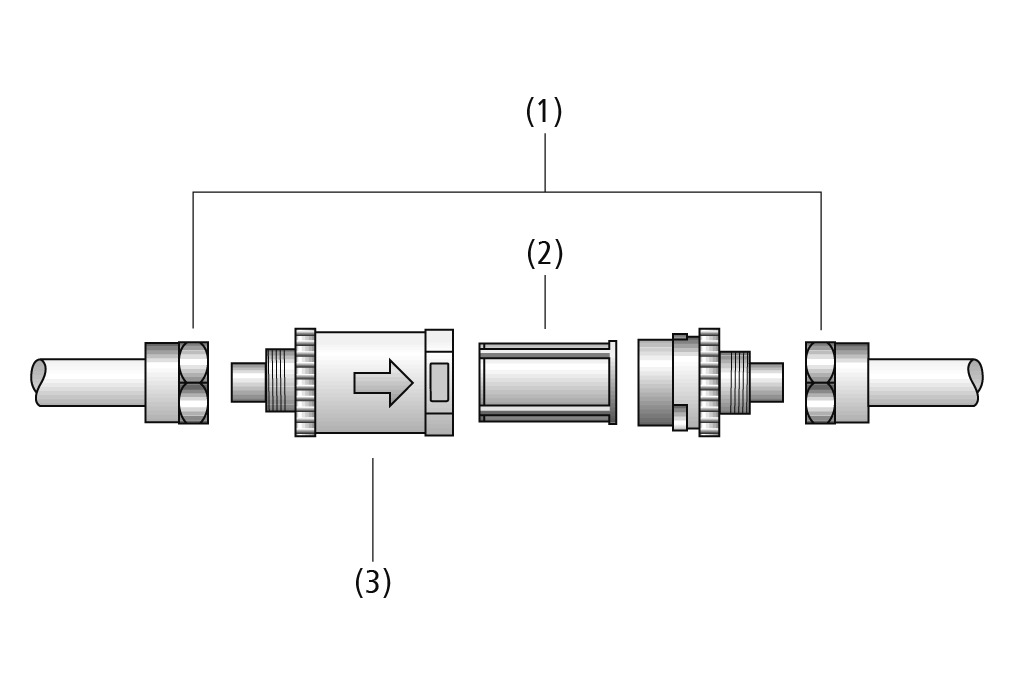

Design
  • Nozzles with union nuts (1) on both ends for connection of hoses (4 and 6 mm); alternatively available with a push-in hose connection
  • Transparent filter housing with arrow for indication of the flow direction (3)
  • Filter element for insertion (2), transparent material for checking the degree of contamination
Technical Data
  • Nominal flow: from 2 to 4 m³/h
  • Pore size: 50 µm
  • Connection: hose 4/2, 6/4 or 8/6
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Croatian

The documentation is also fully available in English.

DocumentsLanguage
English

Filter results

Filter pore size
Nominal flow rate
Product family
Industry sector

1 - 4 from 4 results

VFI CN6/4 50

Part no.: 10.07.01.00241

Vacuum filter with replaceable filter cartridge

ConnectionHose 6/4 with Cap nut
Filter pore size50 (µm)
VFI CN8/6 50

Part no.: 10.07.01.00245

Vacuum filter with replaceable filter cartridge

ConnectionHose 8/6 with Cap nut
Filter pore size50 (µm)
VFI 6/4 50

Part no.: 10.07.01.00328

Vacuum filter with replaceable filter cartridge

ConnectionHose 6/4
Filter pore size50 (µm)
VFI 4/2 50

Part no.: 10.07.01.00329

Vacuum filter with replaceable filter cartridge

ConnectionHose 4/2
Filter pore size50 (µm)
