SEC-400 A2
Part no.: 10.02.01.01620
Powerful ejector for very porous parts
| Suction rate (max.) | 135 (m³/h) |
| Material | Austenitic stainless steel |

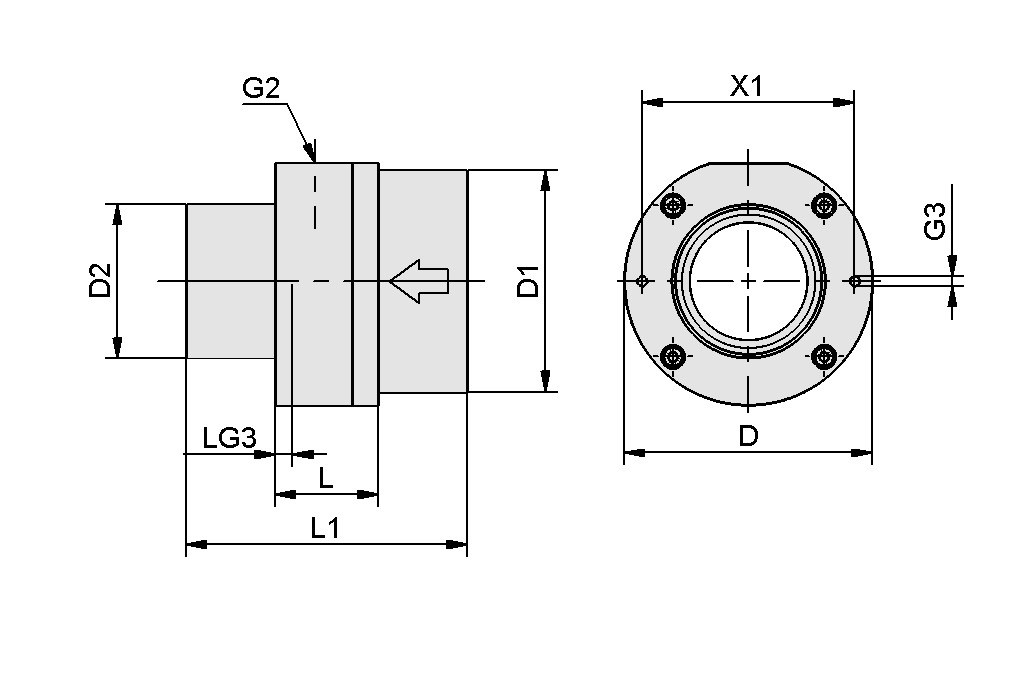

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 84 mm |
| D1 | 75 mm |
| D2 | 52 mm |
| G2 | |
| G3 | M4-F |
| L | 35 mm |
| L1 | 95 mm |
| LG3 | 14 mm |
| X1 | 72 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Max. vacuum | −25 mbar |
| Suction rate (max.) | 2.250 l/min |
| Suction rate (max.) | 135 m³/h |
| Air consumption suction | 500 l/min |
| Air consumption suction | 26,7 m³/h |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Operating temperature | °C |
| Material | Austenitic stainless steel |
| Weight | 1,48 kg |
| Max. vacuum | −0,74 inHg |
| Suction rate (max.) | 79,46 cfm |
| Air consumption suction | 17,66 cfm |
| Pressure range (operating pressure) [bar] | 29.0 ... 87.0 |
| Product family | SEC |
