Wide range of diameters and materials for the most varied workpieces
2.5 folds ensure high suction force and effective damping of sensitive workpieces
Very high suction cup stroke due to soft, flexible folds
Soft, tapered sealing lip adapts optimally to curved surfaces
Support surfaces on the bottom (from diameter 52 mm) prevent permanent deformation of thin-walled workpieces
De bijbehorende documentatie voor dit product is beschikbaar in deze sectie.
| Documenten | Taal |
|---|---|
| Nederlands |
De documentatie is ook volledig beschikbaar in het Engels.
| Documenten | Taal |
|---|---|
| Engels |
1 - 10 van 210 resultaten
Onderdeelnr.: 10.01.06.03711
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-AG |
| Number of folds | 2.5 |
| Vacuum connection | M3-AG |
Onderdeelnr.: 10.01.06.03716
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-AG |
| Number of folds | 2.5 |
| Vacuum connection | M5-AG |
Onderdeelnr.: 10.01.06.03712
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-AG |
| Number of folds | 2.5 |
| Vacuum connection | M3-AG |
Onderdeelnr.: 10.01.06.03717
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-AG |
| Number of folds | 2.5 |
| Vacuum connection | M5-AG |
Onderdeelnr.: 10.01.06.03714
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Nitrile rubber NBR-conductive |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-AG |
| Number of folds | 2.5 |
| Vacuum connection | M3-AG |
Onderdeelnr.: 10.01.06.03719
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Nitrile rubber NBR-conductive |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-AG |
| Number of folds | 2.5 |
| Vacuum connection | M5-AG |

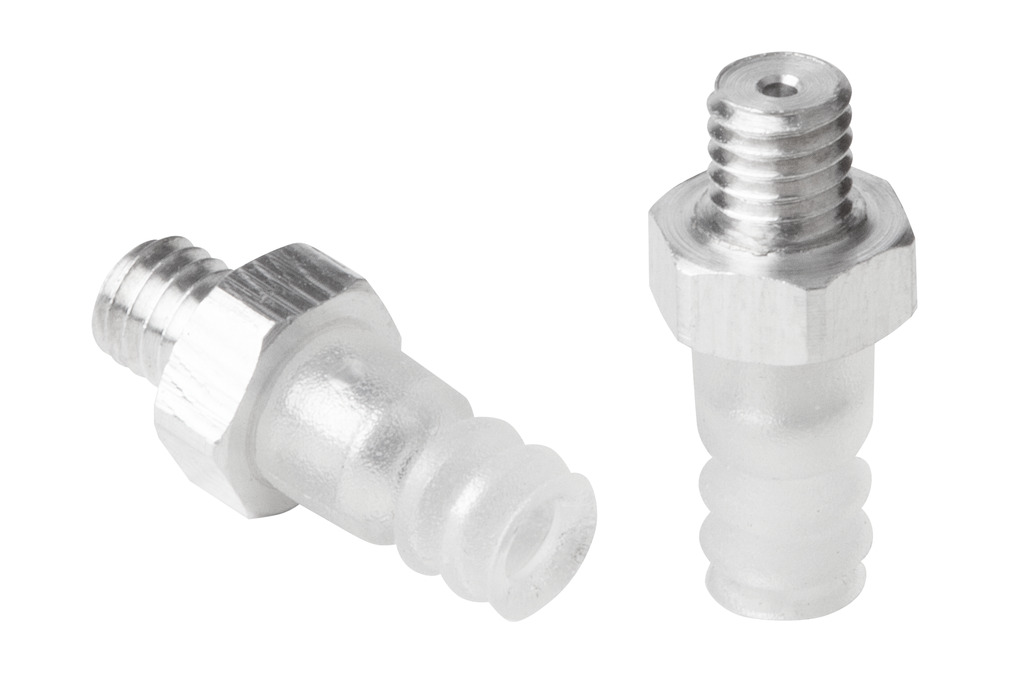

Onderdeelnr.: 10.01.06.03713
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | M3-AG |
| Number of folds | 2.5 |
| Vacuum connection | M3-AG |

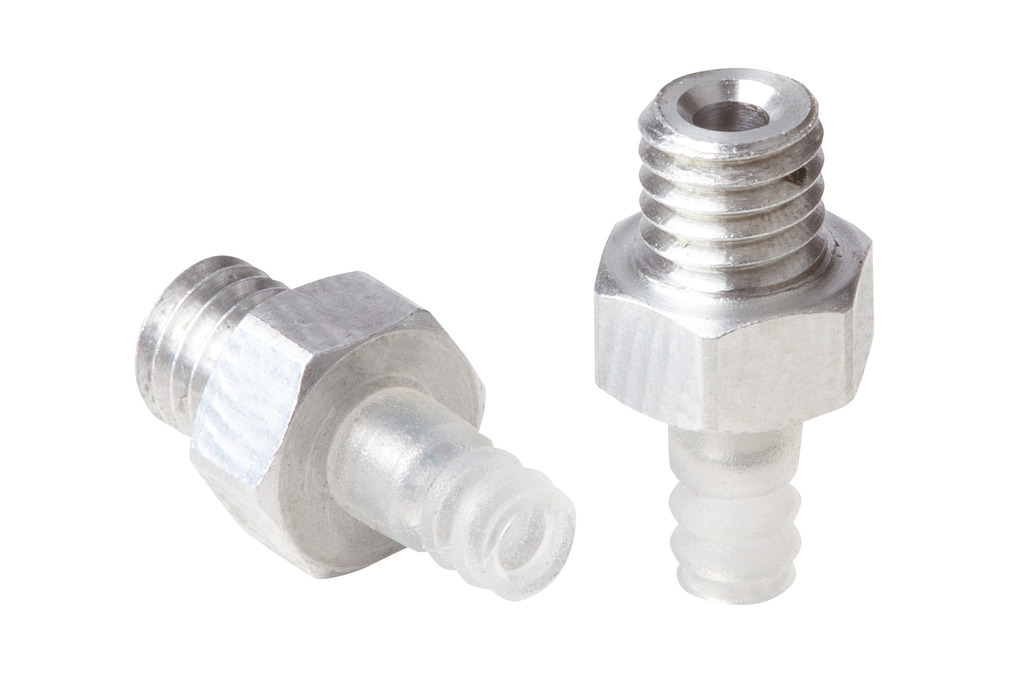

Onderdeelnr.: 10.01.06.03718
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | M5-AG |
| Number of folds | 2.5 |
| Vacuum connection | M5-AG |

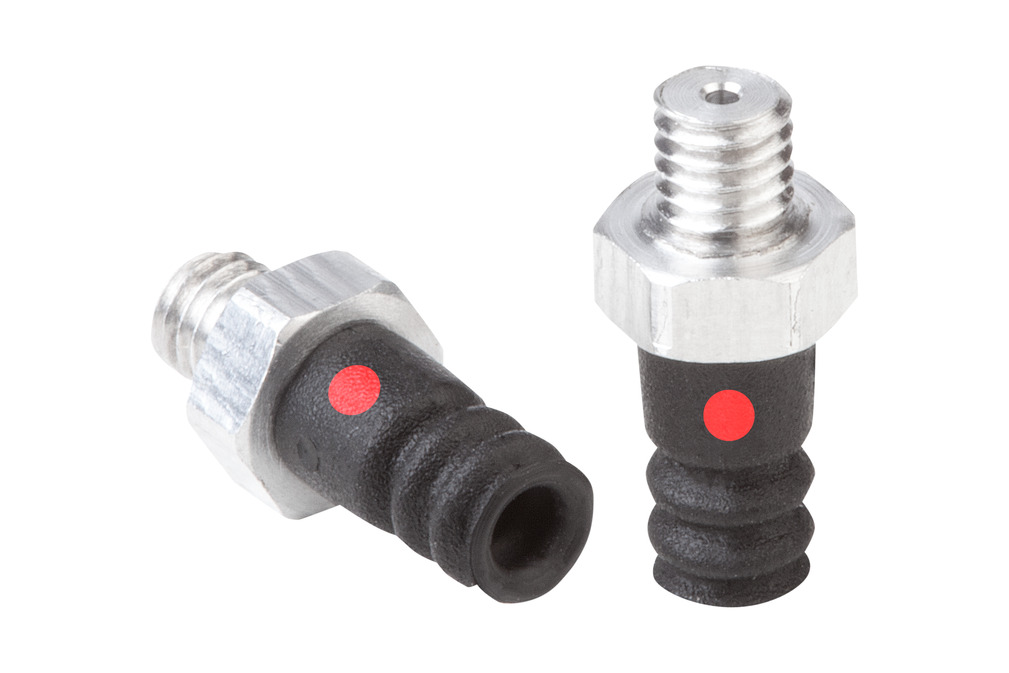

Onderdeelnr.: 10.01.06.03715
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Silicone SI conductive |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-AG |
| Number of folds | 2.5 |
| Vacuum connection | M3-AG |

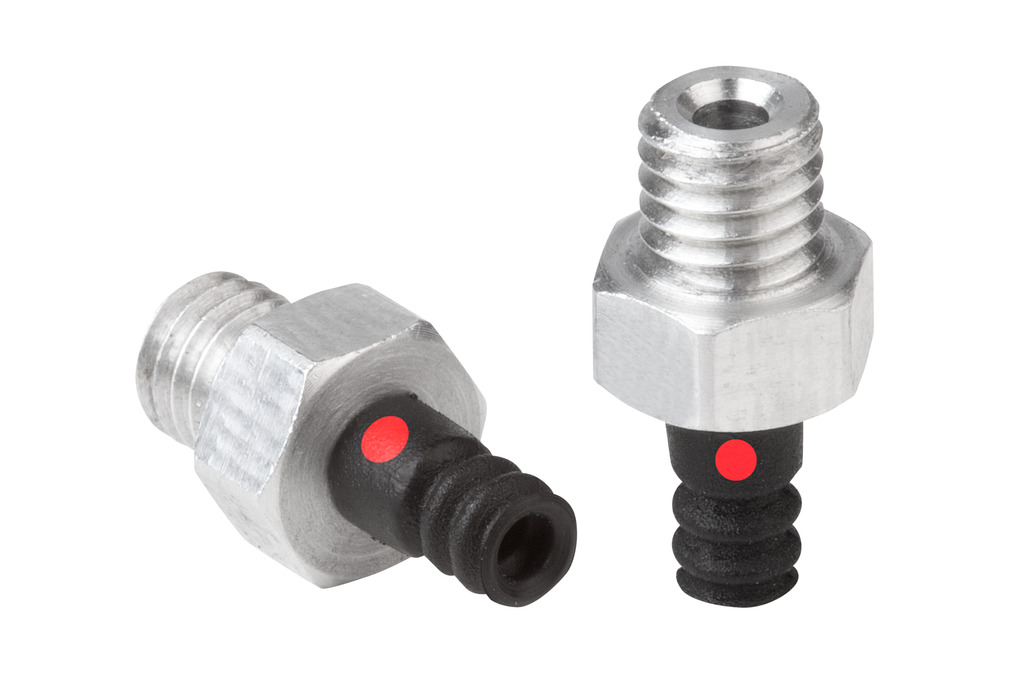

Onderdeelnr.: 10.01.06.03720
Balg-vacuümgrijper (rond) voor bijzonder oneffen werkstukken
| Size | 3 |
| Suction cup material | Silicone SI conductive |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-AG |
| Number of folds | 2.5 |
| Vacuum connection | M5-AG |
