FSG 12 SI-MD-55 G1/8-AG
Część nr.: 10.01.06.05707
Bellows suction cup (round) for very uneven workpieces
| Size | 12 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | G1/8"-M |
| Number of folds | 2.5 |

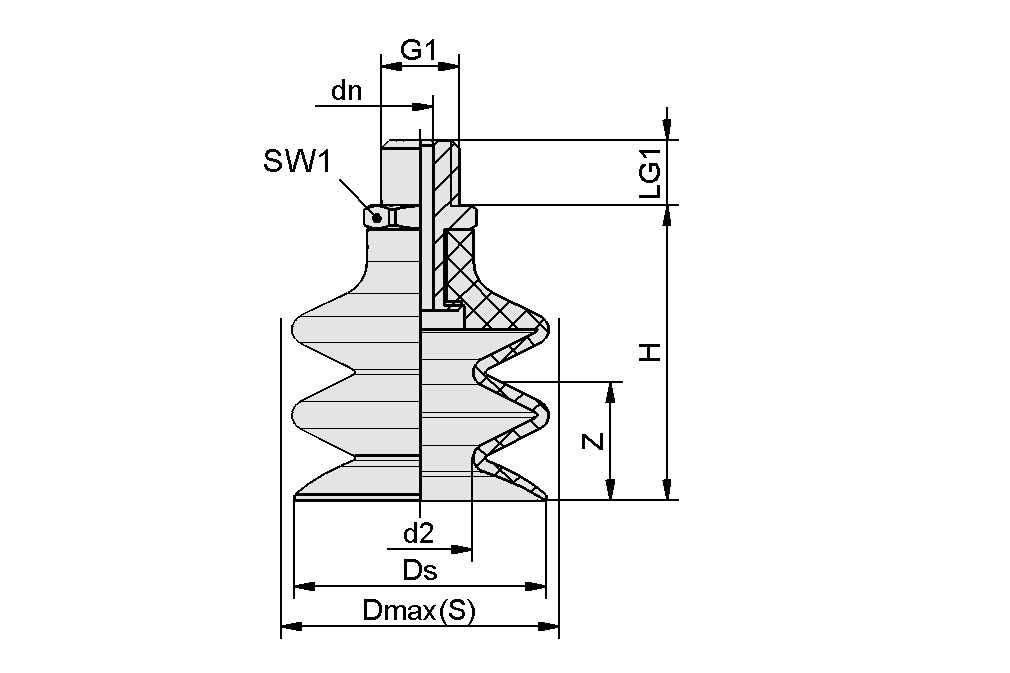

Dane projektowe
Dane projektowe
| Atrybut | Wartość |
|---|---|
| d2 | 5 mm |
| Dmax(S) | 13 mm |
| dn | 3,5 mm |
| Ds | 12 mm |
| G1 | G1/8"-M |
| H | 27 mm |
| LG1 | 7,5 mm |
| SW1 | 14 mm |
| Z (Stroke) | 7 mm |
Dane techniczne
Dane techniczne
| Atrybut | Wartość |
|---|---|
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 Shore A |
| Size | 12 |
| Number of folds | 2,5 |
| Connection | G1/8-AG |
| Workpiece radius min. (convex) | 12,5 mm |
| Volume | 0,6 cm³ |
| Suction force (-600mbar) | 1,18 N |
| Pull-off force | 3,5 N |
| Hose inner diameter (recom.) d | 4 mm |
| Weight | 4,9 g |
| Product family | FSG |
Dane CAD
Dane CAD
Łatwy w użyciu model CAD na żywo
Po kliknięciu przycisku pobierania można pobrać model CAD w różnych formatach plików. Jeśli podgląd nie jest wyświetlany poprawnie na tej stronie, kliknij przycisk "Przeładuj".
Dokumentacja
Dokumentacja
Części zamienne
FG 12 SI-MD-55 N01610.01.06.04134Bellows suction cup (round)
for very uneven workpieces
| Size | 12 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Number of folds | 2.5 |
SA-NIP N016 G1/8-AG DN35010.01.06.05735+Zuigeraansluitnippel
SA-NIP N016 G1/8-AG DN350
N016, SW14x20
| Nipple family | N 016 |
| Thread G1 | G1/8"-M |
| Length L1 | 20 (mm) |
| Fitting length | 6 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
